RT0W71419 Series

Catalog

RECEPTACLE, JAM NUT, 19 POSITION, MALE, SHELL SIZE 14, AND END CAP WITH INDIVIDUAL WIRE SEALING /BAG ROHS COMPLIANT: YES

Part	Mounting Type	Mounting Feature	Connector Type	Contact Type	Number of Positions	Material Flammability Rating	Shell Material	Contact Size	Ingress Protection Description	Ingress Protection IP Rating	Note	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Insert Material	Includes Total Count	Includes	Operating Temperature (Min)	Operating Temperature (Max)	Contact Shape	Fastening Type	Shielding	Shell Finish	Features	Housing Color	Orientation	Type	Primary Material	Color	Contact Finish - Mating	Termination	Voltage Rating	Voltage Rating (Type)	Current Rating	Contact Finish Thickness - Mating
McGill Microwave Systems RT0W71419PNHEC	Panel Mount	Bulkhead Front Side Nut	Receptacle Housing	Crimp	19	UL94 V-0	Zinc Alloy	20	Dust Tight Waterproof	IP67	Contacts Not Included	19	14 S	Thermoplastic	3 pcs	Connector Nut O-Ring	-40 °C	105 °C	Circular	Bayonet Lock	Shielded	Nickel	Backshell	Silver	N (Normal)	For Male Pins

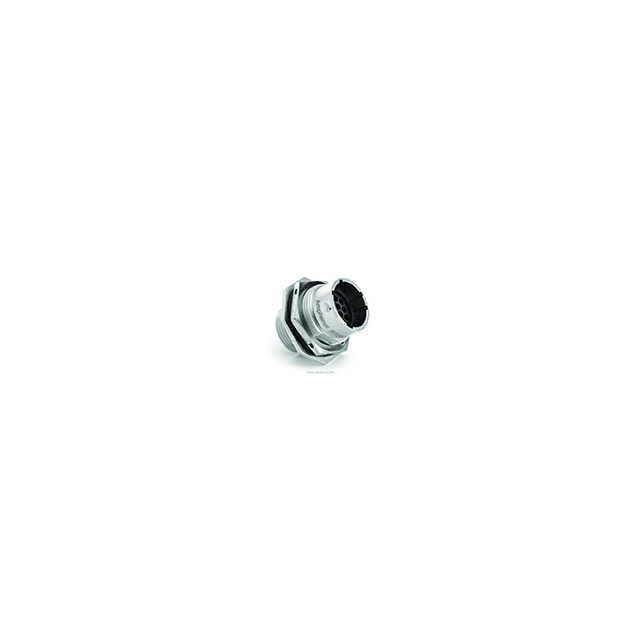

McGill Microwave Systems RT0W71419PNH03	Panel Mount	Bulkhead Front Side Nut	Receptacle Housing	Crimp	19	UL94 V-0	Zinc Alloy	20	Dust Tight Waterproof	IP67	Contacts Not Included	19	14 S	Thermoplastic	4 pcs	Connector Gasket Nut O-Ring	-40 °C	125 °C	Circular	Bayonet Lock	Shielded	Nickel		Silver	N (Normal)	For Male Pins
McGill Microwave Systems RT0W71419PNHEC03	Free Hanging (In-Line) Panel Mount	Bulkhead Front Side Nut	Receptacle Housing	Crimp	19	UL94 V-0	Zinc Alloy	20	Dust Tight Waterproof	IP67		19	14 S							Bayonet Lock	Unshielded	Nickel	Backshell	Silver	N (Normal)	For Male Pins	Metal

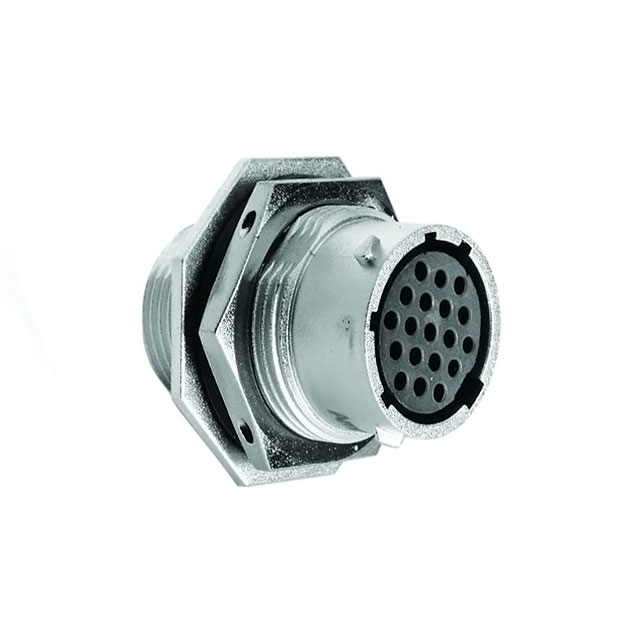

McGill Microwave Systems RT0W71419SNH	Panel Mount	Bulkhead Front Side Nut	Receptacle Housing	Crimp	19	UL94 V-0	Zinc Alloy	20	Dust Tight Waterproof	IP67	Contacts Not Included	19	14 S	Thermoplastic			-40 °C	105 °C	Circular	Bayonet Lock	Shielded	Nickel		Silver	N (Normal)	For Female Sockets

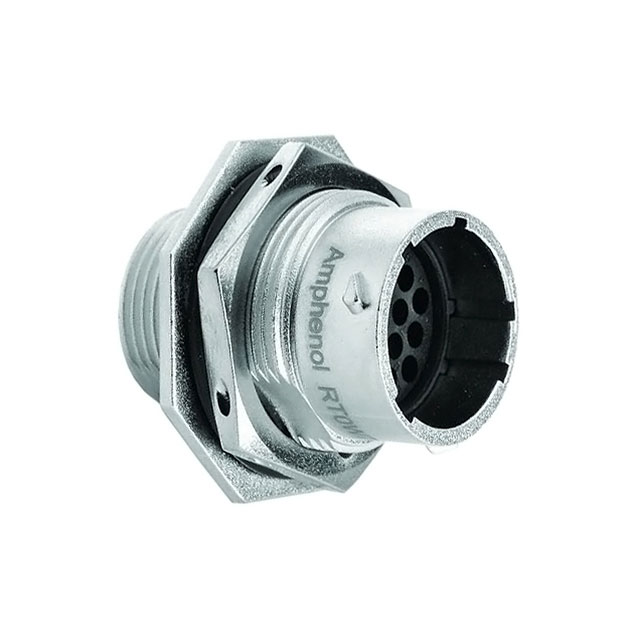

McGill Microwave Systems RT0W71419PNH	Panel Mount	Bulkhead Front Side Nut	Receptacle Housing	Crimp	19	UL94 V-0	Zinc Alloy	20	Dust Tight Waterproof	IP67	Contacts Not Included	19	14 S	Thermoplastic			-40 °C	105 °C	Circular	Bayonet Lock	Shielded	Nickel		Silver	N (Normal)	For Male Pins

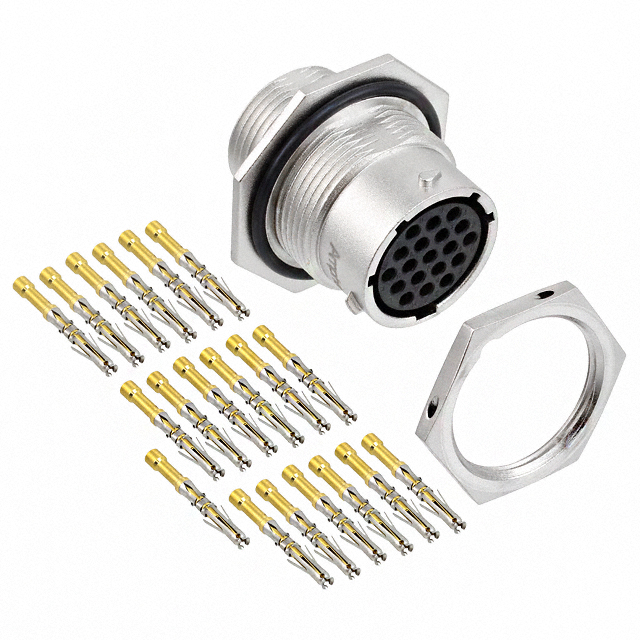

McGill Microwave Systems RT0W71419SNH-K	Panel Mount	Bulkhead Front Side Nut	Female Sockets Receptacle		19		Zinc Die Cast		Dust Tight Waterproof	IP67		19	14 S				-40 °C	105 °C		Bayonet Lock		Nickel			N (Normal)		Metal	Silver	Gold	Crimp	150 VDC	DC	7.5 A	Flash
