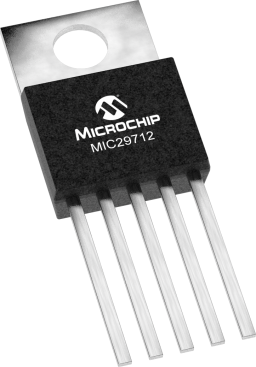

MIC29712 Series

7.5A LDO Adj. + Shutdown

Catalog

7.5A LDO Adj. + Shutdown

Part	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type	Voltage - Output (Min)	Voltage - Output (Max)	Applications	Number of Outputs	Package / Case	Voltage - Input (Maximum)	Voltage - Input (Minimum)	Package Name

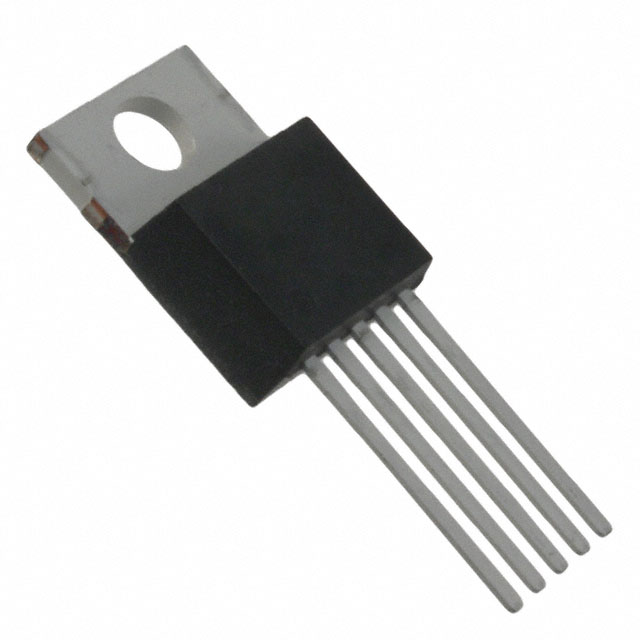

Microchip Technology MIC29712WT	125 °C	0 °C	Through Hole	1.25 V	16 V	Converter Intel Pentium® Plus	1	TO-220-5	16 V	2.25 V	TO-220-5
Microchip Technology MIC29712BT	125 °C	0 °C	Through Hole	1.25 V	16 V	Converter Intel Pentium® Plus	1	TO-220-5	16 V	2.25 V	TO-220-5

Catalog

7.5A LDO Adj. + Shutdown

Description

The MIC29710 and MIC29712 are high-current, high-accuracy, low-dropout voltage regulators featuring fast transient recovery from input voltage surges and output load current changes. These regulators use a PNP pass element that features proprietary Super βeta PNP® process. The MIC29710/2 is available in two versions: the 3-pin fixed output MIC29710 and the 5-pin adjustable output voltage MIC29712. All versions are fully protected against overcurrent faults, reversed lead insertion, over-temperature operation, and positive and negative transient voltage spikes. A TTL-compatible enable (EN) control pin supports external on/off control. If on/off control is not required, the device may be continuously enabled by connecting EN to IN. The MIC29710/2 is available in the standard 3- and 5-pin TO-220 package with an operating junction temperature range of 0°C to +125°C. For applications requiring even lower dropout voltage or input voltage greater than 16V, see the MIC29750/29752.
