ADG201HS Series

LC2MOS ± 15 V High Speed, Quad SPST Switch

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

LC2MOS ± 15 V High Speed, Quad SPST Switch

Part	Mounting Type	Voltage - Supply, Single (V+) (Minimum)	Voltage - Supply, Single (V+) (Maximum)	Channel Capacitance (CS(off))	Channel Capacitance (CD(off))	Current - Leakage (Max)	Demultiplexer Outputs	Multiplexer Inputs	Switch Time Toff (Max)	Switch Time Ton (Max)	Operating Temperature (Max)	Operating Temperature (Min)	Channel-to-Channel Matching (ΔRon)	Package Width	Package Name	Package Length	Charge Injection	On-State Resistance (Max)	Voltage - Supply, Dual (Maximum)	Voltage - Supply, Dual (Nominal)	Voltage - Supply, Dual (Minimum)	Switch Contact	Switch Circuit Type	Number of Circuits	Crosstalk	Package / Case
Analog Devices Inc./Maxim Integrated ADG201HSKRZ-REEL	Surface Mount	10.8 V	16.5 V	10 pF	10 pF	1 nA	1	1	50 ns	50 ns	85 °C	-40 °C	1.5 Ohm	3.9 mm	16-SOIC	0.154 in	10 pC	50 Ohms	16.5 V	13.5 V	-13.5 V	NC	SPST	4	-86 dB
Analog Devices Inc./Maxim Integrated ADG201HSTCHIPS	Surface Mount	10.8 V	16.5 V	10 pF	10 pF	1 nA	1	1	50 ns	50 ns	125 °C	-55 °C	1.5 Ohm		Die		10 pC	50 Ohms	16.5 V	13.5 V	-13.5 V	NO	SPST	4	-86 dB	Die
Analog Devices Inc./Maxim Integrated ADG201HSKRZ	Surface Mount	10.8 V	16.5 V	10 pF	10 pF	1 nA	1	1	50 ns	50 ns	85 °C	-40 °C	1.5 Ohm	3.9 mm	16-SOIC	0.154 in	10 pC	50 Ohms	16.5 V	13.5 V	-13.5 V	NC	SPST	4	-86 dB

Catalog

LC2MOS ± 15 V High Speed, Quad SPST Switch

Description

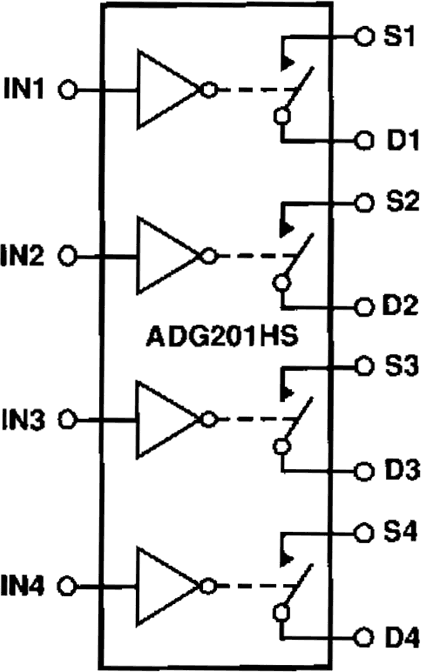

The ADG201HS is a monolithic CMOS device comprising four independently selectable SPST switches. It is designed on an enhanced LC2MOS process which gives very fast switching speeds and low RON.The switches also feature break-before-make switching action for use in multiplexer applications and low charge injection for minimum transients on the output when switching the digital inputs.PRODUCT HIGHLIGHTS50ns max tONand tOFF:The ADG201HS top grades (K, B, T) have guaranteed 50ns max turn-on and turn-off times over the full operating temperature range. The lower grades (J,A,S) have guaranteed 75ns switching times over the full operating temperature range.Single Supply Specifications:The ADG201HS is fully specified for applications which require a single positive power supply in the + 10.8V to +16.5V range.Low Leakage:Leakage currents in the range of 100pA make these switches suitable for high precision circuits. The added feature of break-before-make allows for multiple outputs to be tied together for multiplexer applications while keeping leakage errors to a minimum.
