XCR3064 Series

Catalog

IC CPLD 64MC 7NS 56CSBGA

Part	Number of Gates	Package / Case	Number of I/O	Voltage Supply - Internal (Minimum)	Voltage Supply - Internal (Maximum)	Package Name	Package Width	Package Length	Delay Time tpd(1) Max	Mounting Type	Program/Erase Cycles (Minimum)	Programmable Type	Number of Logic Elements/Blocks	Operating Temperature (Max)	Operating Temperature (Min)	Number of Macrocells

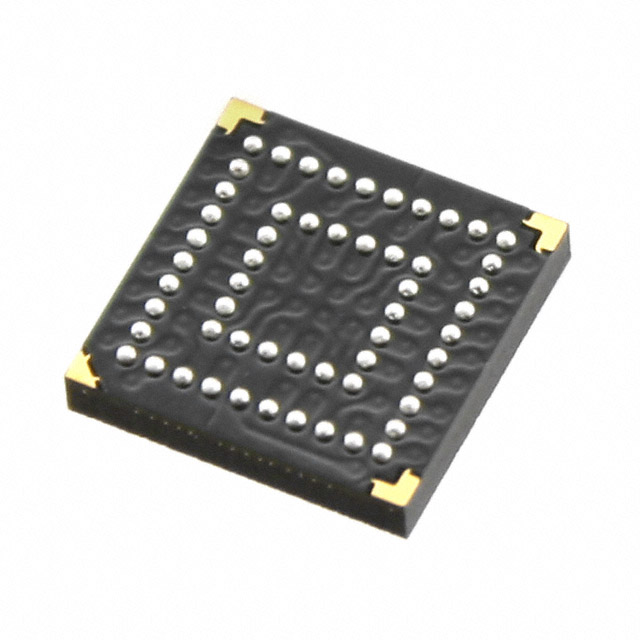

AMD / Xilinx XCR3064XL-7CP56I	1500	56-LFBGA CSPBGA	48	2.7 V	3.6 V	56-CSBGA	6 mm	6 mm	7 ns	Surface Mount	1 K cycles	In System Programmable	4	85 °C	-40 °C	64

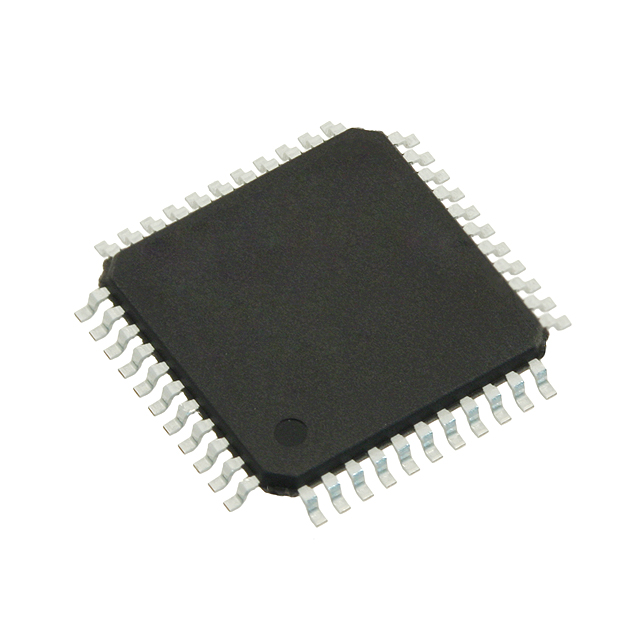

AMD / Xilinx XCR3064XL-10VQ44I	1500	44-TQFP	36	2.7 V	3.6 V	44-VQFP	10 mm	10 mm	9.1 ns	Surface Mount	1 K cycles	In System Programmable	4	85 °C	-40 °C	64
AMD / Xilinx XCR3064XL-6VQ44C	1500	44-TQFP	36	3 V	3.6 V	44-VQFP	10 mm	10 mm	5.5 ns	Surface Mount	1 K cycles	In System Programmable	4	70 °C	0 °C	64

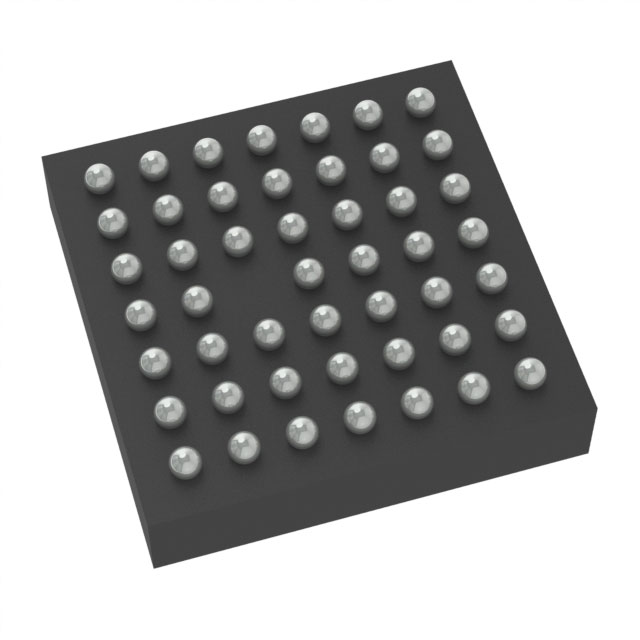

AMD / Xilinx XCR3064XL-7CS48C	1500	48-FBGA CSPBGA	40	3 V	3.6 V	48-CSBGA	7 mm	7 mm	7 ns	Surface Mount	1 K cycles	In System Programmable	4	70 °C	0 °C	64
AMD / Xilinx XCR3064XL-10VQG100C	1500	100-TQFP	68	3 V	3.6 V	100-VQFP	14 mm	14 mm	9.1 ns	Surface Mount	1 K cycles	In System Programmable	4	70 °C	0 °C	64
AMD / Xilinx XCR3064XL-6VQG44C	1500	44-TQFP	36	3 V	3.6 V	44-VQFP	10 mm	10 mm	5.5 ns	Surface Mount	1 K cycles	In System Programmable	4	70 °C	0 °C	64
AMD / Xilinx XCR3064XL-7CSG48C	1500	48-FBGA CSPBGA	40	3 V	3.6 V	48-CSBGA	7 mm	7 mm	7 ns	Surface Mount	1 K cycles	In System Programmable	4	70 °C	0 °C	64
AMD / Xilinx XCR3064XL-7VQ44I	1500	44-TQFP	36	2.7 V	3.6 V	44-VQFP	10 mm	10 mm	7 ns	Surface Mount	1 K cycles	In System Programmable	4	85 °C	-40 °C	64
AMD / Xilinx XCR3064XL-10VQ100I	1500	100-TQFP	68	2.7 V	3.6 V	100-VQFP	14 mm	14 mm	9.1 ns	Surface Mount	1 K cycles	In System Programmable	4	85 °C	-40 °C	64
AMD / Xilinx XCR3064XL-10VQG44C	1500	44-TQFP	36	3 V	3.6 V	44-VQFP	10 mm	10 mm	9.1 ns	Surface Mount	1 K cycles	In System Programmable	4	70 °C	0 °C	64
