487545 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

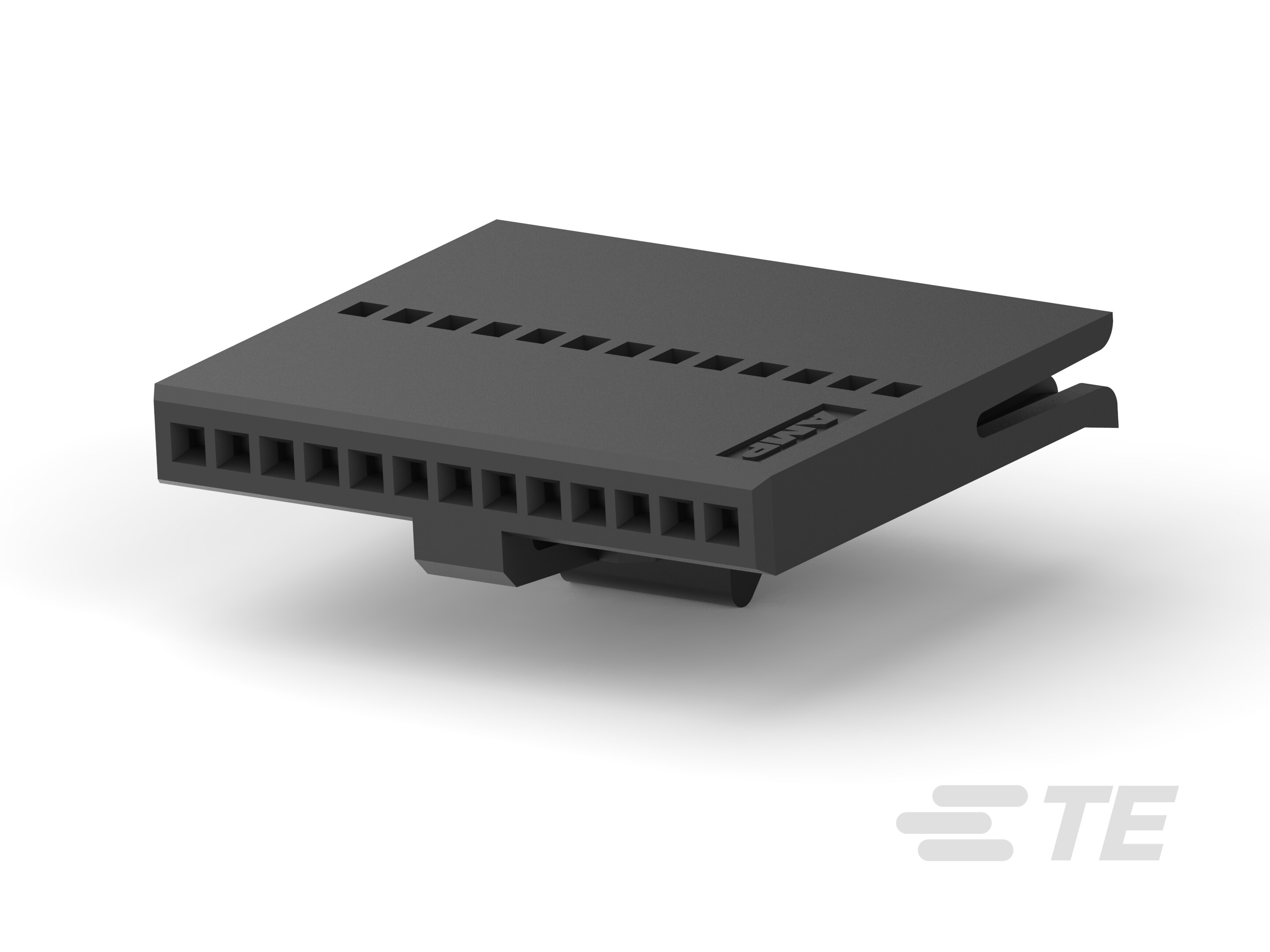

CONN FFC RCPT HSG 15POS 1.27MM
| Part | FFC, FCB Thickness (Min) | FFC, FCB Thickness (Max) | Pitch | Number of Rows | Material Flammability Rating | Locking Feature | Voltage Rating | Housing Material | Connector Type | Number of Positions | Operating Temperature (Min) | Operating Temperature (Max) | Flat Flex Type | Note | Current Rating | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 0.05 mm | 0.08 mm | 0.05 in | 1 | UL94 V-0 | Latch Lock | 100 VAC | Polyester | Housing for Female Contacts | 15 | -55 °C | 105 °C | FFC | Contacts Not Included | 1.5 A | Black |
 TE Connectivity AMP Connectors | 0.05 mm | 0.08 mm | 0.05 in | 1 | UL94 V-0 | Latch Lock | 100 VAC | Polyester | Housing for Female Contacts | 7 | -55 °C | 105 °C | FFC | Contacts Not Included | 1.5 A | Black |
 TE Connectivity AMP Connectors | 0.05 mm | 0.08 mm | 0.05 in | 1 | UL94 V-0 | Latch Lock | 100 VAC | Polyester | Housing for Female Contacts | 30 | -55 °C | 105 °C | FFC | Contacts Not Included | 1.5 A | Black |
 TE Connectivity AMP Connectors | 0.05 mm | 0.08 mm | 0.05 in | 1 | UL94 V-0 | Latch Lock | 100 VAC | Polyester | Housing for Female Contacts | 5 | -55 °C | 105 °C | FFC | Contacts Not Included | 1.5 A | Black |
 TE Connectivity AMP Connectors | 0.05 mm | 0.08 mm | 0.05 in | 1 | UL94 V-0 | Latch Lock | 100 VAC | Polyester | Housing for Female Contacts | 40 | -55 °C | 105 °C | FFC | Contacts Not Included | 1.5 A | Black |
 TE Connectivity AMP Connectors | 0.05 mm | 0.08 mm | 0.05 in | 1 | UL94 V-0 | Latch Lock | 100 VAC | Polyester | Housing for Female Contacts | 13 | -55 °C | 105 °C | FFC | Contacts Not Included | 1.5 A | Black |
 TE Connectivity AMP Connectors | 0.05 mm | 0.08 mm | 0.05 in | 1 | UL94 V-0 | Latch Lock | 100 VAC | Polyester | Housing for Female Contacts | 17 | -55 °C | 105 °C | FFC | Contacts Not Included | 1.5 A | Black |
 TE Connectivity AMP Connectors | 0.05 mm | 0.08 mm | 0.05 in | 1 | UL94 V-0 | Latch Lock | 100 VAC | Polyester | Housing for Female Contacts | 12 | -55 °C | 105 °C | FFC | Contacts Not Included | 1.5 A | Black |
 TE Connectivity AMP Connectors | 0.05 mm | 0.08 mm | 0.05 in | 1 | UL94 V-0 | Latch Lock | 100 VAC | Polyester | Housing for Female Contacts | 8 | -55 °C | 105 °C | FFC | Contacts Not Included | 1.5 A | Black |
 TE Connectivity AMP Connectors | 0.05 mm | 0.08 mm | 0.05 in | 1 | UL94 V-0 | Latch Lock | 100 VAC | Polyester | Housing for Female Contacts | 36 | -55 °C | 105 °C | FFC | Contacts Not Included | 1.5 A | Black |
