514 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

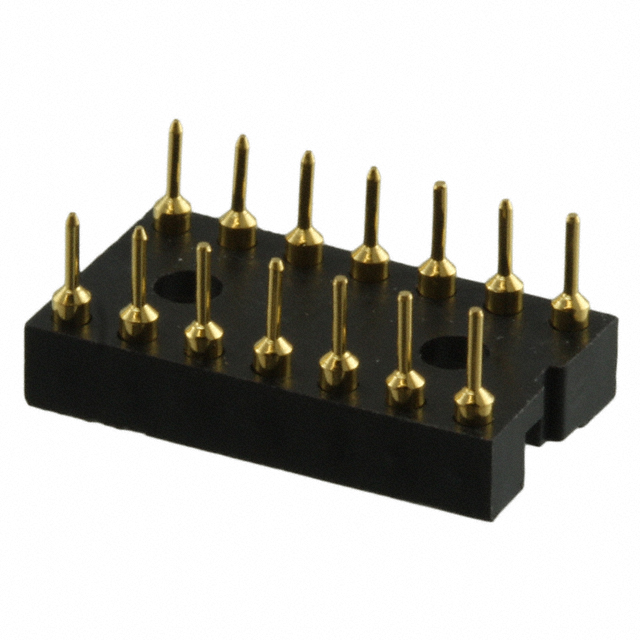

CONN IC DIP SOCKET 14POS GOLD
| Part | Contact Material - Mating | Contact Finish - Mating | Termination | Contact Material - Post | Mounting Type | Row Spacing | Type | Contact Finish Thickness - Mating | Operating Temperature (Max) | Operating Temperature (Min) | Housing Material | Pitch - Mating | Pitch - Post | Number of Positions or Pins (Grid) | Grid Columns | Grid Rows | Features | Contact Finish - Post | Current Rating | Material Flammability Rating | Contact Resistance | Termination Post Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Copper Alloy | Gold | Solder | Copper Alloy | Through Hole | 0.3 in | 0.3" (7.62mm) Row Spacing DIP | 25 µin | 125 °C | -55 °C | Polyester | 0.1 in | 0.1 in | 14 | 7 | 2 | Closed Frame | Gold | 3 A | UL94 V-0 | 10 mOhm | 0.125 in |
 TE Connectivity AMP Connectors | Copper Alloy | Gold | Solder | Copper Alloy | Through Hole | 0.3 in | 0.3" (7.62mm) Row Spacing DIP | 125 °C | -55 °C | 0.1 in | 0.1 in | 14 | 7 | 2 | Closed Frame | Gold | UL94 V-0 | 0.125 in |
