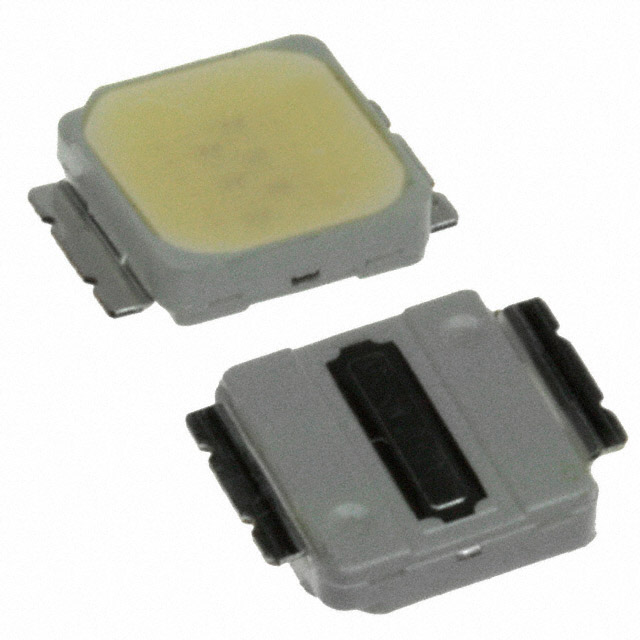

MX6AWT Series

Catalog

WHITE LEDS WHITE, WIDE RANK CCT XLAMP MX6AWT

...

Part	Thermal Resistance of Package	Mounting Type	Height - Seated (Max)	Color	Current - Max	Lumens/Watt	Viewing Angle	Package / Case	Flux (Maximum)	Flux (Minimum)	Flux (Nominal)	Current - Test	Size / Dimension Length	Size / Dimension Width	Voltage - Forward (Vf) (Typ)	Package Name	CCT (K)	CRI (Color Rendering Index)	CRI (Color Rendering Index) (Typ)
CreeLED, Inc. MX6AWT-H1-R250-0007B9	5 °C/W	Surface Mount	0.058 in	White	1 A	72 lm/W	120 °	2-SMD Gull Wing Exposed Pad	74 lm	67 lm	71 lm	300 mA	0.197 in	0.197 in	3.3 V	SMD
CreeLED, Inc. MX6AWT-A1-0000-000BA9	5 °C/W	Surface Mount	0.058 in	White	1 A		120 °	2-SMD Gull Wing Exposed Pad				300 mA	0.197 in	0.197 in	3.3 V	SMD
CreeLED, Inc. MX6AWT-01-R250-000DE7	5 °C/W	Surface Mount	0.058 in	Warm White	1 A	112 lm/W	120 °	2-SMD Gull Wing Exposed Pad	114 lm	107 lm	111 lm	300 mA	0.197 in	0.197 in	3.3 V	SMD	3000 K
CreeLED, Inc. MX6AWT-H1-0000-000AA1	5 °C/W	Surface Mount	0.058 in	Cool White	1 A	92 lm/W	120 °	2-SMD Gull Wing Exposed Pad	94 lm	87 lm	91 lm	300 mA	0.197 in	0.197 in	3.3 V	SMD	5000 K	80
CreeLED, Inc. MX6AWT-H1-R250-000AA8	5 °C/W	Surface Mount	0.058 in	Warm White	1 A	92 lm/W	120 °	2-SMD Gull Wing Exposed Pad	94 lm	87 lm	91 lm	300 mA	0.197 in	0.197 in	3.3 V	SMD	3000 K	80
CreeLED, Inc. MX6AWT-A1-0000-000CA3	5 °C/W	Surface Mount	0.058 in	Neutral White	1 A	105 lm/W	120 °	2-SMD Gull Wing Exposed Pad	107 lm	100 lm	104 lm	300 mA	0.197 in	0.197 in	3.3 V	SMD	4300 K		75
CreeLED, Inc. MX6AWT-A1-0000-000BZ6	5 °C/W	Surface Mount	0.058 in	Warm White	1 A	98 lm/W	120 °	2-SMD Gull Wing Exposed Pad	100 lm	94 lm	97 lm	300 mA	0.197 in	0.197 in	3.3 V	SMD	3500 K		80
CreeLED, Inc. MX6AWT-A1-R250-000CA2	5 °C/W	Surface Mount	0.058 in	Neutral White	1 A	105 lm/W	120 °	2-SMD Gull Wing Exposed Pad	107 lm	100 lm	104 lm	300 mA	0.197 in	0.197 in	3.3 V	SMD	4750 K		75
CreeLED, Inc. MX6AWT-A1-0000-0008A9	5 °C/W	Surface Mount	0.058 in	Warm White	1 A	78 lm/W	120 °	2-SMD Gull Wing Exposed Pad	81 lm	74 lm	77 lm	300 mA	0.197 in	0.197 in	3.3 V	SMD	2850 K		80
CreeLED, Inc. MX6AWT-H1-0000-0008Z7	5 °C/W	Surface Mount	0.058 in	Warm White	1 A	78 lm/W	120 °	2-SMD Gull Wing Exposed Pad	81 lm	74 lm	77 lm	300 mA	0.197 in	0.197 in	3.3 V	SMD	3000 K	80
