KD06 Series

Catalog

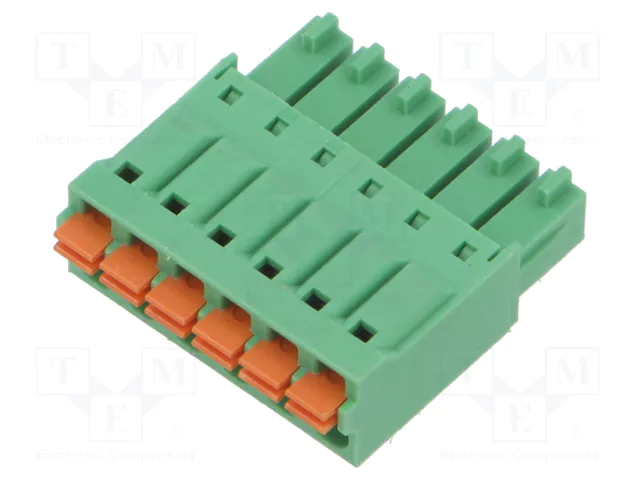

PLUGGABLE TERMINAL BLOCKS TB SPR PLU W/LATCH

Part	Voltage - UL	Wire Gauge or Range - AWG (Max)	Wire Gauge or Range - AWG (Min)	Features	Pitch	Operating Temperature (Min)	Operating Temperature (Max)	Current - UL	Type	Color	Termination Style	Number of Levels	Contact Mating Finish	Mounting Type	Positions Per Level	Number of Positions	Plug Wire Entry Angle	Contact Material	Wire Strip Length (Min)	Wire Strip Length (Max)	Housing Material	Material Flammability Rating	Insulation Height
McGill Microwave Systems KD0650520000G	300 V	24 AWG	14 AWG	Latch Lock	5.08 mm	-40 °C	115 °C	12 A	Female Sockets Plug	Green	Push-In Spring Screwless - Leg Spring	1	Tin	Free Hanging (In-Line)	6	6	180 °	Phosphor Bronze	11 mm	12 mm	Thermoplastic	UL94 V-0	0.429 in
McGill Microwave Systems KD0610500000G	160 V	24 AWG	16 AWG		0.138 in	-40 °C	115 °C	5.5 A	Female Sockets Plug	Green	Push-In Spring Screwless - Leg Spring	1	Tin	Free Hanging (In-Line)	6	6	180 °	Phosphor Bronze	9 mm	10 mm	Thermoplastic	UL94 V-0	0.307 in
McGill Microwave Systems KD0670510000G	300 V	24 AWG	14 AWG	Mating Flange Retention Latches (Wire Side)	0.197 in	-40 °C	115 °C	12 A	Female Sockets Plug	Green	Push-In Spring Screwless - Leg Spring	1	Tin	Free Hanging (In-Line)	6	6	180 °	Phosphor Bronze	11 mm	12 mm	Thermoplastic	UL94 V-0	0.429 in
McGill Microwave Systems KD061050A000G	160 V	24 AWG	16 AWG		0.138 in	-40 °C	115 °C	5.5 A	Female Sockets Plug	Green	Push-In Spring Screwless - Leg Spring	2	Tin	Free Hanging (In-Line)	3	6	180 °	Phosphor Bronze	9 mm	10 mm	Thermoplastic	UL94 V-0	0.634 in
McGill Microwave Systems KD0630500000G	300 V	24 AWG	16 AWG		0.15 in	-40 °C	115 °C	5.5 A	Female Sockets Plug	Green	Push-In Spring Screwless - Leg Spring	1	Tin	Free Hanging (In-Line)	6	6	180 °	Phosphor Bronze	9 mm	10 mm	Thermoplastic	UL94 V-0	0.307 in
McGill Microwave Systems KD0670500000G	300 V	24 AWG	14 AWG	Retention Latches (Non-Wire Side)	0.197 in	-40 °C	115 °C	12 A	Female Sockets Plug	Green	Push-In Spring Screwless - Leg Spring	1	Tin	Free Hanging (In-Line)	6	6	180 °	Phosphor Bronze	11 mm	12 mm	Thermoplastic	UL94 V-0	0.429 in
McGill Microwave Systems KD061051A000G	160 V	24 AWG	16 AWG		0.138 in	-40 °C	115 °C	5.5 A	Female Sockets Plug	Green	Push-In Spring Screwless - Leg Spring	2	Tin	Free Hanging (In-Line)	3	6	180 °	Phosphor Bronze	9 mm	10 mm	Thermoplastic	UL94 V-0	0.634 in
McGill Microwave Systems KD0610520000G	160 V	24 AWG	16 AWG	Latch Lock	0.138 in	-40 °C	115 °C	5.5 A	Female Sockets Plug	Green	Push-In Spring Screwless - Leg Spring	1	Tin	Free Hanging (In-Line)	6	6	180 °	Phosphor Bronze	9 mm	10 mm	Thermoplastic	UL94 V-0	0.307 in
McGill Microwave Systems KD061052A000G	160 V	24 AWG	16 AWG	Latch Lock	0.138 in	-40 °C	115 °C	5.5 A	Female Sockets Plug	Green	Push-In Spring Screwless - Leg Spring	2	Tin	Free Hanging (In-Line)	3	6	180 °	Phosphor Bronze	9 mm	10 mm	Thermoplastic	UL94 V-0	0.634 in
McGill Microwave Systems KD0610510000G	160 V	24 AWG	16 AWG	Mating Flange	0.138 in	-40 °C	115 °C	5.5 A	Female Sockets Plug	Green	Push-In Spring Screwless - Leg Spring	1	Tin	Free Hanging (In-Line)	6	6	180 °	Phosphor Bronze	9 mm	10 mm	Thermoplastic	UL94 V-0	0.307 in
