RT061619 Series

Catalog

CONN CIRCULAR SKT 19 POS CRIMP ST CABLE MOUNT 19 TERMINAL 1 PORT

Part	Ingress Protection Description	Ingress Protection IP Rating	Mounting Type	Connector Type	Fastening Type	Number of Positions	Shell Finish	Shielding	Contact Size	Material Flammability Rating	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Type	Contact Type	Shell Material	Features	Orientation	Housing Color	Operating Temperature (Min)	Operating Temperature (Max)	Insert Material	Contact Shape	Note	Includes	Includes Total Count	Primary Material	Contact Finish Thickness - Mating	Contact Material	Current Rating	Contact Finish - Mating	Applications	Voltage Rating	Plating	Backshell Material	Cable Opening (Max)	Cable Opening (Min)	Color	Termination
McGill Microwave Systems RT061619SNH	Dust Tight Waterproof	IP67	Free Hanging (In-Line)	Plug Housing	Bayonet Lock	19	Nickel	Shielded	16 S	UL94 V-0	19	16 S	For Female Sockets	Crimp	Zinc Alloy	Coupling Nut	N (Normal)	Silver	-40 °C	105 °C	Thermoplastic	Circular	Contacts Not Included
McGill Microwave Systems RT061619PNHEC03R	Dust Tight Waterproof	IP67	Free Hanging (In-Line)	Plug Housing	Bayonet Lock	19	Nickel	Shielded	16 S	UL94 V-0	19	16 S	For Male Pins	Crimp	Zinc Alloy	Backshell Coupling Nut	N (Normal)	Silver	-40 °C	125 °C	Thermoplastic	Circular	Contacts Not Included

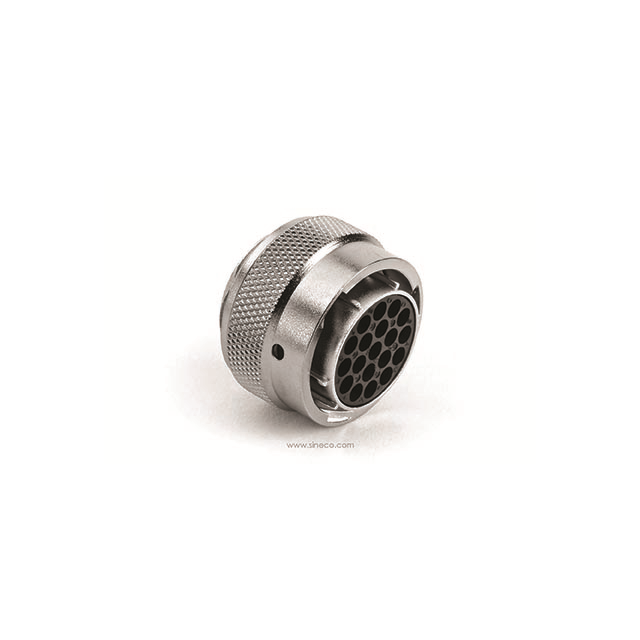

McGill Microwave Systems RT061619SNH03	Dust Tight Waterproof	IP67	Free Hanging (In-Line)	Plug Housing	Bayonet Lock	19	Nickel	Shielded	16 S	UL94 V-0	19	16 S	For Female Sockets	Crimp	Zinc Alloy	Coupling Nut	N (Normal)	Silver	-40 °C	125 °C	Thermoplastic	Circular	Contacts Not Included	Connector Gasket O-Ring	3 pcs

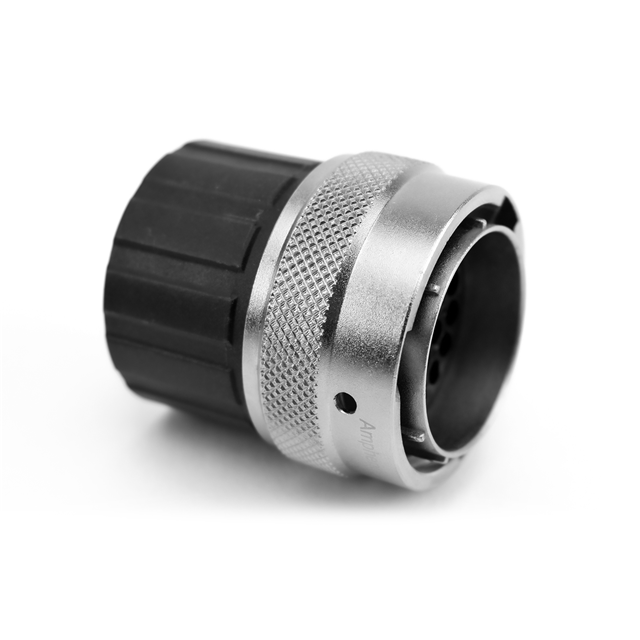

McGill Microwave Systems RT061619PNHEC	Dust Tight Waterproof	IP67	Free Hanging (In-Line)	Plug Housing	Bayonet Lock	19	Nickel	Shielded	16 S	UL94 V-0	19	16 S	For Male Pins	Crimp	Zinc Alloy	Backshell Coupling Nut	N (Normal)	Silver	-40 °C	105 °C	Thermoplastic	Circular	Contacts Not Included
McGill Microwave Systems RT061619PNHEC03	Dust Tight Waterproof	IP67	Free Hanging (In-Line)	Plug Housing	Bayonet Lock	19	Nickel	Shielded	16 S	UL94 V-0	19	16 S	For Male Pins	Crimp	Zinc Alloy	Coupling Nut	N (Normal)	Silver	-40 °C	125 °C	Thermoplastic	Circular	Contacts Not Included			Metal
McGill Microwave Systems RT061619SNHEC	Dust Tight Waterproof	IP67	Free Hanging (In-Line)	Plug Housing	Bayonet Lock	19	Nickel	Shielded	16 S	UL94 V-0	19	16 S	For Female Sockets	Crimp	Zinc Alloy	Backshell Coupling Nut	N (Normal)	Silver	-40 °C	105 °C	Thermoplastic	Circular	Contacts Not Included
McGill Microwave Systems RT061619SNHEC03	Dust Tight Waterproof	IP67	Free Hanging (In-Line)	Plug Housing	Bayonet Lock	19	Nickel	Shielded	16 S	UL94 V-0	19	16 S	For Female Sockets	Crimp	Zinc Alloy	Coupling Nut	N (Normal)	Silver	-40 °C	125 °C	Thermoplastic	Circular	Contacts Not Included			Metal

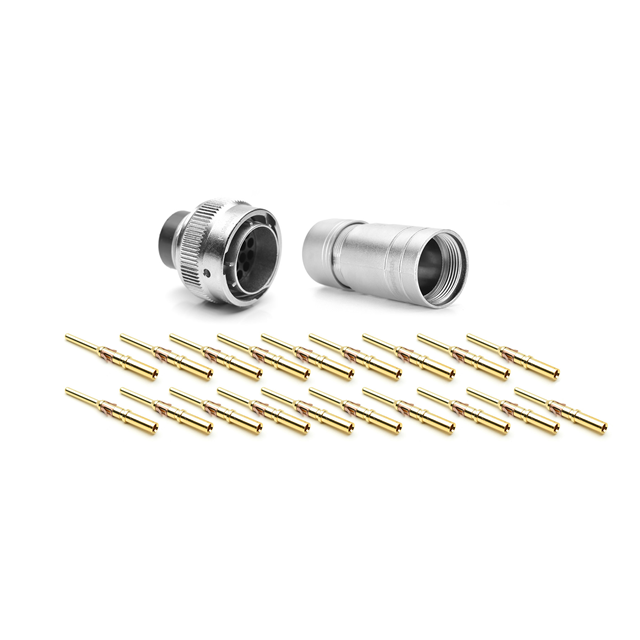

McGill Microwave Systems RT061619PNH03SS-K	Dust Tight Water Resistant Waterproof	IP67 IP69K	Free Hanging (In-Line)	Male Pins Plug	Bayonet Lock	19	Nickel	Shielded		UL94 V-0	19	16 S			Zinc Die Cast	Backshell Coupling Nut	N (Normal)		-40 °C	105 °C	Nylon 6/6 PA66 Polyamide					Metal	Flash	Brass	13 A	Gold	Aerospace Automation Industrial Telecom Transportation	250 V	Nickel	Zinc Die Cast	0.551 in	0.394 in	Silver	Crimp

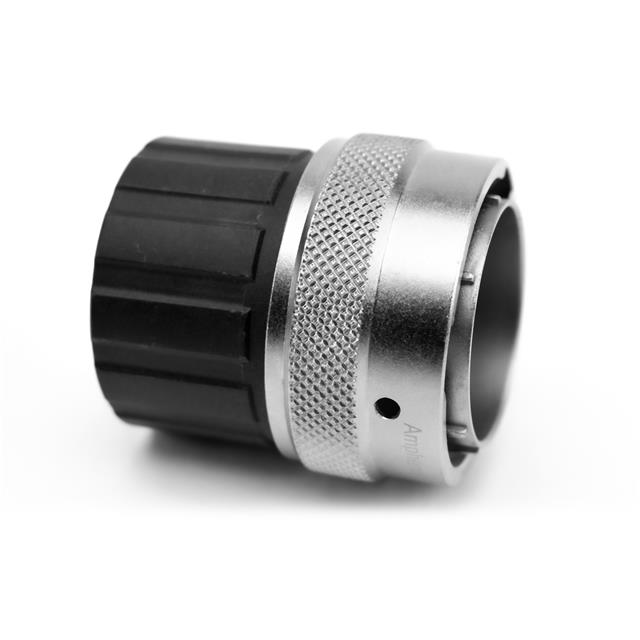

McGill Microwave Systems RT061619SNHEC03R	Dust Tight Waterproof	IP67	Free Hanging (In-Line)	Plug Housing	Bayonet Lock	19	Nickel	Shielded	16 S	UL94 V-0	19	16 S	For Female Sockets	Crimp	Zinc Alloy	Backshell Coupling Nut	N (Normal)	Silver	-40 °C	125 °C	Thermoplastic	Circular	Contacts Not Included
McGill Microwave Systems RT061619PNHECR	Dust Tight Waterproof	IP67	Free Hanging (In-Line)	Plug Housing	Bayonet Lock	19	Nickel	Shielded	16 S	UL94 V-0	19	16 S	For Male Pins	Crimp	Zinc Alloy	Backshell Coupling Nut	N (Normal)	Silver								Metal
