292133 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

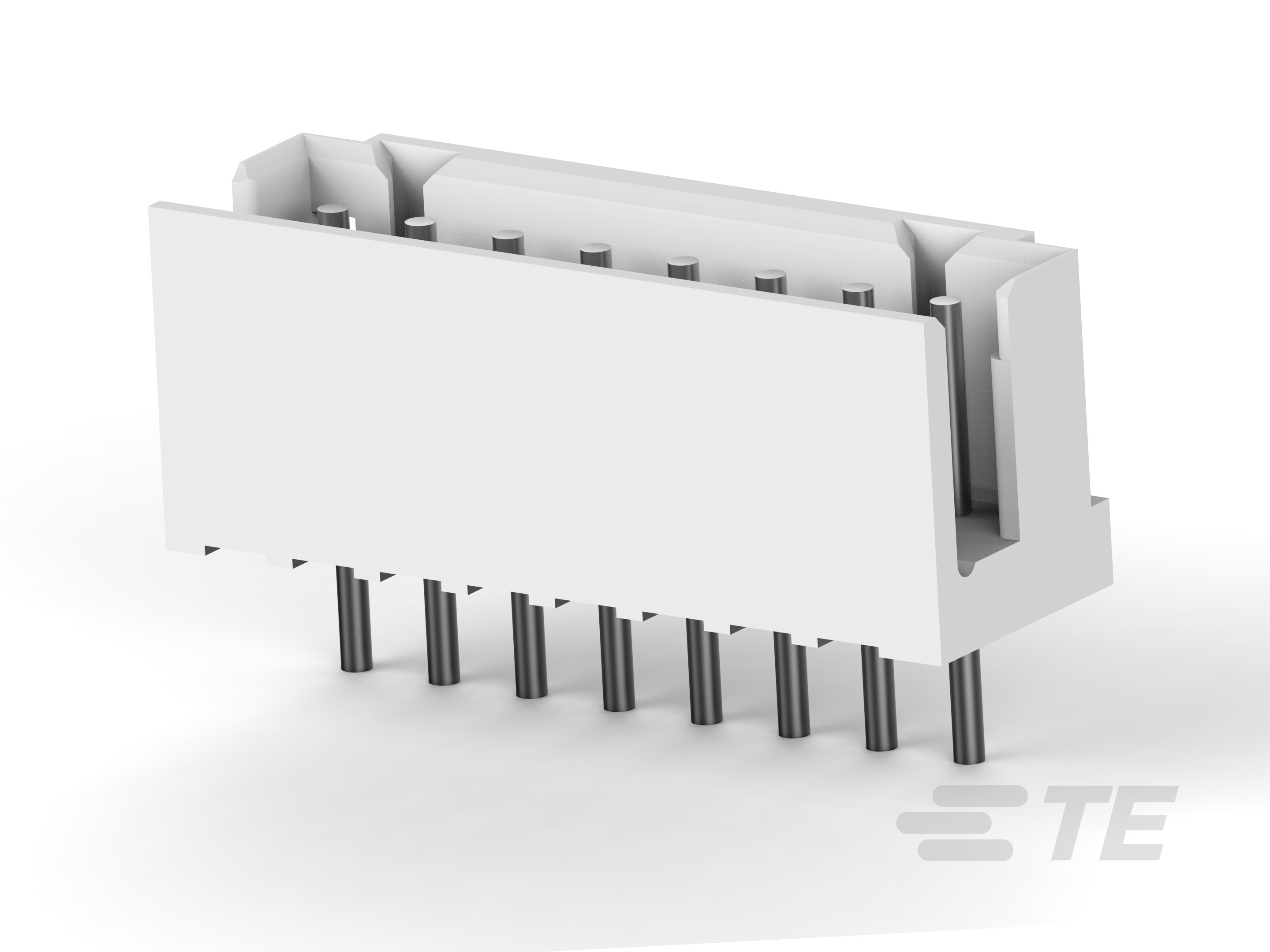

CT P/HDR ASSY BOX V 8P W/O KIN

Part	Termination	Shrouding	Connector Type	Number of Rows	Mounting Type	Number of Positions Loaded	Contact Length - Post	Insulation Material	Contact Finish - Post	Contact Length - Mating	Current Rating	Insulation Height	Contact Finish - Mating	Contact Shape	Fastening Type	Contact Material	Material Flammability Rating	Pitch - Mating	Number of Positions	Voltage Rating	Contact Type	Overall Contact Length	Insulation Color	Style	Applications
TE Connectivity AMP Connectors 292133-8	Solder	Shrouded - 4 Wall	Header	1	Through Hole	All	0.126 in	Nylon 6/6 Polyamide (PA66)	Tin	0.165 in	Varies by Wire Gauge	0.268 in	Tin	Circular	Detent Lock	Brass	UL94 V-0	0.079 in	8	125 V	Male Pin	0.358 in	Natural	Board Cable/Wire	General Purpose
TE Connectivity AMP Connectors 6-292133-3	Solder	Shrouded - 4 Wall	Header	1	Through Hole	All	0.126 in	Nylon 6/6 Polyamide (PA66)	Tin	0.165 in	Varies by Wire Gauge	0.268 in	Tin	Circular	Detent Lock	Brass	UL94 V-0	0.079 in	3	125 V	Male Pin	0.358 in	Black	Board Cable/Wire	General Purpose
TE Connectivity AMP Connectors 2-292133-3	Solder	Shrouded - 4 Wall	Header	1	Through Hole	All	0.126 in	Nylon 6/6 Polyamide (PA66)	Tin	0.165 in	Varies by Wire Gauge	0.268 in	Tin	Circular	Detent Lock	Brass	UL94 V-0	0.079 in	3	125 V	Male Pin	0.358 in	Blue	Board Cable/Wire	General Purpose
TE Connectivity AMP Connectors 292133-6	Solder	Shrouded - 4 Wall	Header	1	Through Hole	All	0.126 in	Nylon 6/6 Polyamide (PA66)	Tin	0.165 in	Varies by Wire Gauge	0.268 in	Tin	Circular	Detent Lock	Brass	UL94 V-0	0.079 in	6	125 V	Male Pin	0.358 in	Natural	Board Cable/Wire	General Purpose
TE Connectivity AMP Connectors 292133-5	Solder	Shrouded - 4 Wall	Header	1	Through Hole	All	0.126 in	Nylon 6/6 Polyamide (PA66)	Tin	0.165 in	Varies by Wire Gauge	0.268 in	Tin	Circular	Detent Lock	Brass	UL94 V-0	0.079 in	5	125 V	Male Pin	0.358 in	Natural	Board Cable/Wire	General Purpose
