Disc. IGBT XPT-GenX4 TO-247
Disc. IGBT XPT-GenX4 TO-247
| Part | Vce(on) (Max) | Test Condition Voltage | Test Condition Resistance | Test Condition Voltage (Secondary) | Test Condition Current | Current - Collector Pulsed (Icm) | Package / Case | Input Type | Gate Charge | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Td (on) @ 25°C | Td (off) @ 25°C | Power - Max | Mounting Type | Operating Temperature (Min) | Operating Temperature (Max) | Package Name | Reverse Recovery Time (trr) | Switching Energy (Off) | Switching Energy (On) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

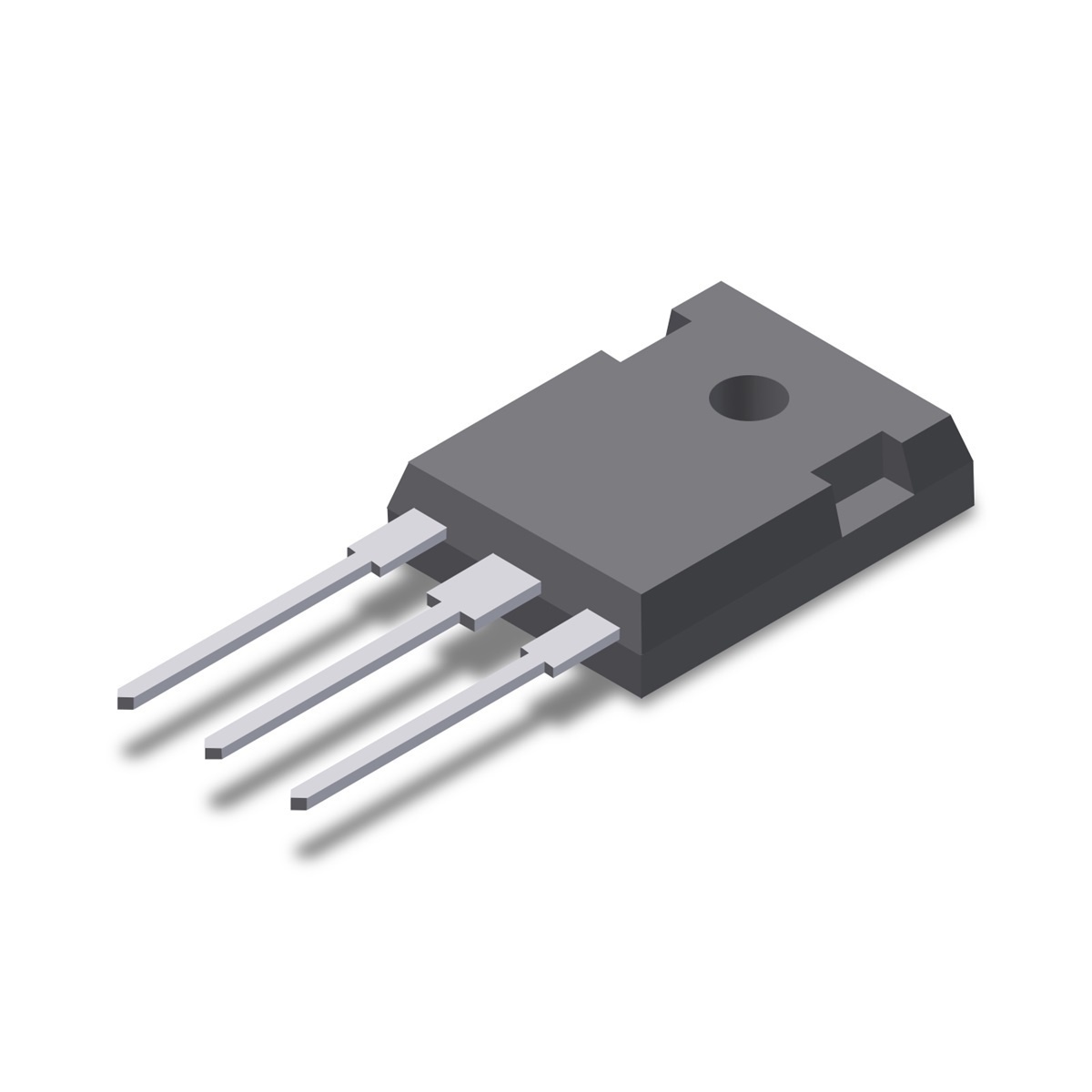

 LITTELFUSE | 2.5 V | 600 V | 5 Ohm | 15 V | 40 A | 290 A | TO-247-3 | Standard | 114 nC | 1200 V | 140 A | 20 ns | 180 ns | 650 VA | Through Hole | -55 °C | 175 °C | TO-247 (IXTH) | 50 ns | 1.34 mJ | 3.5 mJ |
