Q-3D0490 Series

Catalog

COAX CABLE SMA TO TNC 6"

Part	Connector Impedance	2nd Contact Gender	2nd Connector Mounting Feature	Color	Frequency - Max	1st Connector Mounting Type	Overall Impedance	2nd Connector Mounting Type	1st Contact Gender	Features	Cable Impedance	Style	Length	2nd Connector	1st Connector	Cable Type	Length (ft)

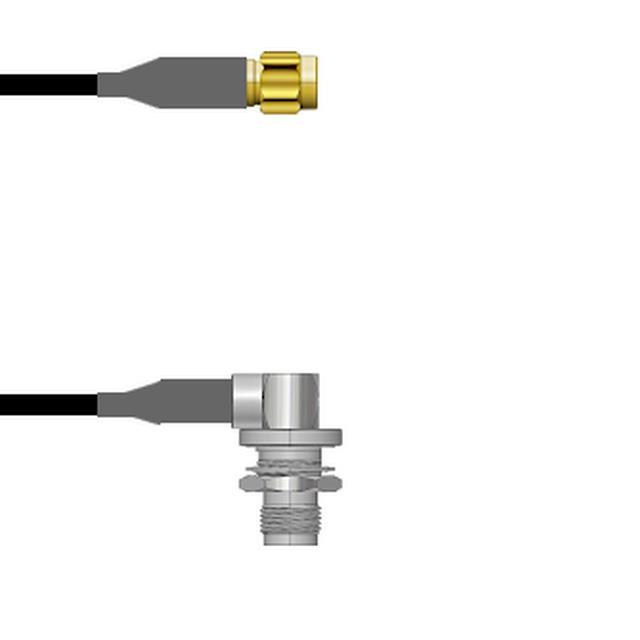

McGill Microwave Systems Q-3D0490008006I	50 Ohms	Female	Bulkhead - Front Side Nut	Black	1 GHz	Free Hanging (In-Line)	50 Ohms	Panel Mount	Male	Shielded	50 Ohms	SMA TNC	0.5 ft	Right Angle TNC Jack	SMA Plug	58 RG
McGill Microwave Systems Q-3D0490008024I	50 Ohms	Female	Bulkhead - Front Side Nut	Black	1 GHz	Free Hanging (In-Line)	50 Ohms	Panel Mount	Male	Shielded	50 Ohms	SMA TNC	24 in	Right Angle TNC Jack	SMA Plug	58 RG
McGill Microwave Systems Q-3D0490008003M	50 Ohms	Female	Bulkhead - Front Side Nut	Black	1 GHz	Free Hanging (In-Line)	50 Ohms	Panel Mount	Male	Shielded	50 Ohms	SMA TNC	118.1 in	Right Angle TNC Jack	SMA Plug	58 RG
McGill Microwave Systems Q-3D0490008108I	50 Ohms	Female	Bulkhead - Front Side Nut	Black	1 GHz	Free Hanging (In-Line)	50 Ohms	Panel Mount	Male	Shielded	50 Ohms	SMA TNC	9 ft	Right Angle TNC Jack	SMA Plug	58 RG
McGill Microwave Systems Q-3D0490008.25M	50 Ohms	Female	Bulkhead - Front Side Nut	Black	1 GHz	Free Hanging (In-Line)	50 Ohms	Panel Mount	Male	Shielded	50 Ohms	SMA TNC	9.843 in	Right Angle TNC Jack	SMA Plug	58 RG
McGill Microwave Systems Q-3D04900081.5M	50 Ohms	Female	Bulkhead - Front Side Nut	Black	1 GHz	Free Hanging (In-Line)	50 Ohms	Panel Mount	Male	Shielded	50 Ohms	SMA TNC	59.1 in	Right Angle TNC Jack	SMA Plug	58 RG	4.9 ft
McGill Microwave Systems Q-3D0490008.75M	50 Ohms	Female	Bulkhead - Front Side Nut	Black	1 GHz	Free Hanging (In-Line)	50 Ohms	Panel Mount	Male	Shielded	50 Ohms	SMA TNC	29.53 in	Right Angle TNC Jack	SMA Plug	58 RG
McGill Microwave Systems Q-3D0490008048I	50 Ohms	Female	Bulkhead - Front Side Nut	Black	1 GHz	Free Hanging (In-Line)	50 Ohms	Panel Mount	Male	Shielded	50 Ohms	SMA TNC	48 in	Right Angle TNC Jack	SMA Plug	58 RG
McGill Microwave Systems Q-3D0490008001M	50 Ohms	Female	Bulkhead - Front Side Nut	Black	1 GHz	Free Hanging (In-Line)	50 Ohms	Panel Mount	Male	Shielded	50 Ohms	SMA TNC	39.4 in	Right Angle TNC Jack	SMA Plug	58 RG
McGill Microwave Systems Q-3D0490008084I	50 Ohms	Female	Bulkhead - Front Side Nut	Black	1 GHz	Free Hanging (In-Line)	50 Ohms	Panel Mount	Male	Shielded	50 Ohms	SMA TNC	84 in	Right Angle TNC Jack	SMA Plug	58 RG	7 ft
