NH Series
Manufacturer: Vishay Dale
Beta
⌘K

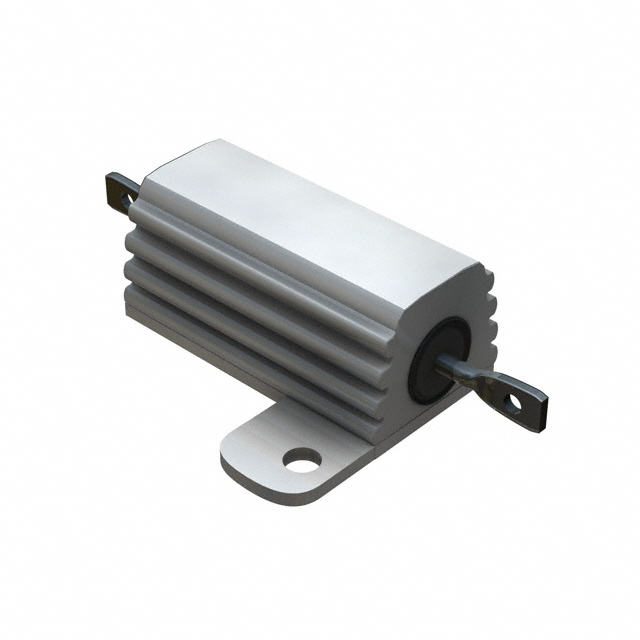

WIREWOUND RESISTORS - CHASSIS MOUNT 50WATT 10KOHM 1% NON-INDUCTIVE
| Part | Height - Seated (Max) | Power (Watts) | Temperature Coefficient | Lead Style | Size / Dimension Width | Size / Dimension Length | Mounting Feature | Housing Type | Coating | Composition | Resistance | Features | Tolerance | Operating Temperature (Max) | Operating Temperature (Min) | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Vishay Dale | 0.625 in | 50 W | 20 ppm/¯C | Solder Lugs | 1.14 in | 1.968 in | Flanges | Aluminum | Aluminum | Wirewound | 10 kOhm | Moisture Resistant Pulse Withstanding | 1 % | 250 °C | -55 °C | Axial Box |
 Vishay Dale | 0.625 in | 50 W | 50 ppm/°C | Solder Lugs | 1.14 in | 1.968 in | Flanges | Aluminum | Aluminum | Wirewound | 5 Ohm | Moisture Resistant Pulse Withstanding | 1 % | 250 °C | -55 °C | Axial Box |
Vishay Dale | 2.219 in | 250 W | 20 ppm/¯C | Terminal Screw Type | 3 in | 4.5 in | Flanges | Aluminum | Aluminum | Wirewound | 317 Ohms | Moisture Resistant Non-Inductive | 1 % | 250 °C | -55 °C | Axial Box |
Vishay Dale | 2.219 in | 250 W | 20 ppm/¯C | Terminal Screw Type | 3 in | 4.5 in | Flanges | Aluminum | Aluminum | Wirewound | 1 kOhm | Moisture Resistant Non-Inductive | 1 % | 250 °C | -55 °C | Axial Box |
 Vishay Dale | 0.625 in | 50 W | 20 ppm/¯C | Solder Lugs | 1.14 in | 1.968 in | Flanges | Aluminum | Aluminum | Wirewound | 15 Ohm | Moisture Resistant Non-Inductive | 1 % | 250 °C | -55 °C | Axial Box |
Vishay Dale | 2.219 in | 250 W | 20 ppm/¯C | Terminal Screw Type | 3 in | 4.5 in | Flanges | Aluminum | Aluminum | Wirewound | 250 Ohm | Moisture Resistant Non-Inductive | 1 % | 250 °C | -55 °C | Axial Box |
 Vishay Dale | 0.625 in | 50 W | 20 ppm/¯C | Solder Lugs | 1.14 in | 1.968 in | Flanges | Aluminum | Aluminum | Wirewound | 1.2 kOhm | Moisture Resistant Non-Inductive | 1 % | 250 °C | -55 °C | Axial Box |
