284392 Series

Catalog

TERM BLK 3P SIDE ENT 3.81MM PCB

Part	Pitch	Mounting Type	Current	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Number of Levels	Voltage	Positions Per Level	Wire Termination	Mating Orientation	Features	Color	Clamp Material	Clamp Plating	Screw Thread	Torque - Screw	Screw Material	Screw Plating	Housing Material	Contact Material	Plating
TE Connectivity AMP Connectors 284392-3	0.15 in	Through Hole	12 A	14 AWG	30 AWG	1	300 V	3	Rising Cage Clamp Screw	Horizontal with Board	Interlocking (Side)	Green	Brass	Nickel Plated	M3	0.25 Nm	Brass	Nickel Plated	Nylon 6/6 PA66 Polyamide	Brass	Tin Plated
TE Connectivity AMP Connectors 1-284392-4	0.15 in	Through Hole	12 A	14 AWG	30 AWG	1	300 V	14	Rising Cage Clamp Screw	Horizontal with Board	Interlocking (Side)	Green	Brass	Nickel Plated	M3	0.25 Nm	Brass	Nickel Plated	Nylon 6/6 PA66 Polyamide	Brass	Tin Plated

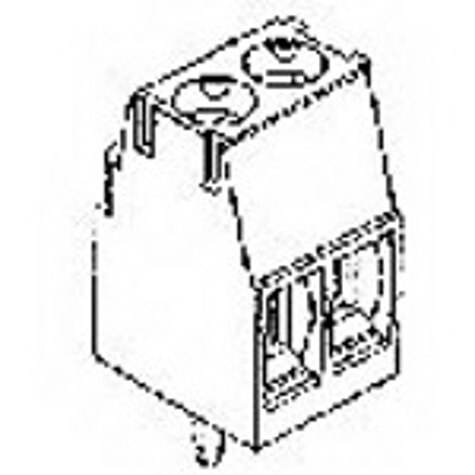

TE Connectivity AMP Connectors 284392-7	0.15 in	Through Hole	12 A	14 AWG	30 AWG	1	300 V	7	Rising Cage Clamp Screw	Horizontal with Board	Interlocking (Side)	Green	Brass	Nickel Plated	M3	0.25 Nm	Brass	Nickel Plated	Nylon 6/6 PA66 Polyamide	Brass	Tin Plated
TE Connectivity AMP Connectors 284392-9	0.15 in	Through Hole	12 A	14 AWG	30 AWG	1	300 V	9	Rising Cage Clamp Screw	Horizontal with Board	Interlocking (Side)	Green	Brass	Nickel Plated	M3	0.25 Nm	Brass	Nickel Plated	Nylon 6/6 PA66 Polyamide	Brass	Tin Plated
