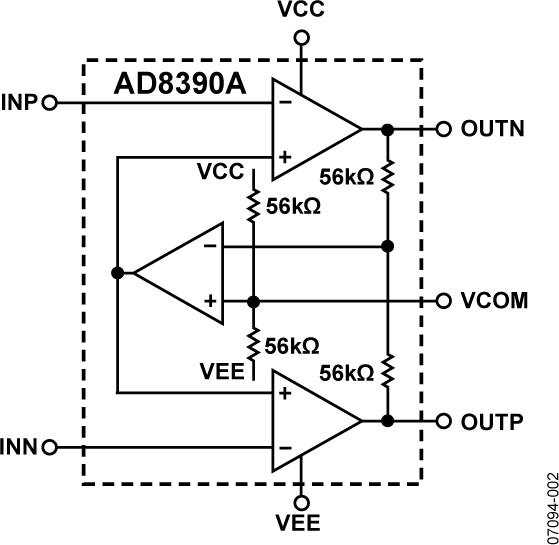

AD8390 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

IC AMP DIFF LP LDIST 16QSOP

Part	Package Features	Package Name	Package Width	Package Length	Slew Rate	Voltage - Input Offset	Number of Circuits	Voltage - Supply Span (Min)	Mounting Type	Voltage - Supply Span (Max)	Amplifier Type	-3db Bandwidth	Current - Supply	Current - Output / Channel	Current - Input Bias	Output Type	Operating Temperature (Min)	Operating Temperature (Max)	Package / Case
Analog Devices Inc./Maxim Integrated AD8390ARCZ	Exposed Pad	16-QSOP-EP 16-SSOP	3.9 mm	0.154 in	300 V/µs	1 mV	1	10 V	Surface Mount	24 V	Differential	60 MHz	10 mA	400 mA	4 µA	Differential	-40 °C	85 °C
Analog Devices Inc./Maxim Integrated AD8390ACPZ-R2		16-LFCSP	4 mm	4 mm	300 V/µs	1 mV	1	10 V	Surface Mount	24 V	Differential	60 MHz	10 mA	400 mA	4 µA	Differential	-40 °C	85 °C	16-VQFN Exposed Pad CSP
Analog Devices Inc./Maxim Integrated AD8390ACP-REEL7		16-LFCSP	4 mm	4 mm	300 V/µs	1 mV	1	10 V	Surface Mount	24 V	Differential	60 MHz	10 mA	400 mA	4 µA	Differential	-40 °C	85 °C	16-VQFN Exposed Pad CSP
Analog Devices Inc./Maxim Integrated AD8390AACPZ-R2		16-LFCSP-VQ	4 mm	4 mm	300 V/µs	1 mV	1	10 V	Surface Mount	24 V	Differential	60 MHz	10 mA	400 mA	4 µA	Differential	-40 °C	85 °C	16-VQFN Exposed Pad CSP
Analog Devices Inc./Maxim Integrated AD8390ARC	Exposed Pad	16-QSOP-EP 16-SSOP	3.9 mm	0.154 in	300 V/µs	1 mV	1	10 V	Surface Mount	24 V	Differential	60 MHz	10 mA	400 mA	4 µA	Differential	-40 °C	85 °C
Analog Devices Inc./Maxim Integrated AD8390ARC-REEL7	Exposed Pad	16-QSOP-EP 16-SSOP	3.9 mm	0.154 in	300 V/µs	1 mV	1	10 V	Surface Mount	24 V	Differential	60 MHz	10 mA	400 mA	4 µA	Differential	-40 °C	85 °C
Analog Devices Inc./Maxim Integrated AD8390AACPZ-R7		16-LFCSP-VQ	4 mm	4 mm	300 V/µs	1 mV	1	10 V	Surface Mount	24 V	Differential	60 MHz	10 mA	400 mA	4 µA	Differential	-40 °C	85 °C	16-VQFN Exposed Pad CSP
Analog Devices Inc./Maxim Integrated AD8390ACPZ-REEL7		16-LFCSP	4 mm	4 mm	300 V/µs	1 mV	1	10 V	Surface Mount	24 V	Differential	60 MHz	10 mA	400 mA	4 µA	Differential	-40 °C	85 °C	16-VQFN Exposed Pad CSP
