HW04 Series

Catalog

TERM BLOCK PLUG 4POS STR 3.5MM

Part	Type	Plug Wire Entry Angle	Mounting Type	Termination Style	Pitch	Voltage - UL	Number of Positions	Current - UL	Wire Gauge or Range - AWG (Min)	Wire Gauge or Range - AWG (Max)	Contact Mating Finish	Positions Per Level	Color	Number of Levels	Operating Temperature (Min)	Operating Temperature (Max)	Insulation Height	Housing Material	Material Flammability Rating	Wire Strip Length	Contact Material	Wire Strip Length (Max)	Wire Strip Length (Min)	Features
McGill Microwave Systems HW0410000000G	Female Sockets Plug	180 °	Free Hanging (In-Line)	Push-In Spring Screwless - Leg Spring	0.138 in	300 V	4	8 A	16 AWG	28 AWG	Tin	4	Black	1	-40 °C	115 °C	0.488 in	Thermoplastic	UL94 V-0	9 mm	Phosphor Bronze

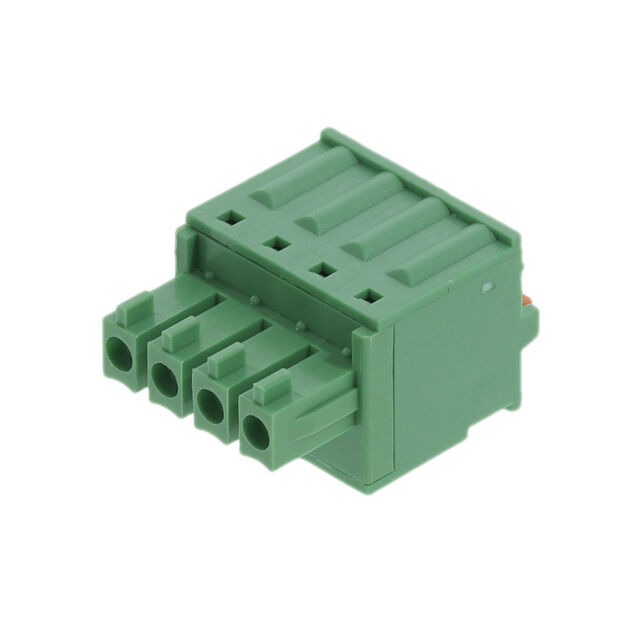

McGill Microwave Systems HW0430500000G	Female Sockets Plug	180 °	Free Hanging (In-Line)	Push-In Spring Screwless - Leg Spring	0.15 in	300 V	4	8 A	16 AWG	28 AWG	Tin	4	Green	1	-40 °C	115 °C	0.488 in	Thermoplastic	UL94 V-0		Phosphor Bronze	9 mm	8 mm
McGill Microwave Systems HW0450040000G	Female Sockets Plug	180 °	Free Hanging (In-Line)	Push-In Spring Screwless - Leg Spring	5.08 mm	300 V	4	10 A	12 AWG	25.5 AWG	Tin	4	Black	1	-40 °C	115 °C	0.591 in	Thermoplastic	UL94 V-0		Phosphor Bronze	10 mm	9 mm	Retention Latches (Non-Wire Side)
McGill Microwave Systems HW0470810000G	Female Sockets Plug	180 °	Free Hanging (In-Line)	Push-In Spring Screwless - Leg Spring	0.197 in	300 V	4	10 A	12 AWG	25.5 AWG	Tin	4	Gray	1	-40 °C	115 °C	0.591 in	Thermoplastic	UL94 V-0		Phosphor Bronze	10 mm	9 mm	Retention Latches (Non-Wire Side)
McGill Microwave Systems HW0410020000G	Female Sockets Plug	180 °	Free Hanging (In-Line)	Push-In Spring Screwless - Leg Spring	0.138 in	300 V	4	8 A	16 AWG	28 AWG	Tin	4	Black	1	-40 °C	115 °C	0.488 in	Thermoplastic	UL94 V-0		Phosphor Bronze	9 mm	8 mm	Mating Flange
McGill Microwave Systems HW0450840000G	Female Sockets Plug	180 °	Free Hanging (In-Line)	Push-In Spring Screwless - Leg Spring	5.08 mm	300 V	4	10 A	12 AWG	25.5 AWG	Tin	4	Gray	1	-40 °C	115 °C	0.591 in	Thermoplastic	UL94 V-0		Phosphor Bronze	10 mm	9 mm	Retention Latches (Non-Wire Side)
McGill Microwave Systems HW0430020000G	Female Sockets Plug	180 °	Free Hanging (In-Line)	Push-In Spring Screwless - Leg Spring	0.15 in	300 V	4	8 A	16 AWG	28 AWG	Tin	4	Black	1	-40 °C	115 °C	0.488 in	Thermoplastic	UL94 V-0		Phosphor Bronze	9 mm	8 mm	Mating Flange
McGill Microwave Systems HW0470030000G	Female Sockets Plug	180 °	Free Hanging (In-Line)	Push-In Spring Screwless - Leg Spring	0.197 in	300 V	4	10 A	12 AWG	25.5 AWG	Tin	4	Black	1	-40 °C	115 °C	0.591 in	Thermoplastic	UL94 V-0		Phosphor Bronze	10 mm	9 mm	Mating Flange Retention Latches (Non-Wire Side)
McGill Microwave Systems HW04A0800000G	Female Sockets Plug	180 °	Free Hanging (In-Line)	Push-In Spring Screwless - Leg Spring	0.295 in	300 V	4	10 A	12 AWG	25.5 AWG	Tin	4	Gray	1	-40 °C	115 °C	0.591 in	Thermoplastic	UL94 V-0		Phosphor Bronze	9 mm	8 mm	Retention Latches (Non-Wire Side)
McGill Microwave Systems HW0470530000G	Female Sockets Plug	180 °	Free Hanging (In-Line)	Push-In Spring Screwless - Leg Spring	0.197 in	300 V	4	10 A	12 AWG	25.5 AWG	Tin	4	Green	1	-40 °C	115 °C	0.591 in	Thermoplastic	UL94 V-0		Phosphor Bronze	10 mm	9 mm	Mating Flange Retention Latches (Non-Wire Side)
