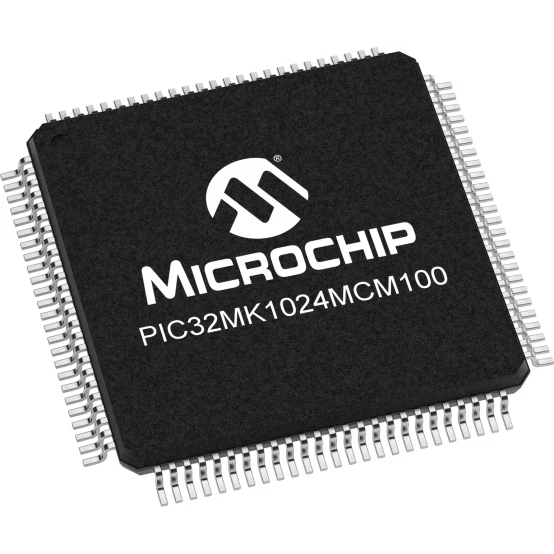

PIC32MK1024MCM100 Series

Catalog

MCU-APPLICATION SPECIFIC 32 BIT, 120 MHZ, 256 KB RAM/1 MB PROGRAM, 2.3 V TO 3.6 V IN, TQFP-100

Part	EEPROM Size (Width)	EEPROM Size (Depth)	Package Length	Package Name	Package Width	RAM Size Depth	RAM Size Width	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type	D/A Channels	A/D Channels	A/D Resolution (bits)	D/A Resolution (bits)	Number of I/O	Oscillator Type	Program Memory Size	Program Memory Width	Program Memory Depth	Peripherals	Core Processor	Package / Case	Core Size (Bit Width)	Connectivity	Program Memory Type	Voltage - Supply (Vcc/Vdd) Minimum	Voltage - Supply (Vcc/Vdd) Maximum	Speed	Core Configuration
Microchip Technology PIC32MK1024MCM100-I/PT	8 bit	4 K	12 mm	100-TQFP	12 mm	256 K	8 bit	85 °C	-40 °C	Surface Mount	3 count	42 count	12 bit	12 bit	49	Internal	1 MB	8 bit	1 M	Brown-out Detect DMA I2S Motor Control PWM POR Reset WDT	MIPS32® microAptiv™	100-TQFP	32 Bit	I2C IrDA LINbus PMP SPI UART USART USB OTG	FLASH	2.3 V	3.6 V	120 MHz	Single-Core
Microchip Technology PIC32MK1024MCM100-E/PT	8 bit	4 K	12 mm	100-TQFP	12 mm	256 K	8 bit	125 °C	-40 °C	Surface Mount	3 count	42 count	12 bit	12 bit	78	Internal	1 MB	8 bit	1 M	Brown-out Detect DMA I2S Motor Control PWM POR Reset WDT	MIPS32® microAptiv™	100-TQFP	32 Bit	CANbus I2C IrDA LINbus PMP QEI SPI UART USART USB OTG	FLASH	2.3 V	3.6 V	120 MHz	Single-Core
Microchip Technology PIC32MK1024MCM100T-I/PT	8 bit	4 K	12 mm	100-TQFP	12 mm	256 K	8 bit	85 °C	-40 °C	Surface Mount	3 count	42 count	12 bit	12 bit	78	Internal	1 MB	8 bit	1 M	Brown-out Detect DMA I2S Motor Control PWM POR Reset WDT	MIPS32® microAptiv™	100-TQFP	32 Bit	CANbus I2C IrDA LINbus PMP QEI SPI UART USART USB OTG	FLASH	2.3 V	3.6 V	120 MHz	Single-Core
Microchip Technology PIC32MK1024MCM100T-E/PT	8 bit	4 K	12 mm	100-TQFP	12 mm	256 K	8 bit	125 °C	-40 °C	Surface Mount	3 count	42 count	12 bit	12 bit	78	Internal	1 MB	8 bit	1 M	Brown-out Detect DMA I2S Motor Control PWM POR Reset WDT	MIPS32® microAptiv™	100-TQFP	32 Bit	CANbus I2C IrDA LINbus PMP QEI SPI UART USART USB OTG	FLASH	2.3 V	3.6 V	120 MHz	Single-Core
