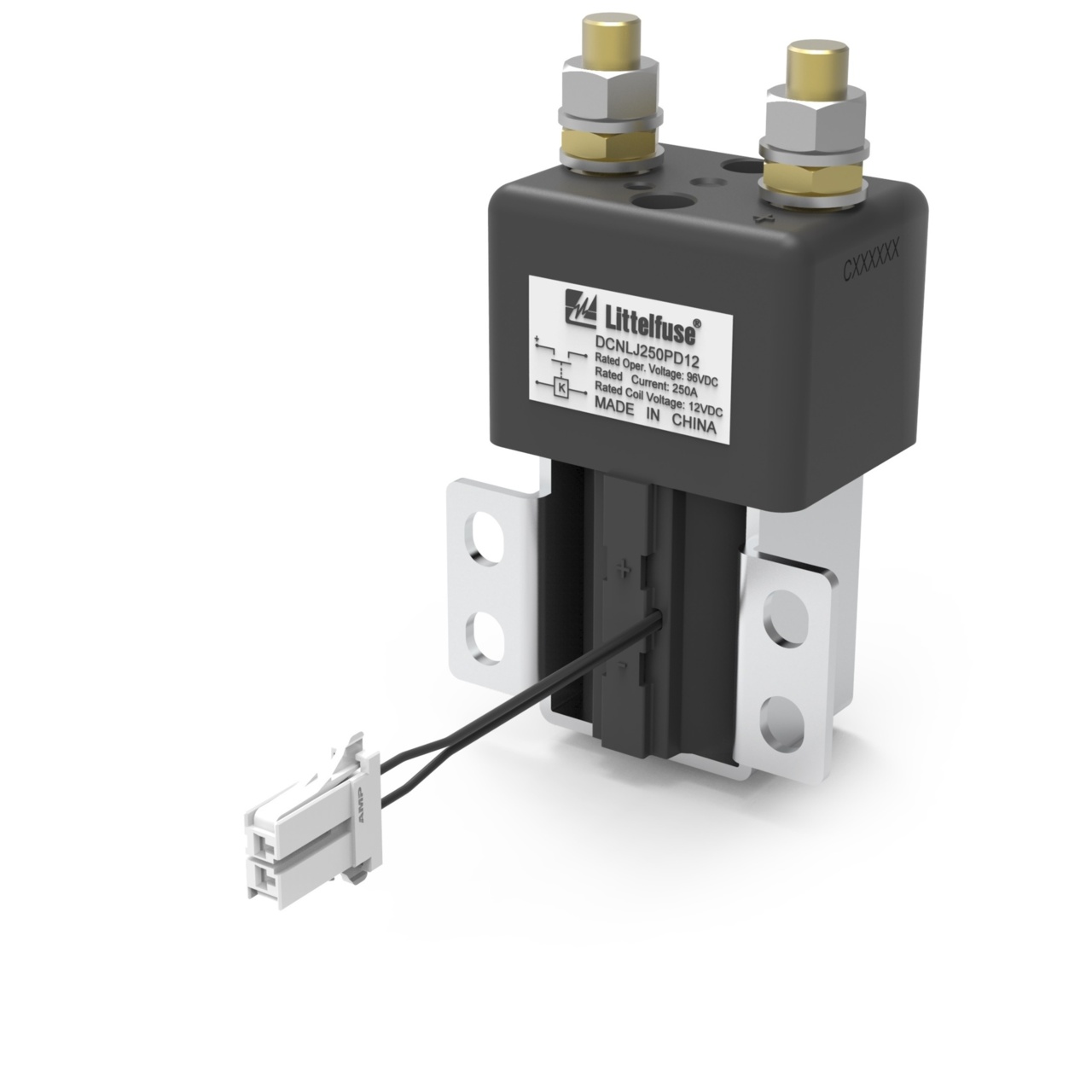

DCNLJ250PD12 Series

DCNL 250A 96V P 12V Coil Contactor

Catalog

DCNL 250A 96V P 12V Coil Contactor

Part	Operating Temperature (Min)	Operating Temperature (Max)	Contact Rating (Current)	Form A Count	Contact Form	Switching Voltage DC (Max)	Must Release Voltage	Coil Voltage	Termination Style	Mounting Type	Must Operate Voltage
LITTELFUSE DCNLJ250PD12	-40 °C	85 °C	250 A	1	SPST-NO	110 VDC	1 VDC	12 VAC	Stud Wire Leads with Connector	Chassis Mount	8.4 VAC

Catalog

DCNL 250A 96V P 12V Coil Contactor

Description

Designed for high-current contact switching in electric control systems of communication power supplies, electro-motion forklifts, motor cars, trains, uninterruptible power supplies (UPS), and more, this 250A Polarized High-Current High-Voltage DC Contactor is a normally open relay with a contact voltage drop of ≤50 mV @ 100A and a 1600A 5 ms make-break rating.This model of the DCNLJ250 series high-voltage contactor (DCNLJ250PD12) features polarized contacts rated for 96V (typical) and 110V (max) and a 12V coil.
