2311763 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

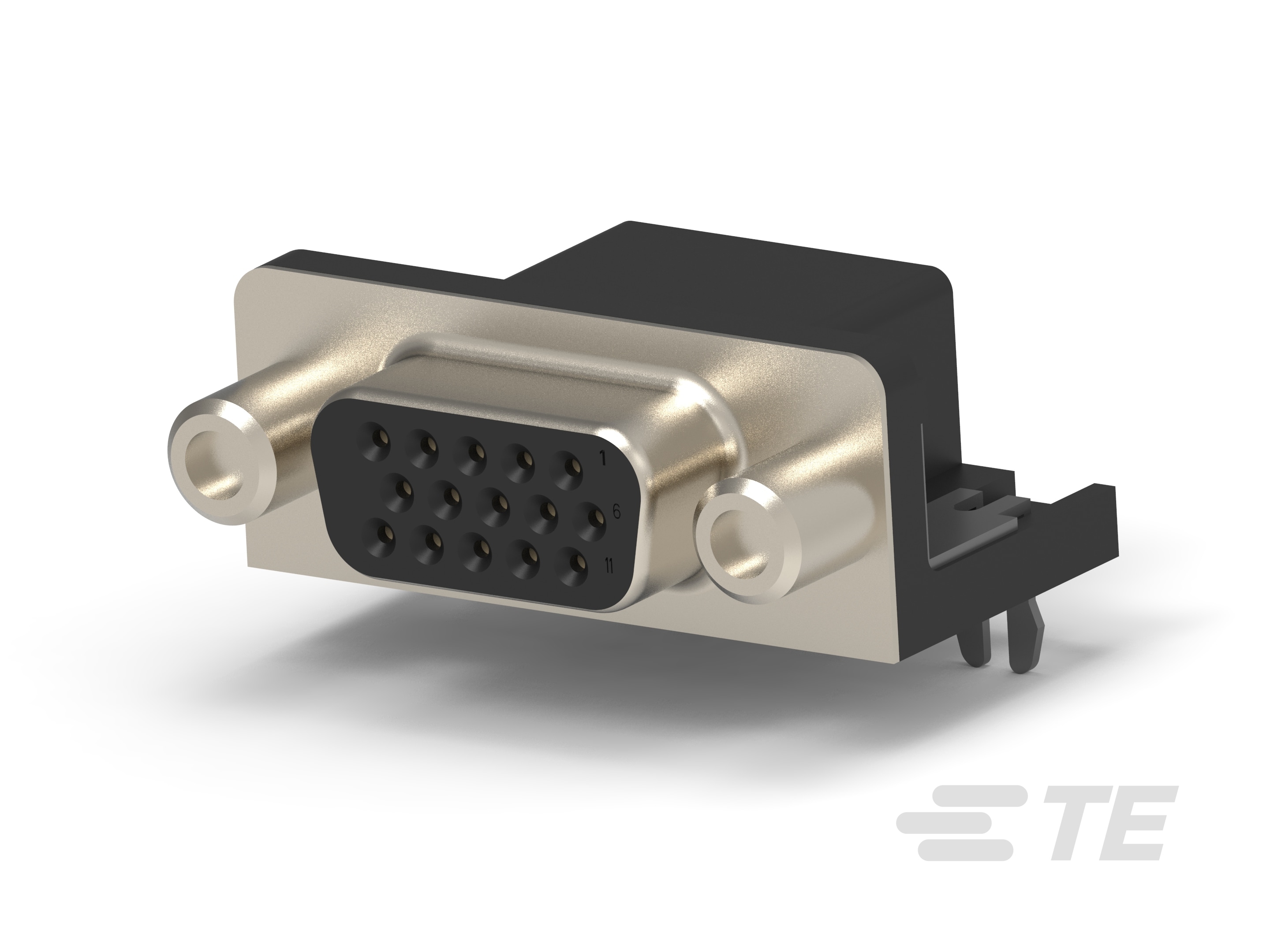

AMPL REC, HD22, R/A, 15P, THREADED
| Part | Shell Size | Connector Layout | Flange Feature | Number of Positions | Connector Style | Material Flammability Rating | Current Rating | Contact Finish | Shell Material | Finish | Mounting Type | Features | Connector Type | Termination | Contact Type | Number of Rows | Backset Spacing | Contact Material | Operating Temperature (Min) | Operating Temperature (Max) | Dielectric Material | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 1 | DE E High Density | Housing Shell (4-40) | 15 | D-Sub High Density | UL94 V-0 | 3 A | Gold | Steel | Nickel Plated | Right Angle Through Hole | Board Lock | Female Sockets Receptacle | Solder | Signal | 3 | 0.35 in | Brass | -55 °C | 105 °C | Glass Filled Nylon 9T Polyamide (PA9T) | Black |
