ACB-06PMMS Series
Manufacturer: McGill Microwave Systems
Beta
⌘K

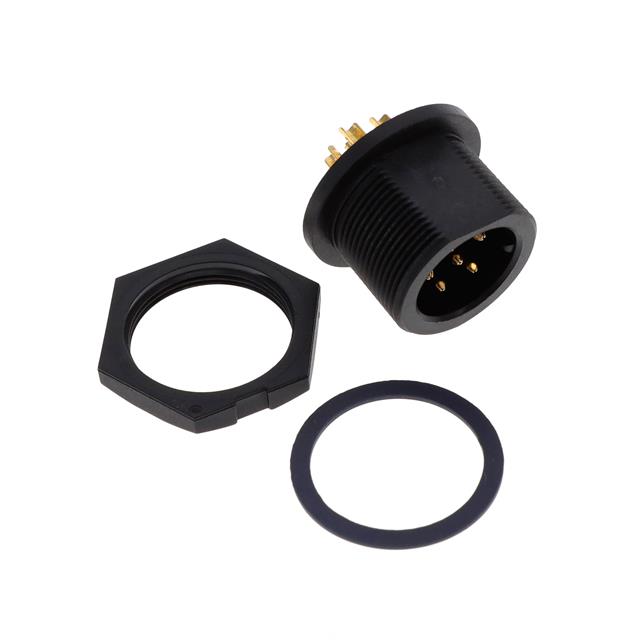

CERES, MIDDLE SIZE, PLASTIC, 10A, 06 PINS, MALE CONNECTOR, MALE CONTACT, CIRCULAR, 2 POINTS LOCK, SOLDER, RECEPTACLE, IP67 ROHS
| Part | Termination | Voltage Rating | Primary Material | Ingress Protection Description | Ingress Protection IP Rating | Shielding | Contact Finish - Mating | Mounting Type | Color | Shell Material | Current Rating | Insert Material | Shell Size - Insert | Mounting Feature | Number of Positions | Connector Type | Fastening Type | Contact Material | Operating Temperature (Min) | Operating Temperature (Max) | Orientation | Voltage Rating (Type) | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | Solder Cup | 300 VAC/DC | Plastic | Dust Tight Waterproof | IP67 | Unshielded | Gold | Panel Mount | Black | Nylon Polyamide (PA) | 10 A | Glass Filled Nylon PA Polyamide | C | Bulkhead Front Side Nut | 6 | Male Pins Receptacle | Bayonet Lock | Copper Alloy | -40 °C | 105 °C | Keyed | ||
 McGill Microwave Systems | Solder Cup | 250 V | Plastic | Dust Tight Waterproof | IP67 | Unshielded | Gold | Panel Mount | Black | Glass Filled Nylon Polyamide (PA) | 10 A | Glass Filled Nylon PA Polyamide | C | Bulkhead Front Side Nut | 6 | Male Pins Receptacle | Threaded | Copper Alloy | -40 °C | 105 °C | Keyed | DC | UL94 V-0 |
