5083 Series

Catalog

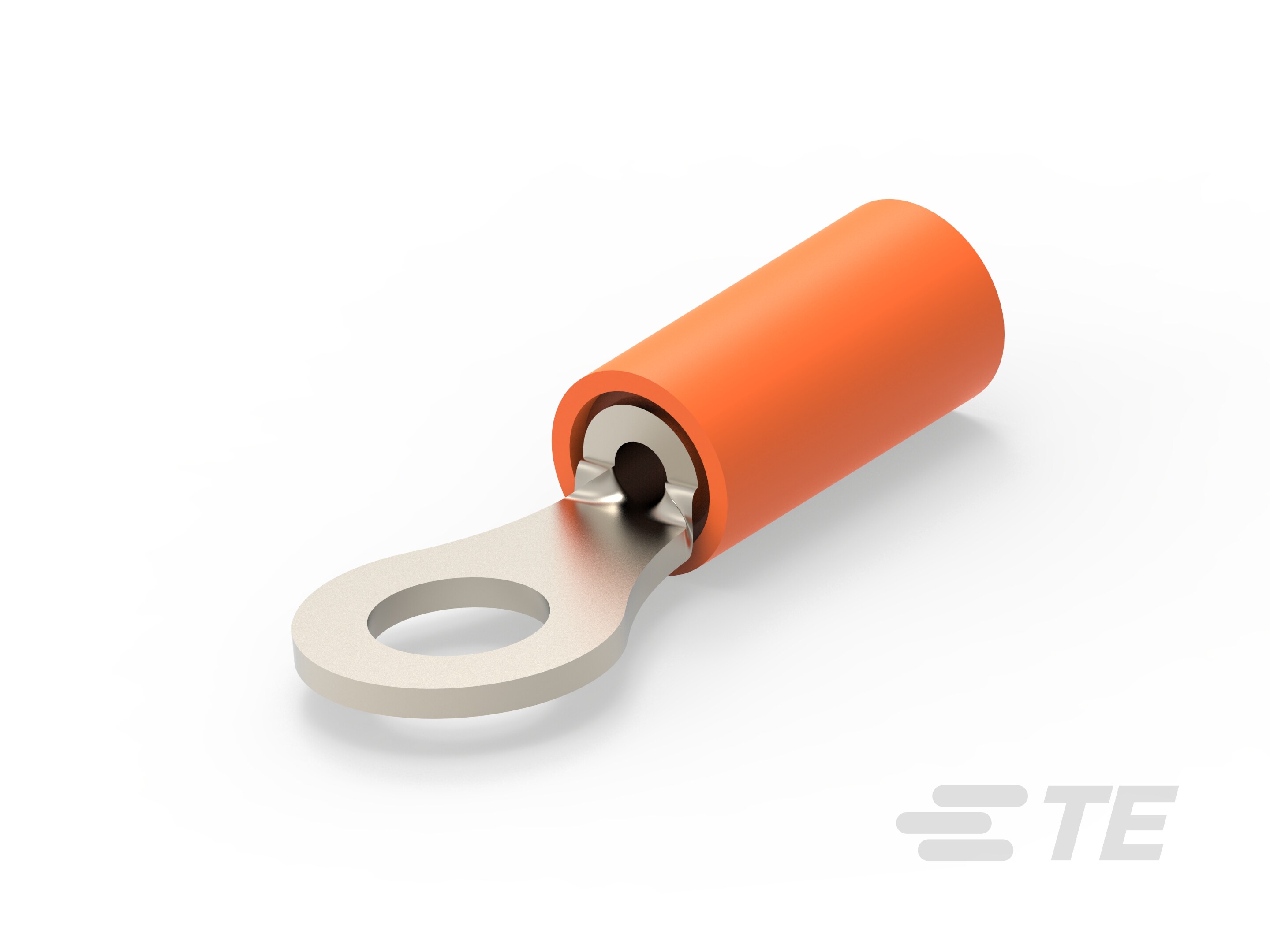

RING TONGUE TERMINAL, M4, #8, 16 AWG, 1.4 MM², PIDG STRATO-THERM SERIES, ORANGE

Part	Thickness	Mounting Type	Length - Overall	Insulation	Stud/Tab Size	Features	Color	Contact Material	Contact Finish	Termination	Terminal Type	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Width - Outer Edges	Material - Insulation	Insulation Diameter (Min)	Insulation Diameter (Max)	Stud/Tab Size
TE Connectivity AMP Connectors 50836	0.031 in	Free Hanging (In-Line)	0.855 in	Insulated	8 Stud	Serrated Termination	Orange	Copper	Nickel	Crimp	Circular	18 AWG	16 AWG	0.312 in	Polytetrafluoroethylene PTFE	0.055 in	0.135 in
TE Connectivity AMP Connectors 50836	0.031 in	Free Hanging (In-Line)	0.855 in	Insulated			Orange	Copper	Nickel	Crimp	Circular	18 AWG	16 AWG	0.312 in				M4 M4 Stud
TE Connectivity AMP Connectors 50838	0.031 in	Free Hanging (In-Line)	1.192 in	Insulated	0.375 in	Serrated Termination	Orange	Copper	Nickel	Crimp	Circular	18 AWG	16 AWG	0.531 in	Polytetrafluoroethylene PTFE	0.055 in	0.135 in	3 Stud 8 Stud

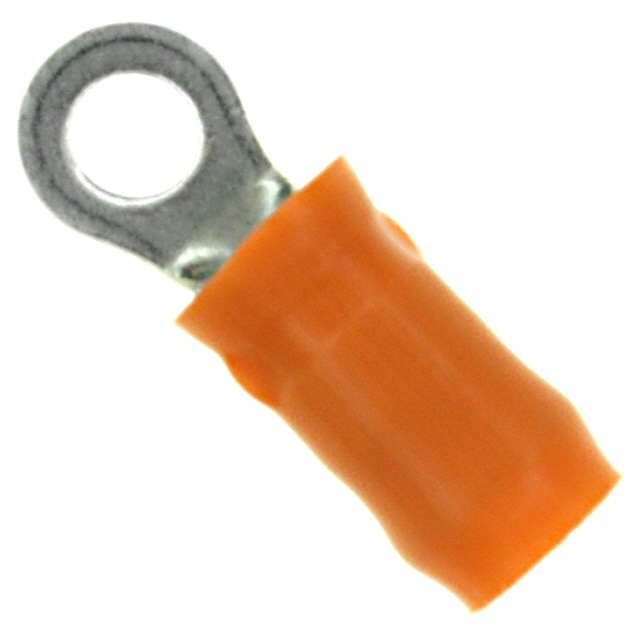

TE Connectivity AMP Connectors 50834	0.031 in	Free Hanging (In-Line)	0.672 in	Insulated	4 Stud	Serrated Termination	Orange	Copper	Nickel	Crimp	Circular	18 AWG	16 AWG	0.218 in	Polytetrafluoroethylene PTFE	0.055 in	0.135 in

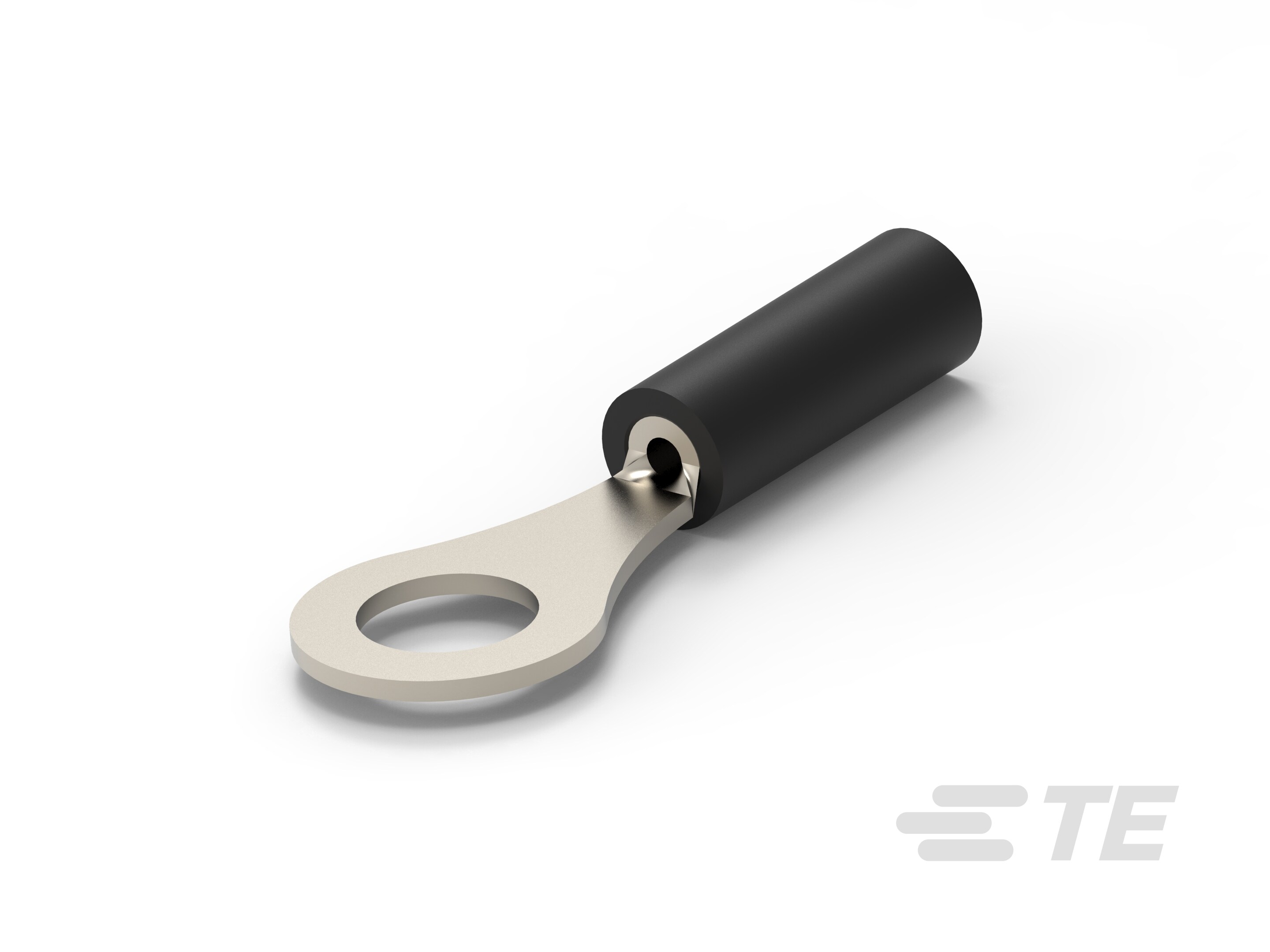

TE Connectivity AMP Connectors 50830	0.018 in	Free Hanging (In-Line)	0.74 in	Insulated	6 Stud	Serrated Termination	Black	Copper	Nickel	Crimp	Circular	26 AWG	24 AWG	0.25 in	Polytetrafluoroethylene PTFE	0.032 in	0.082 in
TE Connectivity AMP Connectors 50835	0.031 in	Free Hanging (In-Line)	0.797 in	Insulated	6 Stud	Serrated Termination	Orange	Copper	Nickel	Crimp	Circular	18 AWG	16 AWG	0.281 in	Polytetrafluoroethylene PTFE	0.055 in	0.135 in
