KD21 Series

Catalog

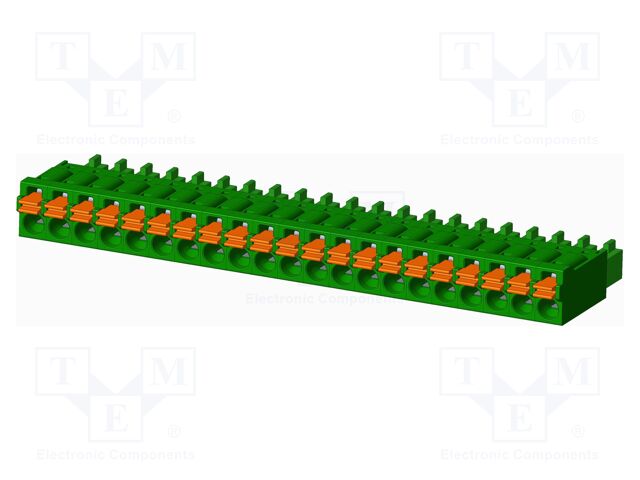

TERM BLOCK PLUG 21POS STR 3.5MM

Part	Features	Color	Termination Style	Plug Wire Entry Angle	Number of Levels	Contact Mating Finish	Operating Temperature (Min)	Operating Temperature (Max)	Wire Gauge or Range - AWG (Max)	Wire Gauge or Range - AWG (Min)	Voltage - UL	Pitch	Type	Mounting Type	Number of Positions	Positions Per Level	Current - UL	Contact Material	Insulation Height	Material Flammability Rating	Wire Strip Length (Min)	Wire Strip Length (Max)	Housing Material
McGill Microwave Systems KD2110510000G	Mating Flange	Green	Push-In Spring Screwless - Leg Spring	180 °	1	Tin	-40 °C	115 °C	24 AWG	16 AWG	160 V	0.138 in	Female Sockets Plug	Free Hanging (In-Line)	21	21	5.5 A	Phosphor Bronze	0.307 in	UL94 V-0	9 mm	10 mm	Thermoplastic
McGill Microwave Systems KD2170500000G	Retention Latches (Non-Wire Side)	Green	Push-In Spring Screwless - Leg Spring	180 °	1	Tin	-40 °C	115 °C	24 AWG	14 AWG	300 V	0.197 in	Female Sockets Plug	Free Hanging (In-Line)	21	21	12 A	Phosphor Bronze	0.429 in	UL94 V-0	11 mm	12 mm	Thermoplastic
McGill Microwave Systems KD2150510000G	Mating Flange Retention Latches (Wire Side)	Green	Push-In Spring Screwless - Leg Spring	180 °	1	Tin	-40 °C	115 °C	24 AWG	14 AWG	300 V	5.08 mm	Female Sockets Plug	Free Hanging (In-Line)	21	21	12 A	Phosphor Bronze	0.429 in	UL94 V-0	11 mm	12 mm	Thermoplastic
McGill Microwave Systems KD2130510000G	Mating Flange	Green	Push-In Spring Screwless - Leg Spring	180 °	1	Tin	-40 °C	115 °C	24 AWG	16 AWG	300 V	0.15 in	Female Sockets Plug	Free Hanging (In-Line)	21	21	5.5 A	Phosphor Bronze	0.307 in	UL94 V-0	9 mm	10 mm	Thermoplastic
McGill Microwave Systems KD2170520000G	Latch Lock Retention Latches (Wire Side)	Green	Push-In Spring Screwless - Leg Spring	180 °	1	Tin	-40 °C	115 °C	24 AWG	14 AWG	300 V	0.197 in	Female Sockets Plug	Free Hanging (In-Line)	21	21	12 A	Phosphor Bronze	0.429 in	UL94 V-0	11 mm	12 mm	Thermoplastic
McGill Microwave Systems KD2150500000G	Retention Latches (Non-Wire Side)	Green	Push-In Spring Screwless - Leg Spring	180 °	1	Tin	-40 °C	115 °C	24 AWG	14 AWG	300 V	5.08 mm	Female Sockets Plug	Free Hanging (In-Line)	21	21	12 A	Phosphor Bronze	0.429 in	UL94 V-0	11 mm	12 mm	Thermoplastic
McGill Microwave Systems KD2130500000G		Green	Push-In Spring Screwless - Leg Spring	180 °	1	Tin	-40 °C	115 °C	24 AWG	16 AWG	300 V	0.15 in	Female Sockets Plug	Free Hanging (In-Line)	21	21	5.5 A	Phosphor Bronze	0.307 in	UL94 V-0	9 mm	10 mm	Thermoplastic
