ADAU1860/ADAU1860-1 Series

Three ADCs, One DAC, Low Power Codec with Audio DSPs

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

Three ADCs, One DAC, Low Power Codec with Audio DSPs

Part	Mounting Type	Type	Number of ADCs	Number of DACs	Voltage - Supply, Analog (Min)	Voltage - Supply, Analog (Max)	Package Name	Package Length	Package Width	Sigma Delta	Operating Temperature (Min)	Operating Temperature (Max)	Dynamic Range (ADC) Typical (dB)	Dynamic Range (DAC) Typical (dB)	Voltage - Supply, Digital (Max)	Voltage - Supply, Digital (Min)	Package / Case	Data Interface	Resolution (Bits)
Analog Devices Inc./Maxim Integrated ADAU1860BCBZRL	Surface Mount	Audio	3 count	1	1.7 V	1.98 V	56-WLCSP	2.98 mm	2.68 mm	No	-40 °C	85 °C	110 dB	130 dB	1.21 V	0.85 V	56-UFBGA WLCSP	I2C I2S SPI	24 b
Analog Devices Inc./Maxim Integrated ADAU1860-1BCBZRL	Surface Mount	Audio	3 count	1	1.7 V	1.98 V	56-WLCSP	2.98 mm	2.68 mm	No	-40 °C	85 °C	110 dB	130 dB	1.21 V	0.85 V	56-UFBGA WLCSP	I2C I2S SPI	24 b

Catalog

Three ADCs, One DAC, Low Power Codec with Audio DSPs

Description

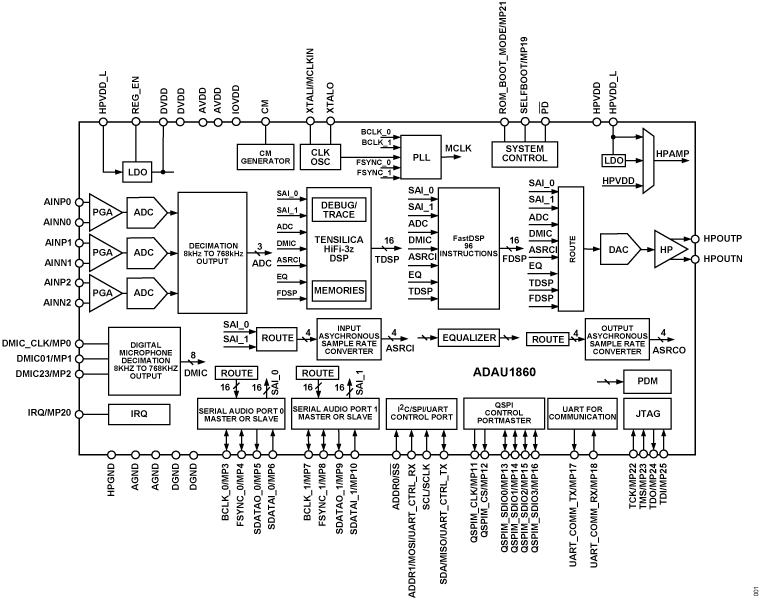

The ADAU1860/ADAU1860-1 are codecs with three inputs and one output that incorporate two digital signal processors (DSPs). The path from the analog input to the DSP core to the analog output is optimized for low latency and is ideal for noise canceling earphones. With the addition of just a few passive components, the ADAU1860/ADAU1860-1 provide a complete earphone solution.APPLICATIONSNoise canceling handsets, headsets, and headphonesBluetooth active noise canceling (ANC) handsets, headsets, and headphonesPersonal navigation devicesDigital still and video camerasMusical instrument effect processorsMultimedia speaker systemsSmartphones
