ADG1211 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

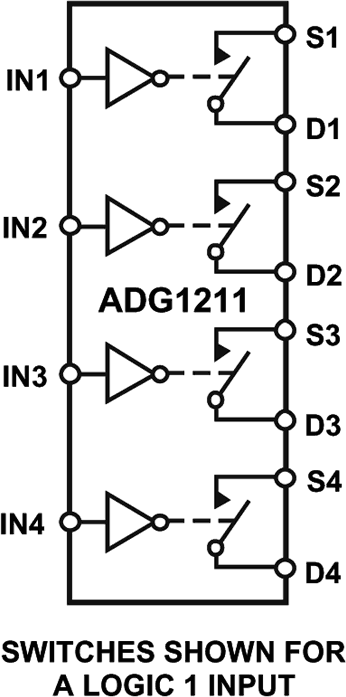

LOW CAPACITANCE, LOW CHARGE INJECTION ±15 V/+12 VICMOS QUAD SPST SWITCHES

Part	Package Length	Package Name	Package Width	-3db Bandwidth	Charge Injection	Switch Time Toff (Max)	Switch Time Ton (Max)	Switch Contact	Switch Circuit Type	Channel-to-Channel Matching (ΔRon)	On-State Resistance (Max)	Crosstalk	Voltage - Supply, Dual (Minimum)	Voltage - Supply, Dual (Nominal)	Voltage - Supply, Dual (Maximum)	Number of Circuits	Channel Capacitance (CD(off))	Channel Capacitance (CS(off))	Mounting Type	Demultiplexer Outputs	Multiplexer Inputs	Operating Temperature (Max)	Operating Temperature (Min)	Current - Leakage (Max)	Voltage - Supply, Single (V+) (Maximum)	Voltage - Supply, Single (V+) (Minimum)	Package / Case
Analog Devices Inc./Maxim Integrated ADG1211YRUZ	0.173 in	16-TSSOP	4.4 mm	1 GHz	-0.3 pC	115 ns	130 ns	NC	SPST	2.5 Ohm	190 Ohm	-90 dB	-4.5 V	4.5 V	16.5 V	4	1.2 pF	1.1 pF	Surface Mount	1	1	125 °C	-40 °C	100 pA	16.5 V	5 V
Analog Devices Inc./Maxim Integrated ADG1211YCPZ-500RL7	3 mm	16-LFCSP	3 mm	1 GHz	-0.3 pC	115 ns	130 ns	NC	SPST	2.5 Ohm	190 Ohm	-90 dB	-4.5 V	4.5 V	16.5 V	4	1.2 pF	1.1 pF	Surface Mount	1	1	125 °C	-40 °C	100 pA	16.5 V	5 V	16-WFQFN Exposed Pad CSP
Analog Devices Inc./Maxim Integrated ADG1211YRUZ-REEL	0.173 in	16-TSSOP	4.4 mm	1 GHz	-0.3 pC	115 ns	130 ns	NC	SPST	2.5 Ohm	190 Ohm	-90 dB	-4.5 V	4.5 V	16.5 V	4	1.2 pF	1.1 pF	Surface Mount	1	1	125 °C	-40 °C	100 pA	16.5 V	5 V
Analog Devices Inc./Maxim Integrated ADG1211YCPZ-REEL7	3 mm	16-LFCSP	3 mm	1 GHz	-0.3 pC	115 ns	130 ns	NC	SPST	2.5 Ohm	190 Ohm	-90 dB	-4.5 V	4.5 V	16.5 V	4	1.2 pF	1.1 pF	Surface Mount	1	1	125 °C	-40 °C	100 pA	16.5 V	5 V	16-WFQFN Exposed Pad CSP
Analog Devices Inc./Maxim Integrated ADG1211YRUZ-REEL7	0.173 in	16-TSSOP	4.4 mm	1 GHz	-0.3 pC	115 ns	130 ns	NC	SPST	2.5 Ohm	190 Ohm	-90 dB	-4.5 V	4.5 V	16.5 V	4	1.2 pF	1.1 pF	Surface Mount	1	1	125 °C	-40 °C	100 pA	16.5 V	5 V
