SIP32454 Series
Manufacturer: Vishay Dale
Beta
⌘K
POWER SWITCH HI SIDE 1-OUT 1.2A 30MOHM 4-PIN WCSP T/R
| Part | Output Ratio | Input Ratio | Output Type | Interface | Voltage - Supply (Vdd/Vcc) | Voltage - Supply (Vcc/Vdd) | Package Name | Package Width | Package Length | Number of Outputs | Voltage - Load (Min) | Voltage - Load (Max) | Current - Output (Max) | Mounting Type | Rds On (Typ) | Input Type | Operating Temperature (Max) | Operating Temperature (Min) | Output Configuration | Switch Type | Package / Case | Fault Protection | Features | Supplied Contents | Utilized IC / Part | Contents | Function | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Vishay Dale | 1 | 1 | N-Channel | On/Off | Not Required | Not Required | 4-WCSP | 0.76 mm | 0.76 mm | 1 | 0.8 V | 2.5 V | 1.2 A | Surface Mount | 28 mOhm | Non-Inverting | 125 °C | -40 °C | High Side | General Purpose | 4-UFBGA CSPBGA | Reverse Current | Load Discharge Slew Rate Controlled | |||||

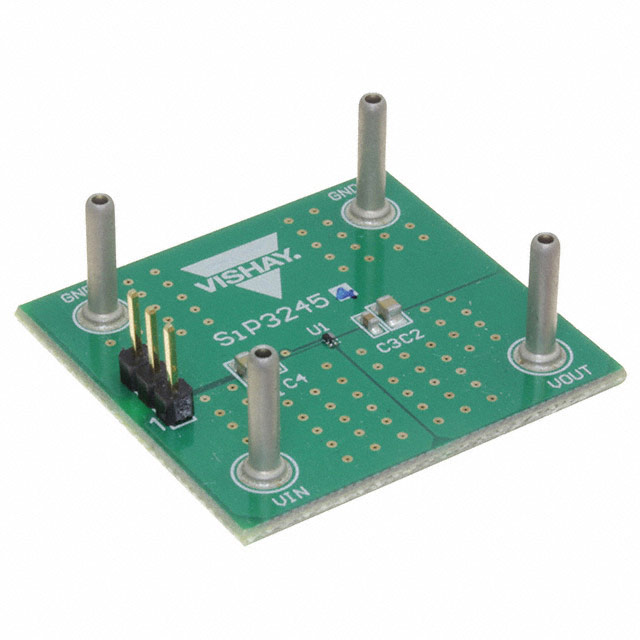

 Vishay Dale | Board(s) | SIP32454 | Board | Power Distribution Switch (Load Switch) | Power Management |
