RT06123 Series

Catalog

CIRCULAR CONNECTOR, ECOMATE RM SERIES, CABLE MOUNT PLUG, 3 CONTACTS, CRIMP PIN, BAYONET

Part	Fastening Type	Primary Material	Voltage Rating	Voltage Rating (Type)	Color	Current Rating	Mounting Type	Shell Finish	Connector Type	Number of Positions	Contact Finish - Mating	Termination	Operating Temperature (Min)	Operating Temperature (Max)	Ingress Protection Description	Ingress Protection IP Rating	Shell Size - Insert Length	Shell Size - Insert Width	Contact Finish Thickness - Mating	Shell Material	Orientation	Contact Size	Material Flammability Rating	Note	Housing Color	Shielding	Contact Shape	Insert Material	Features	Contact Type	Type

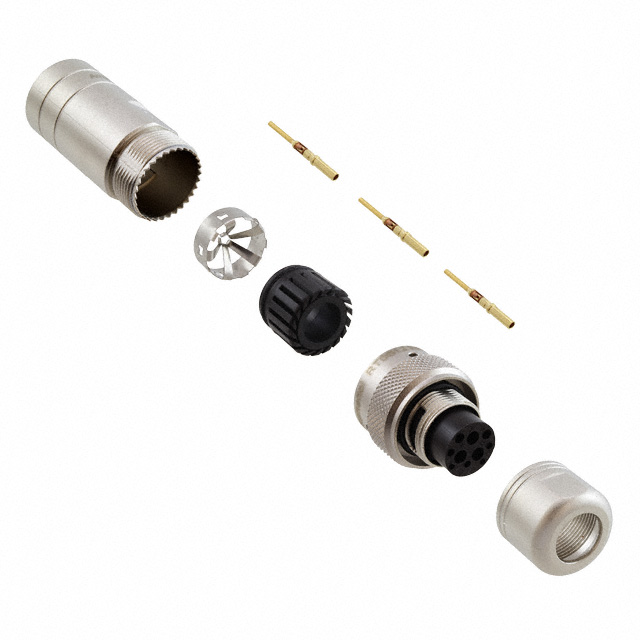

McGill Microwave Systems RT06123PNH-K	Bayonet Lock	Metal	250 V	DC	Silver	13 A	Free Hanging (In-Line)	Nickel	Male Pins Plug	3	Gold	Crimp	-40 °C	105 °C	Dust Tight Waterproof	IP67	12 mm	3 mm	Flash	Zinc Die Cast	N (Normal)
McGill Microwave Systems RT06123PNH	Bayonet Lock						Free Hanging (In-Line)	Nickel	Plug Housing	3			-40 °C	105 °C	Dust Tight Waterproof	IP67	12 mm	3 mm		Zinc Alloy	N (Normal)	16 S	UL94 V-0	Contacts Not Included	Silver	Shielded	Circular	Thermoplastic	Coupling Nut	Crimp	For Male Pins

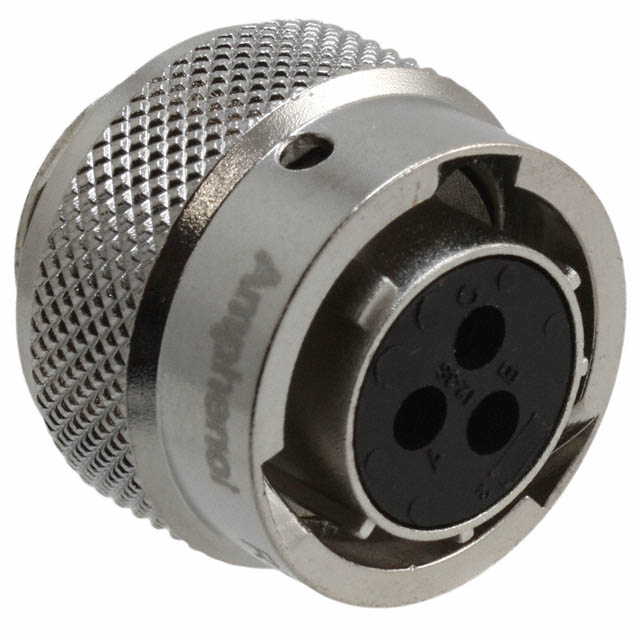

McGill Microwave Systems RT06123SNH	Bayonet Lock						Free Hanging (In-Line)	Nickel	Plug Housing	3			-40 °C	105 °C	Dust Tight Waterproof	IP67	12 mm	3 mm		Zinc Alloy	N (Normal)	16 S	UL94 V-0	Contacts Not Included	Silver	Shielded	Circular	Thermoplastic	Coupling Nut	Crimp	For Female Sockets
McGill Microwave Systems RT06123SNHEC03	Bayonet Lock	Metal					Free Hanging (In-Line)	Nickel	Plug Housing	3					Dust Tight Waterproof	IP67	12 mm	3 mm		Zinc Alloy	N (Normal)	16 S	UL94 V-0		Silver	Shielded			Coupling Nut	Crimp	For Female Sockets

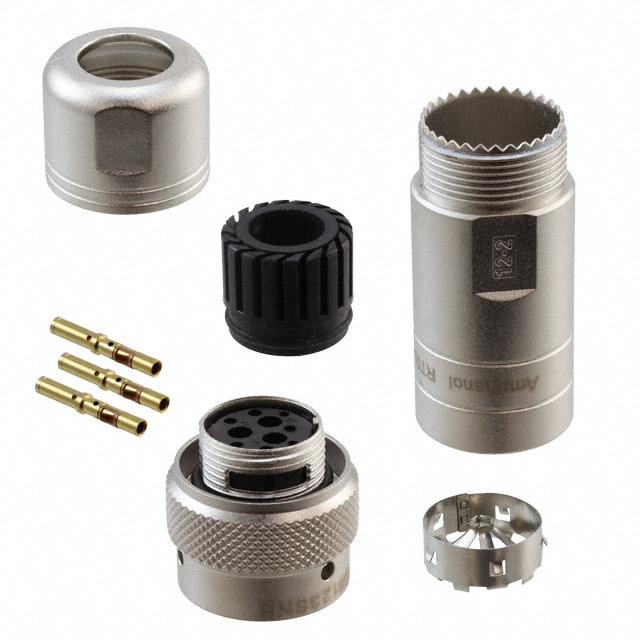

McGill Microwave Systems RT06123SNH-K	Bayonet Lock	Metal	250 V	DC	Silver	13 A	Free Hanging (In-Line)	Nickel	Female Sockets Plug	3	Gold	Crimp	-40 °C	105 °C	Dust Tight Waterproof	IP67	12 mm	3 mm	Flash	Zinc Die Cast	N (Normal)
McGill Microwave Systems RT06123PNHEC03
