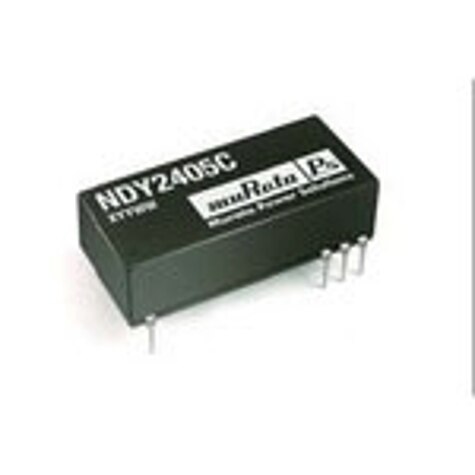

NDY05 Series
Isolated DC/DC Converters - Through Hole 3W 5V-12V DIP24 DC/DC
Manufacturer: Murata Electronics
Catalog
Isolated DC/DC Converters - Through Hole 3W 5V-12V DIP24 DC/DC
Beta
⌘K
Isolated DC/DC Converters - Through Hole 3W 5V-12V DIP24 DC/DC
Isolated DC/DC Converters - Through Hole 3W 5V-12V DIP24 DC/DC
Isolated DC/DC Converters - Through Hole 3W 5V-12V DIP24 DC/DC
| Part | Voltage - Input (Min) | Power (Watts) | Voltage - Isolation | Efficiency | Package Leads | Package Name | Mounting Type | Number of Outputs | Voltage - Output 1 | Size / Dimension Height | Size / Dimension Length | Size / Dimension Width | Voltage - Input (Max) | Applications | Type | Operating Temperature (Min) | Operating Temperature (Max) | Current - Output (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Murata Electronics | 4.5 V | 3 W | 1000 Vrms | 72 % | 8 Leads | 24-DIP Module | Through Hole | 1 | 9 V | 0.27 in | 1.27 in | 0.58 in | 9 V | ITE (Commercial) | Isolated Module | -40 °C | 85 °C | 333 mA |
 Murata Electronics | 4.5 V | 3 W | 1000 Vrms | 71 % | 8 Leads | 24-DIP Module | Through Hole | 1 | 12 V | 0.27 in | 1.27 in | 0.58 in | 9 V | ITE (Commercial) | Isolated Module | -40 °C | 85 °C | 250 mA |
 Murata Electronics | 4.5 V | 3 W | 1000 Vrms | 73 % | 8 Leads | 24-DIP Module | Through Hole | 1 | 15 V | 0.27 in | 1.27 in | 0.58 in | 9 V | ITE (Commercial) | Isolated Module | -40 °C | 85 °C | 200 mA |
