17-2100 Series
Manufacturer: McGill Microwave Systems
Beta
⌘K

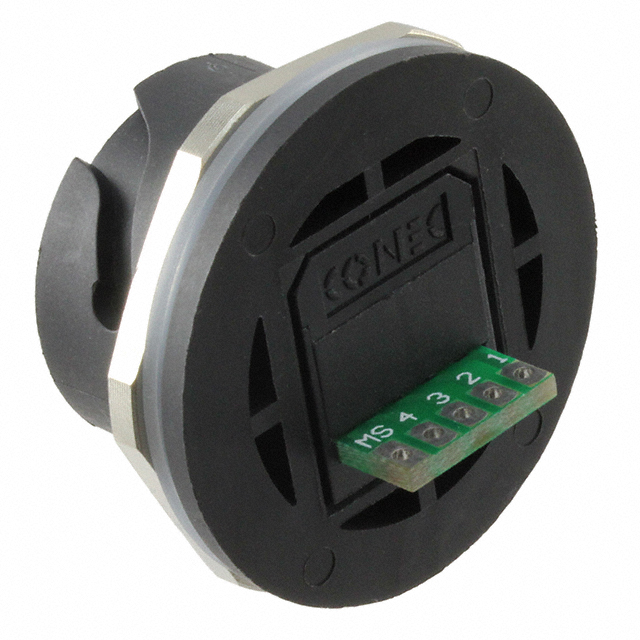

CONN RCP USB2.0 TYPEA 4P PNL MNT
| Part | Material Flammability Rating | Shell/Shielding Material | Insulation Color | Contact Finish | Mounting Feature | Termination | Gender | Shielding | Features | Specifications | Mounting Type | Voltage - Rated | Number of Ports | Ingress Protection Description | Ingress Protection IP Rating | Operating Temperature (Min) | Operating Temperature (Max) | Current Rating | Number of Contacts | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | UL94 V-0 | Copper Alloy | Black | Gold | Bulkhead Front Side Nut | PC Board | Receptacle | Shielded | Circular Bayonet Coupling Potted | USB 2.0 | Panel Mount | 30 VAC | 1 | Dust Tight Waterproof | IP67 | -40 °C | 85 °C | 1.5 A | 4 | USB-A (USB TYPE-A) |
 McGill Microwave Systems | UL94 V-0 | Copper Alloy | Black | Gold | Bulkhead Front Side Nut | PC Board | Receptacle | Shielded | Circular Bayonet Coupling | USB 2.0 | Panel Mount | 30 VAC | 1 | Dust Tight Waterproof | IP67 | -40 °C | 85 °C | 1.5 A | 4 | USB-A (USB TYPE-A) |
 McGill Microwave Systems | UL94 V-0 | Copper Alloy | Black | Gold | Bulkhead Front Side Nut | PC Board | Receptacle | Shielded | Circular Bayonet Coupling | USB 2.0 | Panel Mount | 30 VAC | 1 | Dust Tight Waterproof | IP67 | -40 °C | 85 °C | 1.5 A | 4 | USB-A (USB TYPE-A) |
 McGill Microwave Systems | UL94 V-0 | Copper Alloy | Black | Gold | Bulkhead Front or Rear Side Nut | PC Board | Receptacle | Shielded | Circular Bayonet Coupling Potted | USB 2.0 | Panel Mount | 30 VAC | 1 | Dust Tight Waterproof | IP67 | -40 °C | 85 °C | 1.5 A | 4 | USB-A (USB TYPE-A) |
McGill Microwave Systems | UL94 V-0 | Copper Alloy | Black | Gold | Bulkhead Front or Rear Side Nut | PC Board | Receptacle | Shielded | Circular Bayonet Coupling Potted | USB 2.0 | Panel Mount | 30 VAC | 1 | Dust Tight Waterproof | IP67 | -40 °C | 85 °C | 1.5 A | 4 | USB-A (USB TYPE-A) |
