3577 Series

Catalog

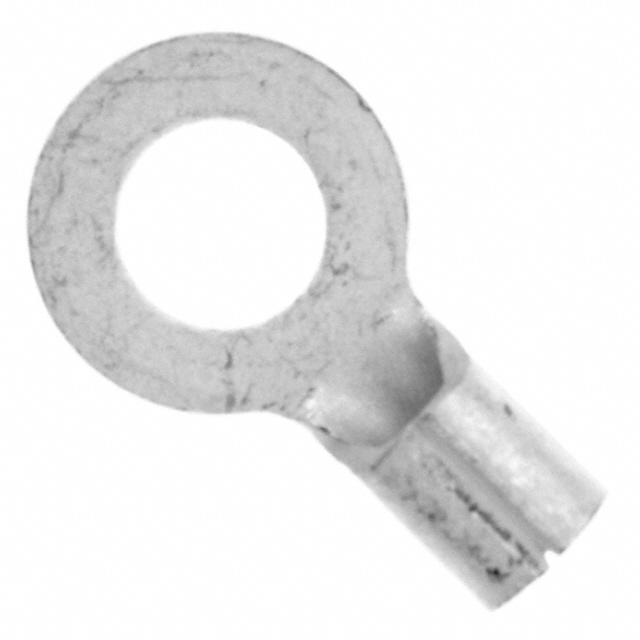

RING TONGUE TERMINAL 14-16AWG COPPER 21.97MM TIN LOOSE

Part	Width - Outer Edges	Contact Material	Stud/Tab Size	Terminal Type	Features	Length - Overall	Thickness	Mounting Type	Termination	Contact Finish	Insulation	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)
TE Connectivity AMP Connectors 35775	0.5 in	Copper	0.25 Stud	Circular	Brazed Seam Heavy Duty Serrated Termination	0.865 in	0.048 in	Free Hanging (In-Line)	Crimp	Tin	Non-Insulated	16 AWG	14 AWG
TE Connectivity AMP Connectors 35772	0.5 in	Copper	0.25 Stud	Circular	Brazed Seam Serrated Termination	0.865 in	0.039 in	Free Hanging (In-Line)	Crimp	Tin	Non-Insulated	12 AWG	10 AWG
TE Connectivity AMP Connectors 35771	0.5 in	Copper	10 Stud	Circular	Brazed Seam Serrated Termination	0.865 in	0.039 in	Free Hanging (In-Line)	Crimp	Tin	Non-Insulated	12 AWG	10 AWG
