5767081 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
CONN RCPT 266P SMD PALLAD-NICKEL
| Part | Number of Positions | Features | Mated Stacking Height Options | Height Above Board | Mounting Type | Contact Finish | Number of Rows | Contact Finish Thickness | Pitch | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 266 | Board Guide Ground Bus (Plane) | 10.92mm 12.57mm 17.96mm 18.75mm 20mm 22.86mm 6.6mm 9mm | 0.236 in | Surface Mount | Palladium-Nickel | 2 | 5 µin | 0.025 in | Center Strip Contacts Receptacle |
TE Connectivity AMP Connectors | 152 | Board Guide Ground Bus (Plane) | 10.92mm 12.57mm 17.96mm 18.75mm 20mm 22.86mm 6.6mm 9mm | 0.236 in | Surface Mount | Palladium-Nickel | 2 | 5 µin | 0.025 in | Center Strip Contacts Receptacle |
TE Connectivity AMP Connectors | 190 | Board Guide Ground Bus (Plane) | 10.92mm 12.57mm 17.96mm 18.75mm 20mm 22.86mm 6.6mm 9mm | 0.236 in | Surface Mount | Palladium-Nickel | 2 | 5 µin | 0.025 in | Center Strip Contacts Receptacle |

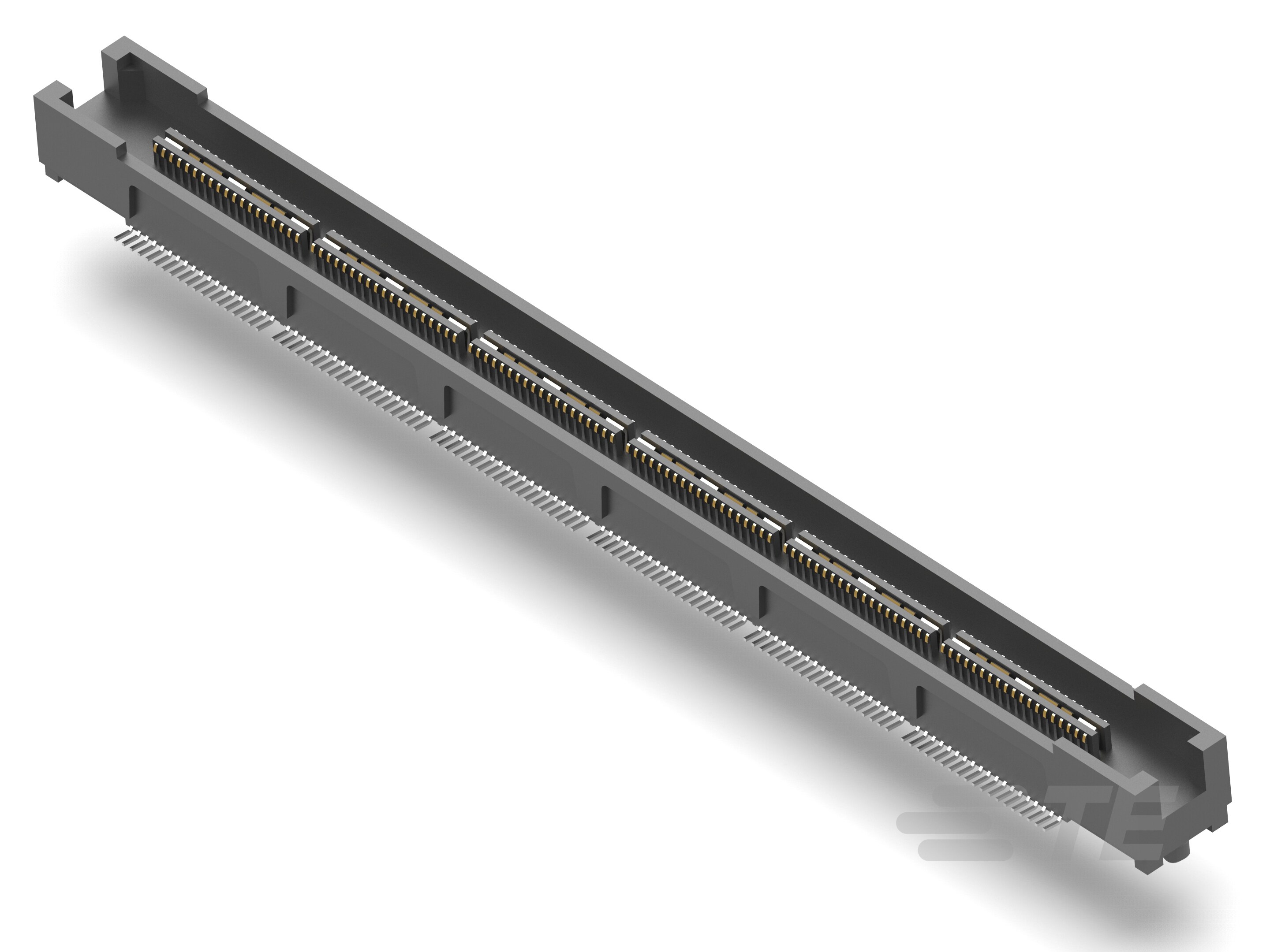

 TE Connectivity AMP Connectors | 228 | Board Guide Ground Bus (Plane) | 10.92mm 12.57mm 17.96mm 18.75mm 20mm 22.86mm 6.6mm 9mm | 0.236 in | Surface Mount | Palladium-Nickel | 2 | 5 µin | 0.025 in | Center Strip Contacts Receptacle |
