AD7864 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

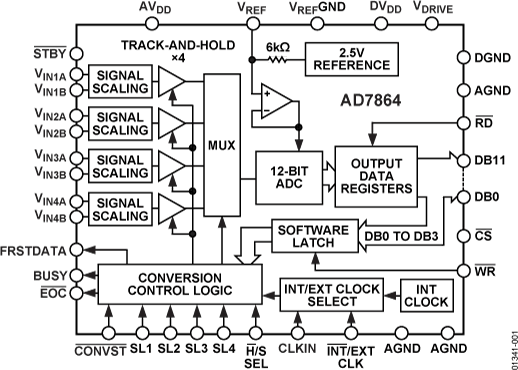

HIGH SPEED, LOW POWER, 4-CHANNEL SIMULTANEOUS SAMPLING, 12-BIT ADC

Part	Operating Temperature (Min)	Operating Temperature (Max)	Data Interface	Mounting Type	Features	Architecture	Ratio - S/H	Ratio - ADC	Reference Type	Package / Case	Package Length	Package Name	Package Width	Voltage - Supply, Analog	Number of A/D Converters	Configuration	Number of Inputs	Voltage - Supply, Digital	Number of Bits	Input Type	Sampling Rate (Per Second)
Analog Devices Inc./Maxim Integrated AD7864ASZ-3	-40 °C	85 °C	Parallel	Surface Mount	Simultaneous Sampling	SAR	4	1	External Internal	44-QFP	10 mm	44-MQFP	10 mm	5 V	1 count	H-MUX-ADC S	4	5 V	12 bits	Single Ended	520 kHz
Analog Devices Inc./Maxim Integrated AD7864AS-2	-40 °C	85 °C	Parallel	Surface Mount						44-QFP	10 mm	44-MQFP	10 mm		1 count				12 bits		520 kHz
Analog Devices Inc./Maxim Integrated AD7864BSZ-1	-40 °C	85 °C	Parallel	Surface Mount	Simultaneous Sampling	SAR	4	1	External Internal	44-QFP	10 mm	44-MQFP	10 mm	5 V	1 count	H-MUX-ADC S	4	5 V	12 bits	Single Ended	520 kHz
Analog Devices Inc./Maxim Integrated AD7864ASZ-1	-40 °C	85 °C	Parallel	Surface Mount	Simultaneous Sampling	SAR	4	1	External Internal	44-QFP	10 mm	44-MQFP	10 mm	5 V	1 count	H-MUX-ADC S	4	5 V	12 bits	Single Ended	520 kHz
Analog Devices Inc./Maxim Integrated AD7864BSZ-1REEL	-40 °C	85 °C	Parallel	Surface Mount	Simultaneous Sampling	SAR	4	1	External Internal	44-QFP	10 mm	44-MQFP	10 mm	5 V	1 count	H-MUX-ADC S	4	5 V	12 bits	Single Ended	520 kHz
Analog Devices Inc./Maxim Integrated AD7864ASZ-1REEL	-40 °C	85 °C	Parallel	Surface Mount	Simultaneous Sampling	SAR	4	1	External Internal	44-QFP	10 mm	44-MQFP	10 mm	5 V	1 count	H-MUX-ADC S	4	5 V	12 bits	Single Ended	520 kHz
Analog Devices Inc./Maxim Integrated AD7864ASZ-2REEL	-40 °C	85 °C	Parallel	Surface Mount	Simultaneous Sampling	SAR	4	1	External Internal	44-QFP	10 mm	44-MQFP	10 mm	5 V	1 count	H-MUX-ADC S	4	5 V	12 bits	Single Ended	520 kHz
Analog Devices Inc./Maxim Integrated AD7864ASZ-2	-40 °C	85 °C	Parallel	Surface Mount	Simultaneous Sampling	SAR	4	1	External Internal	44-QFP	10 mm	44-MQFP	10 mm	5 V	1 count	H-MUX-ADC S	4	5 V	12 bits	Single Ended	520 kHz
Analog Devices Inc./Maxim Integrated AD7864ASZ-3REEL	-40 °C	85 °C	Parallel	Surface Mount	Simultaneous Sampling	SAR	4	1	External Internal	44-QFP	10 mm	44-MQFP	10 mm	5 V	1 count	H-MUX-ADC S	4	5 V	12 bits	Single Ended	520 kHz
