Q-0D03H0 Series

Catalog

CBL ASSY BNC-SMB PLUG-JACK 6'

Part	2nd Contact Gender	Features	Overall Impedance	1st Contact Gender	2nd Connector	Cable Type	Style	Frequency - Max	2nd Connector Mounting Type	2nd Connector Mounting Feature	1st Connector Mounting Type	1st Connector	Color	Length	Length (ft)

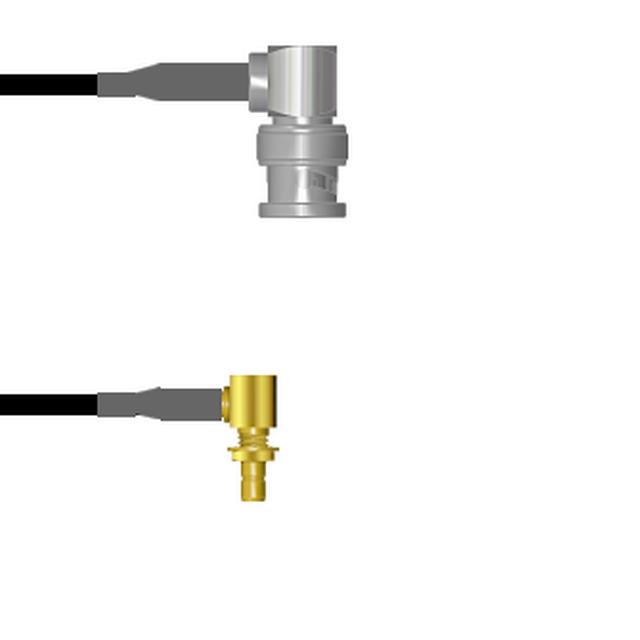

McGill Microwave Systems Q-0D03H0003072i	Female	Shielded	50 Ohms	Male	Right Angle SMB Jack	174 RG	BNC SMB	4 GHz	Panel Mount	Bulkhead - Front Side Nut	Free Hanging (In-Line)	BNC Plug Right Angle	Black	72 in

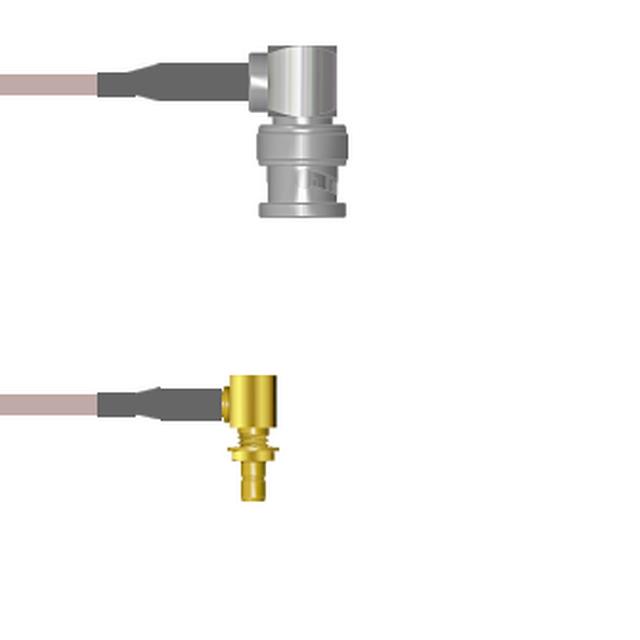

McGill Microwave Systems Q-0D03H0005003M	Female	Shielded	50 Ohms	Male	Right Angle SMB Jack	316 RG	BNC SMB	4 GHz	Panel Mount	Bulkhead - Front Side Nut	Free Hanging (In-Line)	BNC Plug Right Angle	Copper	118.1 in
McGill Microwave Systems Q-0D03H0003009i	Female	Shielded	50 Ohms	Male	Right Angle SMB Jack	174 RG	BNC SMB	4 GHz	Panel Mount	Bulkhead - Front Side Nut	Free Hanging (In-Line)	BNC Plug Right Angle	Black	228.6 mm
McGill Microwave Systems Q-0D03H0003001M	Female	Shielded	50 Ohms	Male	Right Angle SMB Jack	174 RG	BNC SMB	4 GHz	Panel Mount	Bulkhead - Front Side Nut	Free Hanging (In-Line)	BNC Plug Right Angle	Black	39.4 in
McGill Microwave Systems Q-0D03H0003002M	Female	Shielded	50 Ohms	Male	Right Angle SMB Jack	174 RG	BNC SMB	4 GHz	Panel Mount	Bulkhead - Front Side Nut	Free Hanging (In-Line)	BNC Plug Right Angle	Black		6.6 ft
McGill Microwave Systems Q-0D03H00030.5M	Female	Shielded	50 Ohms	Male	Right Angle SMB Jack	174 RG	BNC SMB	4 GHz	Panel Mount	Bulkhead - Front Side Nut	Free Hanging (In-Line)	BNC Plug Right Angle	Black	19.69 in
McGill Microwave Systems Q-0D03H0003.25M	Female	Shielded	50 Ohms	Male	Right Angle SMB Jack	174 RG	BNC SMB	4 GHz	Panel Mount	Bulkhead - Front Side Nut	Free Hanging (In-Line)	BNC Plug Right Angle	Black	9.843 in
McGill Microwave Systems Q-0D03H0005048i	Female	Shielded	50 Ohms	Male	Right Angle SMB Jack	316 RG	BNC SMB	4 GHz	Panel Mount	Bulkhead - Front Side Nut	Free Hanging (In-Line)	BNC Plug Right Angle	Copper	48 in
McGill Microwave Systems Q-0D03H0005084i	Female	Shielded	50 Ohms	Male	Right Angle SMB Jack	316 RG	BNC SMB	4 GHz	Panel Mount	Bulkhead - Front Side Nut	Free Hanging (In-Line)	BNC Plug Right Angle	Copper	84 in	7 ft
McGill Microwave Systems Q-0D03H0005012i	Female	Shielded	50 Ohms	Male	Right Angle SMB Jack	316 RG	BNC SMB	4 GHz	Panel Mount	Bulkhead - Front Side Nut	Free Hanging (In-Line)	BNC Plug Right Angle	Copper	12 in
