ADG5204 Series

Catalog

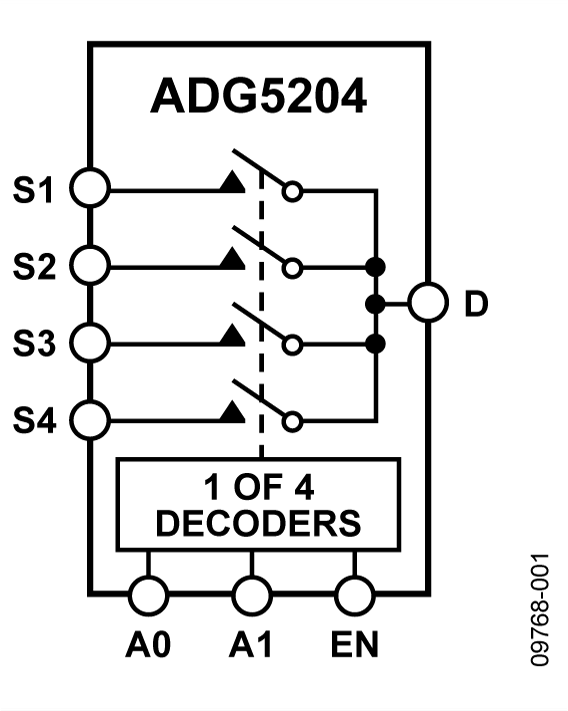

HIGH VOLTAGE, LATCH-UP PROOF, 4-CHANNEL MULTIPLEXER

Part	Number of Circuits	-3db Bandwidth	Operating Temperature (Max)	Operating Temperature (Min)	On-State Resistance (Max)	Channel-to-Channel Matching (ΔRon)	Switch Circuit Type	Voltage - Supply, Single (V+) (Maximum)	Voltage - Supply, Single (V+) (Minimum)	Mounting Type	Current - Leakage (Max)	Switch Time Toff (Max)	Switch Time Ton (Max)	Charge Injection	Voltage - Supply, Dual (Nominal)	Voltage - Supply, Dual (Minimum)	Voltage - Supply, Dual (Maximum)	Demultiplexer Outputs	Multiplexer Inputs	Crosstalk	Channel Capacitance (CD(off))	Channel Capacitance (CS(off))	Package Name	Package Width	Package Length	Package / Case
Analog Devices Inc./Maxim Integrated ADG5204BRUZ	1	150 MHz	125 °C	-40 °C	160 Ohms	4.5 Ohm	SP4T	40 V	9 V	Surface Mount	100 pA	175 ns	185 ns	-0.6 pC	9 V	-9 V	22 V	1	4	-80 dB	26 pF	3 pF	14-TSSOP	4.4 mm	0.173 in
Analog Devices Inc./Maxim Integrated ADG5204BCPZ-RL7	1	150 MHz	125 °C	-40 °C	160 Ohms	4.5 Ohm	SP4T	40 V	9 V	Surface Mount	100 pA	175 ns	185 ns	-0.6 pC	9 V	-9 V	22 V	1	4	-80 dB	26 pF	3 pF	16-LFCSP-WQ	4 mm	4 mm	16-WQFN Exposed Pad CSP
Analog Devices Inc./Maxim Integrated ADG5204BRUZ-RL7	1	150 MHz	125 °C	-40 °C	160 Ohms	4.5 Ohm	SP4T	40 V	9 V	Surface Mount	100 pA	175 ns	185 ns	-0.6 pC	9 V	-9 V	22 V	1	4	-80 dB	26 pF	3 pF	14-TSSOP	4.4 mm	0.173 in
