AHDBM04 Series

Catalog

SIZE 24, 9 POSITION ISOBUS RECEP

Part	Shielding	Contact Shape	Operating Temperature (Max)	Operating Temperature (Min)	Housing Color	Connector Type	Type	Orientation	Ingress Protection Description	Ingress Protection IP Rating	Number of Positions	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Note	Fastening Type	Insert Material	Shell Finish	Contact Size	Mounting Type	Shell Material	Contact Type	Primary Material	Mounting Feature	Features	Includes Total Count	Includes

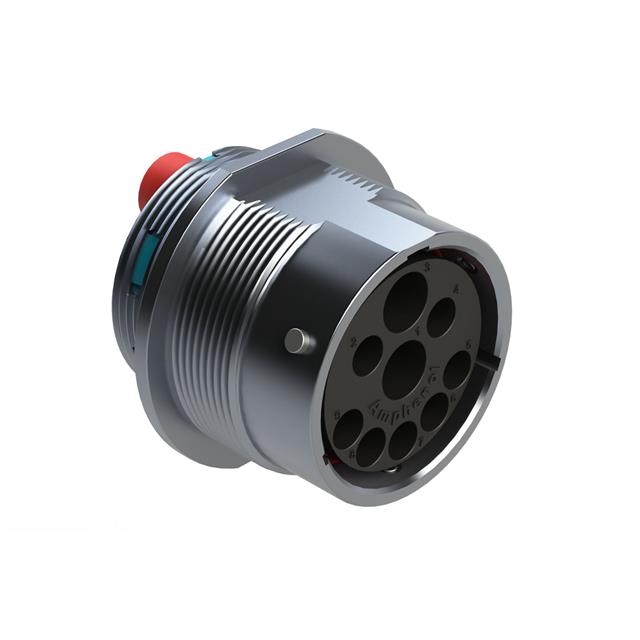

McGill Microwave Systems AHDBM04-24-91PR16	Unshielded	Circular	125 °C	-55 °C	Black	Receptacle Housing	For Male Pins	Keyed	Dust Tight Water Resistant Waterproof	IP68 IP69K	9	91	24	Contacts Not Included Jam Nut Not Included	Bayonet Lock	Thermoplastic	Anodized	8 12 16	Panel Mount	Aluminum Alloy	Crimp	Metal	Bulkhead Front Side Nut
McGill Microwave Systems AHDBM04-24-91PN-059	Unshielded	Circular	125 °C	-55 °C	Black	Receptacle Housing	For Male Pins	Keyed	Dust Tight Water Resistant Waterproof	IP68 IP69K	9	91	24	Contacts Not Included Jam Nut Not Included	Bayonet Lock	Thermoplastic	Anodized	8 12 16	Panel Mount	Aluminum Alloy	Crimp	Metal	Bulkhead Front Side Nut	Backshell Cable Clamp	2 pcs	Backshell Connector
McGill Microwave Systems AHDBM04-24-91PR	Unshielded	Circular	125 °C	-55 °C	Black	Receptacle Housing	For Male Pins	Keyed	Dust Tight Water Resistant Waterproof	IP68 IP69K	9	91	24	Contacts Not Included Jam Nut Not Included	Bayonet Lock	Thermoplastic	Anodized	8 12 16	Panel Mount	Aluminum Alloy	Crimp	Metal	Bulkhead Front Side Nut

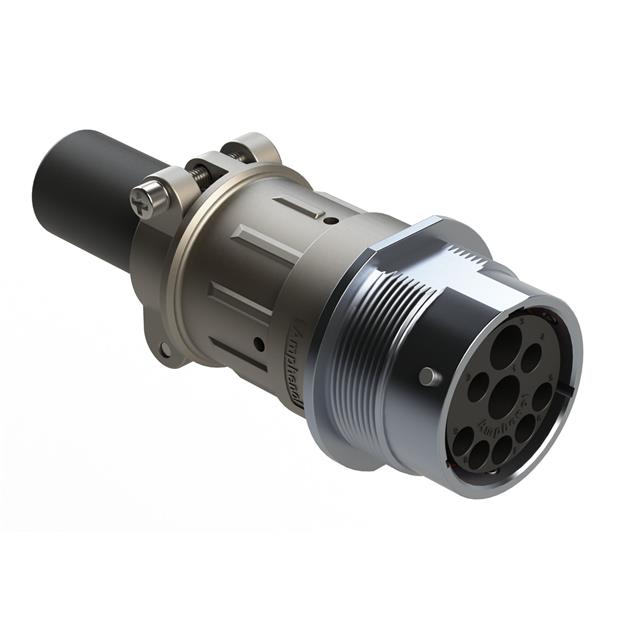

McGill Microwave Systems AHDBM04-24-91PR16-059	Unshielded	Circular	125 °C	-55 °C	Black	Receptacle Housing	For Male Pins	Keyed	Dust Tight Water Resistant Waterproof	IP67 IP69K	9	91	24	Contacts Not Included Jam Nut Not Included	Bayonet Lock	Thermoplastic	Anodized	8 12 16	Panel Mount	Aluminum Alloy	Crimp	Metal	Bulkhead Front Side Nut	Backshell Cable Clamp	2 pcs	Backshell Connector
McGill Microwave Systems AHDBM04-24-91PR-059	Unshielded	Circular	125 °C	-55 °C	Black	Receptacle Housing	For Male Pins	Keyed	Dust Tight Water Resistant Waterproof	IP67 IP69K	9	91	24	Contacts Not Included Jam Nut Not Included	Bayonet Lock	Thermoplastic	Anodized	8 12 16	Panel Mount	Aluminum Alloy	Crimp	Metal	Bulkhead Front Side Nut	Backshell Cable Clamp	2 pcs	Backshell Connector
