2985-60 Series
Manufacturer: McGill Microwave Systems
Beta
⌘K

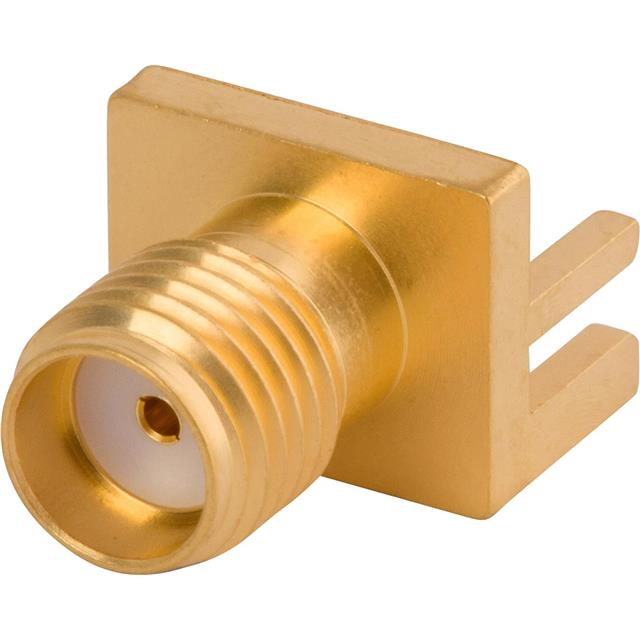

CONN SMA RCPT STR 50OHM EDGE MNT
| Part | Center Contact Plating | Mating Cycles | Body Finish | Body Material | Dielectric Material | Number of Ports | Fastening Type | Frequency - Max | Shield Termination | Mounting Type | Connector Type | Connector Style | Contact Termination | Impedance | Center Contact Material | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | Gold | 500 cycles | Gold | Stainless Steel | Polytetrafluoroethylene (PTFE) | 1 | Threaded | 18 GHz | Solder | Board Edge End Launch | Female Socket Recepture | SMA | Solder | 50 Ohm | Beryllium Copper | Gold |
 McGill Microwave Systems | Gold | 500 cycles | Gold | Stainless Steel | Polytetrafluoroethylene (PTFE) | 1 | Threaded | 18 GHz | Solder | Board Edge End Launch | Female Socket Recepture | SMA | Solder | 50 Ohm | Beryllium Copper | Gold |
McGill Microwave Systems | Gold | 500 cycles | Gold | Stainless Steel | Polytetrafluoroethylene (PTFE) | 1 | Threaded | 18 GHz | Solder | Board Edge End Launch | Female Socket Recepture | SMA | Solder | 50 Ohm | Beryllium Copper | Gold |
