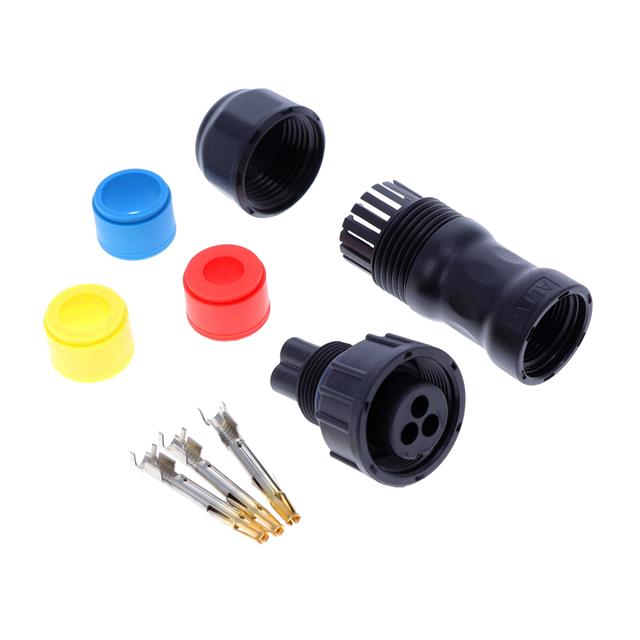

ACC-03BFFC Series
Manufacturer: McGill Microwave Systems
Beta
⌘K
F, F, CRIMP, 2LOCK
| Part | Color | Ingress Protection Description | Ingress Protection IP Rating | Features | Insert Material | Shell Size - Insert | Shell Material | Shielding | Orientation | Position Types | Number of Positions | Fastening Type | Backshell Material, Plating | Contact Material | Connector Type | Mounting Type | Contact Finish - Mating | Current Rating | Operating Temperature (Min) | Operating Temperature (Max) | Voltage Rating | Primary Material | Cable Opening (Min) | Cable Opening (Max) | Termination | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | Black | Dust Tight Waterproof | IP67 | Backshell | Glass Filled Nylon PA Polyamide | C | Glass Filled Nylon Polyamide (PA) | Unshielded | Keyed | Data | 3 | Threaded | Glass Filled Nylon Polyamide (PA) | Copper Alloy | Female Sockets Plug | Free Hanging (In-Line) | Gold | 20 A | -40 °C | 105 °C | 250 V | Plastic | 0.236 in | 0.315 in | Crimp | UL94 V-0 |
McGill Microwave Systems | Black | Dust Tight Waterproof | IP67 | Backshell | Glass Filled Nylon PA Polyamide | C | Glass Filled Nylon Polyamide (PA) | Unshielded | Keyed | Data | 3 | Threaded | Glass Filled Nylon Polyamide (PA) | Copper Alloy | Female Sockets Plug | Free Hanging (In-Line) | Gold | 20 A | -40 °C | 105 °C | 250 V | Plastic | 0.315 in | 0.394 in | Crimp | UL94 V-0 |
 McGill Microwave Systems | Black | Dust Tight Waterproof | IP67 | Backshell Coupling Nut | Glass Filled Nylon PA Polyamide | C | Glass Filled Nylon Polyamide (PA) | Unshielded | Keyed | Data | 3 | Bayonet Lock | Glass Filled Nylon Polyamide (PA) | Copper Alloy | Female Sockets Plug | Free Hanging (In-Line) | Gold | 20 A | -40 °C | 105 °C | 300 VAC/DC | Plastic | Crimp | UL94 V-0 | ||
McGill Microwave Systems | Black | Dust Tight Waterproof | IP67 | Backshell | Glass Filled Nylon PA Polyamide | C | Glass Filled Nylon Polyamide (PA) | Unshielded | Keyed | Data | 3 | Threaded | Glass Filled Nylon Polyamide (PA) | Copper Alloy | Female Sockets Plug | Free Hanging (In-Line) | Gold | 20 A | -40 °C | 105 °C | 250 V | Plastic | 0.394 in | 0.472 in | Crimp | UL94 V-0 |
McGill Microwave Systems | Black | Dust Tight Waterproof | IP67 | Backshell | Glass Filled Nylon PA Polyamide | C | Glass Filled Nylon Polyamide (PA) | Unshielded | Keyed | Data | 3 | Threaded | Glass Filled Nylon Polyamide (PA) | Copper Alloy | Female Sockets Plug | Free Hanging (In-Line) | Gold | 20 A | -40 °C | 105 °C | 250 V | Plastic | 0.394 in | 0.472 in | Crimp | UL94 V-0 |
 McGill Microwave Systems | Black | Dust Tight Waterproof | IP67 | Backshell Coupling Nut | Glass Filled Nylon PA Polyamide | C | Glass Filled Nylon Polyamide (PA) | Unshielded | Keyed | Data | 3 | Bayonet Lock | Glass Filled Nylon Polyamide (PA) | Copper Alloy | Female Sockets Plug | Free Hanging (In-Line) | Gold | 20 A | -40 °C | 105 °C | 300 VAC/DC | Plastic | Crimp | UL94 V-0 | ||
McGill Microwave Systems | Black | Dust Tight Waterproof | IP67 | Backshell | Glass Filled Nylon PA Polyamide | C | Glass Filled Nylon Polyamide (PA) | Unshielded | Keyed | Data | 3 | Threaded | Glass Filled Nylon Polyamide (PA) | Copper Alloy | Female Sockets Plug | Free Hanging (In-Line) | Gold | 20 A | -40 °C | 105 °C | 250 V | Plastic | 0.315 in | 0.394 in | Crimp | UL94 V-0 |
McGill Microwave Systems | Black | Dust Tight Waterproof | IP67 | Backshell | Glass Filled Nylon PA Polyamide | C | Glass Filled Nylon Polyamide (PA) | Unshielded | Keyed | Data | 3 | Threaded | Glass Filled Nylon Polyamide (PA) | Copper Alloy | Female Sockets Plug | Free Hanging (In-Line) | Gold | 20 A | -40 °C | 105 °C | 250 V | Plastic | 0.236 in | 0.315 in | Crimp | UL94 V-0 |
