CB-04BMFA Series

Catalog

X-LOK, MIDDLE SIZE, 10A, 04 PINS

Part	Type	Features	Number of Positions	Shell Size - Insert	Housing Color	Contact Shape	Shell Material	Shielding	Fastening Type	Orientation	Contact Type	Operating Temperature (Min)	Operating Temperature (Max)	Insert Material	Connector Type	Mounting Type	Primary Material	Ingress Protection IP Rating	Ingress Protection Description	Note	Contact Finish - Mating	Position Types	Current Rating	Voltage Rating	Voltage Rating (Type)	Cable Opening (Min)	Cable Opening (Max)	Termination	Material Flammability Rating	Color	Contact Material	Shell Size (MIL)	Backshell Material, Plating
McGill Microwave Systems CB-04BMFA-QL8MN0	For Female Sockets	Backshell	4	C	Black	Circular	Thermoplastic	Unshielded	Bayonet Lock	Keyed	Crimp	-40 °C	105 °C	Thermoplastic	Plug Housing	Free Hanging (In-Line)	Plastic	IP68	Dust Tight Waterproof	Contacts Not Included

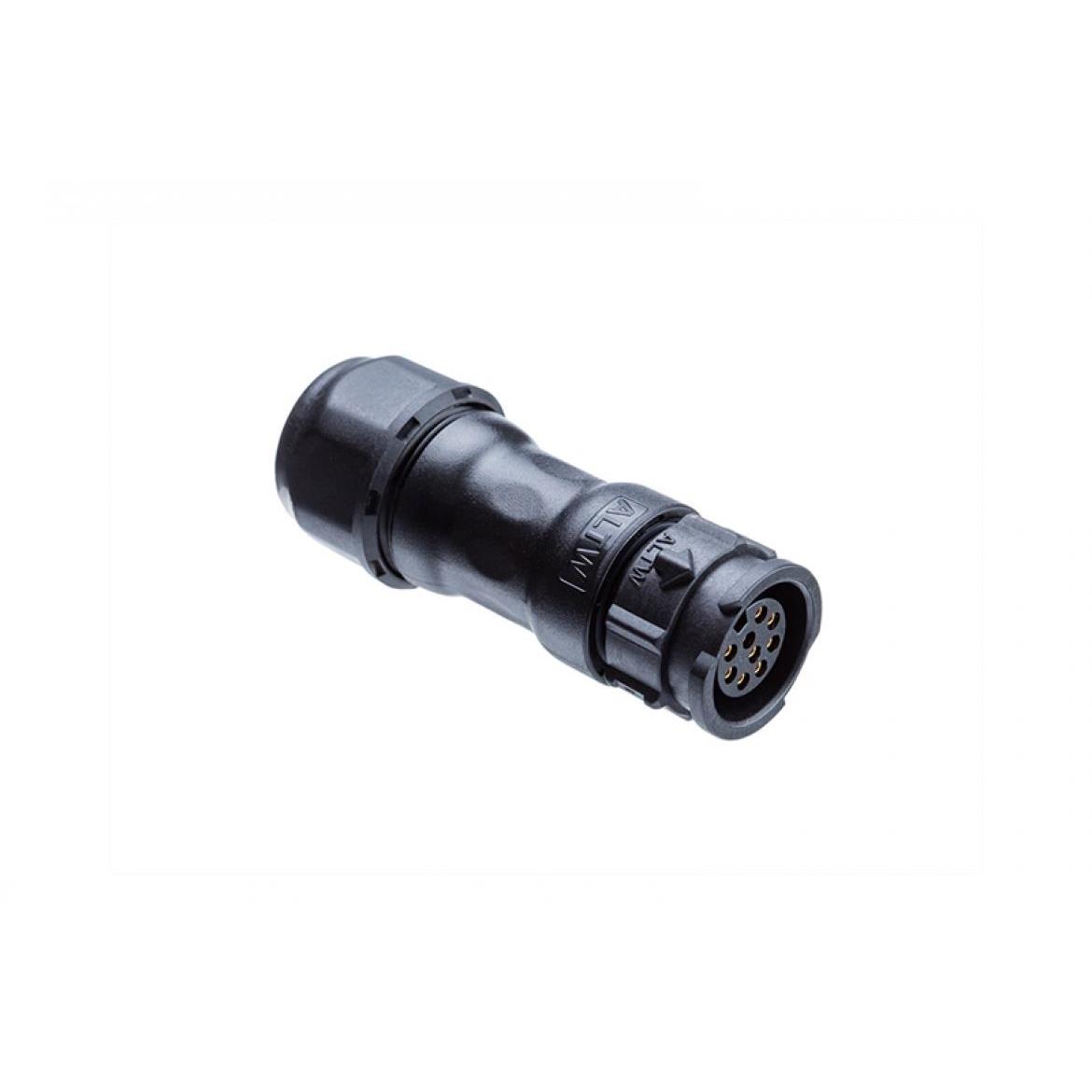

McGill Microwave Systems CB-04BMFA-QL8SP0		Backshell	4	C			Glass Filled Nylon Polyamide (PA)	Unshielded	Push-Pull	Keyed		-40 °C	105 °C	Glass Filled Nylon PA Polyamide	Female Sockets Plug	Free Hanging (In-Line)	Plastic	IP68	Dust Tight Waterproof		Gold	Data	10 A	300 VAC/DC	DC	0.236 in	0.315 in	Screw	UL94 V-0	Black	Copper Alloy
McGill Microwave Systems CB-04BMFA-QL8AN0	For Female Sockets	Backshell	4	C	Black	Circular	Thermoplastic	Unshielded	Bayonet Lock	Keyed	Crimp	-40 °C	105 °C	Thermoplastic	Plug Housing	Free Hanging (In-Line)	Plastic	IP68	Dust Tight Waterproof	Contacts Not Included												C
McGill Microwave Systems CB-04BMFA-QL8AP0		Backshell	4	C			Thermoplastic	Unshielded	Bayonet Lock	Keyed		-40 °C	105 °C	Thermoplastic	Female Sockets Plug	Free Hanging (In-Line)	Plastic	IP68	Dust Tight Waterproof		Gold		10 A	300 VAC/DC				Crimp		Black	Copper Alloy		Thermoplastic
McGill Microwave Systems CB-04BMFA-QL8SN0	For Female Sockets	Backshell	4	C	Black	Circular	Thermoplastic	Unshielded	Bayonet Lock	Keyed	Crimp	-40 °C	105 °C	Thermoplastic	Plug Housing	Free Hanging (In-Line)	Plastic	IP68	Dust Tight Waterproof	Contacts Not Included
McGill Microwave Systems CB-04BMFA-QL8LN0	For Female Sockets	Backshell	4	C	Black	Circular	Thermoplastic	Unshielded	Bayonet Lock	Keyed	Crimp	-40 °C	105 °C	Thermoplastic	Plug Housing	Free Hanging (In-Line)	Plastic	IP68	Dust Tight Waterproof	Contacts Not Included
McGill Microwave Systems CB-04BMFA-QL8LP0		Backshell	4	C			Glass Filled Nylon Polyamide (PA)	Unshielded	Push-Pull	Keyed		-40 °C	105 °C	Glass Filled Nylon PA Polyamide	Female Sockets Plug	Free Hanging (In-Line)	Plastic	IP68	Dust Tight Waterproof		Gold	Data	10 A	300 VAC/DC	DC	0.394 in	0.472 in	Crimp	UL94 V-0	Black	Copper Alloy
