CY8C4247 Series

Manufacturer: INFINEON

Catalog

IC MCU 32BIT 128KB FLASH 68VFQFN

Part	Operating Temperature (Max)	Operating Temperature (Min)	Voltage - Supply (Vcc/Vdd) Maximum	Voltage - Supply (Vcc/Vdd) Minimum	Core Size (Bit Width)	Mounting Type	Converter Architecture	D/A Resolution (bits)	D/A Channels	A/D Channels	A/D Resolution (bits)	Core Processor	Oscillator Type	Speed	Package Length	Package Name	Package Width	Program Memory Depth (128KB)	Program Memory Size	Program Memory Width (128KB)	Package / Case	Number of I/O	Connectivity	RAM Size Width	RAM Size Depth	Program Memory Type	Peripherals	Core Configuration
INFINEON CY8C4247LTQ-M475	105 °C	-40 °C	5.5 V	1.71 V	32 Bit	Surface Mount	SAR	8 bit	4 count	1 count	12 bit	ARM® Cortex®-M0	Internal	48 MHz	8 mm	68-QFN	8 mm	128 K	128KB	8	68-VFQFN Exposed Pad	55	I2C IrDA LINbus Microwire SmartCard SPI SSP UART USART	8 bit	16 K	FLASH	Brown-out Detect Cap Sense LCD LVD POR PWM Reset SmartSense WDT	Single-Core
INFINEON CY8C4247AZQ-M485T	105 °C	-40 °C	5.5 V	1.71 V	32 Bit	Surface Mount	SAR	7 bit 8 bit	2 count	16 count	12 bit	ARM® Cortex®-M0	Internal	48 MHz	10 mm	64-TQFP	10 mm	128 K	128KB	8	64-LQFP	51	CANbus I2C IrDA LINbus Microwire SmartCard SPI SSP UART USART	8 bit	16 K	FLASH	Brown-out Detect CapSense DMA LCD LVD POR PWM Reset SmartSense WDT	Single-Core
INFINEON CY8C4247AXI-M485	85 °C	-40 °C	5.5 V	1.71 V	32 Bit	Surface Mount	SAR	8 bit	4 count	16 count	12 bit	ARM® Cortex®-M0	Internal	48 MHz	14 mm	64-TQFP	14 mm	128 K	128KB	8	64-LQFP	51	CANbus I2C IrDA LINbus Microwire SmartCard SPI SSP UART USART	8 bit	16 K	FLASH	Brown-out Detect Cap Sense LCD LVD POR PWM Reset SmartSense WDT
INFINEON CY8C4247LTI-L475	85 °C	-40 °C	5.5 V	1.71 V	32 Bit	Surface Mount	SAR	8 bit	4 count	16 count	12 bit	ARM® Cortex®-M0	Internal	48 MHz	8 mm	68-QFN	8 mm	128 K	128KB	8	68-VFQFN Exposed Pad	57	I2C IrDA LINbus Microwire SmartCard SPI SSP UART USART USB	8 bit	16 K	FLASH	Brown-out Detect Cap Sense DMA LVD POR PWM Reset SmartSense WDT	Single-Core
INFINEON CY8C4247AZI-L445	85 °C	-40 °C	5.5 V	1.71 V	32 Bit	Surface Mount		7 bit 8 bit	2 count	16 count	12 bit	ARM® Cortex®-M0	Internal	48 MHz	10 mm	64-TQFP	10 mm	128 K	128KB	8	64-LQFP	53	I2C IrDA LINbus Microwire SmartCard SPI SSP UART USART USB	8 bit	16 K	FLASH	Brown-out Detect CapSense DMA LVD POR PWM Reset SmartSense WDT	Single-Core
INFINEON CY8C4247BZI-L479T	85 °C	-40 °C	5.5 V	1.71 V	32 Bit	Surface Mount	SAR	8 bit	4 count	16 count	12 bit	ARM® Cortex®-M0	Internal	48 MHz	9 mm	124-VFBGA	9 mm	128 K	128KB	8	124-VFBGA	98	I2C IrDA LINbus Microwire SmartCard SPI SSP UART USART USB	8 bit	16 K	FLASH	Brown-out Detect Cap Sense DMA LVD POR PWM Reset SmartSense WDT	Single-Core

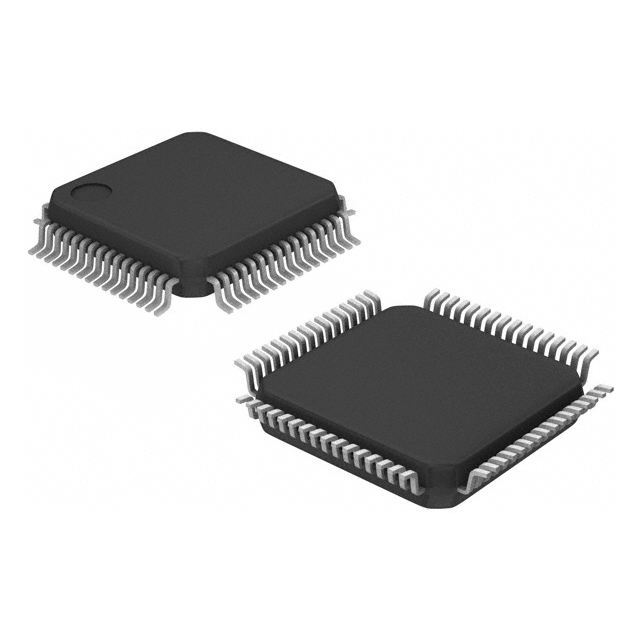

INFINEON CY8C4247AXQ-M485	105 °C	-40 °C	5.5 V	1.71 V	32 Bit	Surface Mount	SAR	7 bit 8 bit	2 count	16 count	12 bit	ARM® Cortex®-M0	Internal	48 MHz	14 mm	64-TQFP	14 mm	128 K	128KB	8	64-LQFP	51	CANbus I2C IrDA LINbus Microwire SmartCard SPI SSP UART USART	8 bit	16 K	FLASH	Brown-out Detect CapSense DMA LCD LVD POR PWM Reset SmartSense WDT	Single-Core
INFINEON CY8C4247BZI-L479	85 °C	-40 °C	5.5 V	1.71 V	32 Bit	Surface Mount		7 bit 8 bit	2 count	16 count	12 bit	ARM® Cortex®-M0	Internal	48 MHz	9 mm	124-VFBGA	9 mm	128 K	128KB	8	124-VFBGA	98	I2C IrDA LINbus Microwire SmartCard SPI SSP UART USART USB	8 bit	16 K	FLASH	Brown-out Detect CapSense DMA LCD LVD POR PWM Reset SmartSense WDT	Single-Core
INFINEON CY8C4247LQI-BL493	85 °C	-40 °C	5.5 V	1.71 V	32 Bit	Surface Mount				8 count	12 bit	ARM® Cortex®-M0	Internal	48 MHz	7 mm	56-QFN	7 mm	128 K	128KB	8	56-UFQFN Exposed Pad	36	I2C IrDA LINbus Microwire SmartCard SPI SSP UART USART	8 bit	16 K	FLASH	Bluetooth Brown-out Detect Cap Sense LCD LVD POR PWM Reset SmartCard SmartSense WDT	Single-Core
INFINEON CY8C4247FLI-BL493T	85 °C	-40 °C	5.5 V	1.71 V	32 Bit	Surface Mount				8 count	12 bit	ARM® Cortex®-M0	Internal	48 MHz	3.52 mm	68-WLCSP	3.91 mm	128 K	128KB	8	68-XFBGA WLCSP	36	I2C IrDA LINbus Microwire SmartCard SPI SSP UART USART	8 bit	16 K	FLASH	Bluetooth Brown-out Detect Cap Sense LCD LVD POR PWM Reset SmartCard SmartSense WDT	Single-Core
