AX3M Series

Catalog

XLR AUDIO CONNECTOR, PLUG, 3, CABLE MOUNT, METAL BODY, SILVER PLATED CONTACTS ROHS COMPLIANT: YES

Part	Features	Mounting Type	Orientation	Primary Material	Termination	Current Rating	Number of Positions	Operating Temperature (Min)	Operating Temperature (Max)	Shell Size - Insert	Shell Material	Fastening Type	Shell Finish	Ingress Protection	Connector Type	Contact Finish - Mating	Color	Shielding	Insert Material	Material Flammability Rating	Applications	Cable Opening (Min)	Cable Opening (Max)	Backshell Material, Plating	Contact Material

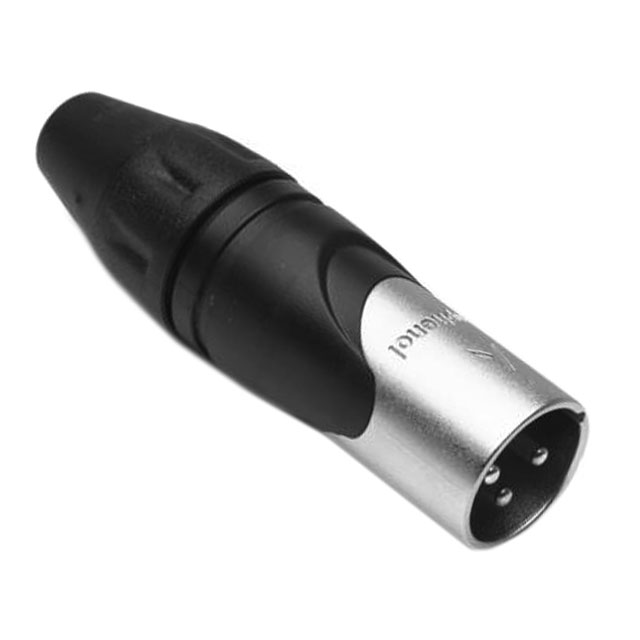

McGill Microwave Systems AX3M	Backshell Cable Clamp	Free Hanging (In-Line)	Keyed	Metal	Solder Cup	15 A	3	-25 °C	75 °C	XLR	Zinc Die Cast	Latch Holder	Nickel	IP40	Male Pins Receptacle	Silver	Silver
McGill Microwave Systems AX3M9M	Backshell Cable Clamp	Free Hanging (In-Line)	Keyed	Metal	Solder Cup	15 A	3	-25 °C	75 °C	XLR	Zinc Die Cast	Latch Holder	Nickel	IP40	Male Pins Receptacle	Silver	Silver
McGill Microwave Systems AX3MB9M-AU	Backshell Cable Clamp	Free Hanging (In-Line)	Keyed	Metal	Solder Cup	15 A	3	-25 °C	75 °C	XLR	Zinc Die Cast	Latch Holder	Black	IP40	Male Pins Receptacle	Gold	Black

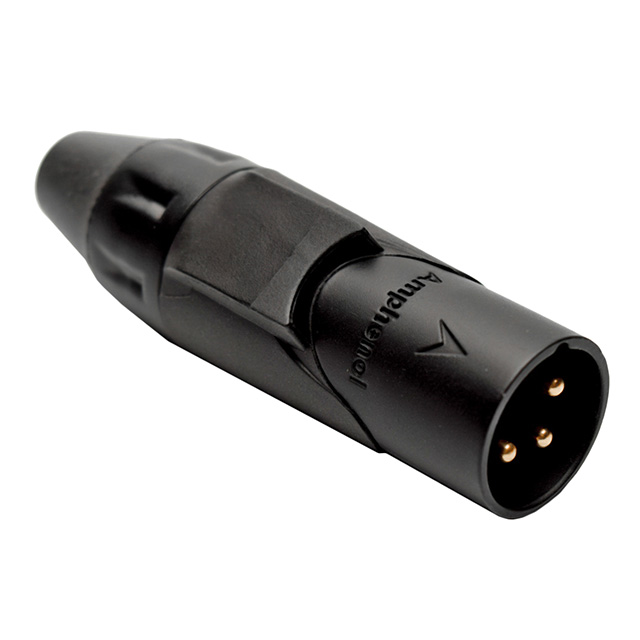

McGill Microwave Systems AX3MB BULK	Backshell Cable Clamp	Free Hanging (In-Line)	Keyed	Metal	Solder Cup	15 A	3	-25 °C	75 °C	XLR	Zinc Die Cast	Latch Holder	Black	IP40	Male Pins Receptacle	Silver	Black	Unshielded	Glass Filled Nylon 6/6 PA66 Polyamide	UL94 V-0	Audio	0.118 in	0.314 in	Polyphenylene Ether (PPE) Polystyrene (PS)	Brass

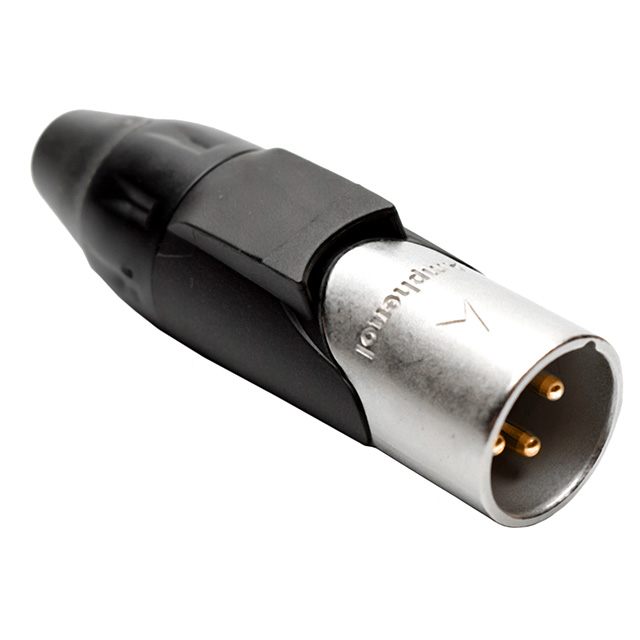

McGill Microwave Systems AX3M0M-AU	Backshell Cable Clamp	Free Hanging (In-Line)	Keyed	Metal	Solder Cup	15 A	3	-25 °C	75 °C	XLR	Zinc Die Cast	Latch Lock	Nickel	IP40	Male Pins Receptacle	Gold	Silver
McGill Microwave Systems AX3MB4M-AU	Backshell Cable Clamp	Free Hanging (In-Line)	Keyed	Metal	Solder Cup	15 A	3	-25 °C	75 °C	XLR	Zinc Die Cast	Latch Holder	Black	IP40	Male Pins Receptacle	Gold	Black
McGill Microwave Systems AX3M4M	Backshell Cable Clamp	Free Hanging (In-Line)	Keyed	Metal	Solder Cup	15 A	3	-25 °C	75 °C	XLR	Zinc Die Cast	Latch Holder	Nickel	IP40	Male Pins Receptacle	Silver	Silver
McGill Microwave Systems AX3M3M	Backshell Cable Clamp	Free Hanging (In-Line)	Keyed	Metal	Solder Cup	15 A	3	-25 °C	75 °C	XLR	Zinc Die Cast	Latch Holder	Nickel	IP40	Male Pins Receptacle	Silver	Silver
McGill Microwave Systems AX3MB5M-AU	Backshell Cable Clamp	Free Hanging (In-Line)	Keyed	Metal	Solder Cup	15 A	3	-25 °C	75 °C	XLR	Zinc Die Cast	Latch Holder	Black	IP40	Male Pins Receptacle	Gold	Black
