C09111H Series

Catalog

CONN CIRCULAR PIN 12 POS CRIMP ST CABLE MOUNT 12 TERMINAL 1 PORT

Part	Type	Operating Temperature (Max)	Operating Temperature (Min)	Connector Type	Number of Positions	Shell Size - Insert	Contact Shape	Shell Material	Contact Size	Fastening Type	Features	Orientation	Primary Material	Shielding	Contact Type	Material Flammability Rating	Insert Material	Ingress Protection IP Rating	Ingress Protection Description	Mounting Type	Note	Housing Color
McGill Microwave Systems C09111H0120005U	For Male Pins	100 °C	-40 °C	Plug Housing	12	M16-12	Circular	Thermoplastic	1 mm	Threaded	Backshell Coupling Nut	Keyed	Plastic	Unshielded	Crimp	UL94 V-0	Thermoplastic	IP68	Dust Tight Waterproof	Free Hanging (In-Line)	Contacts Not Included	Black
McGill Microwave Systems C09111H0140005U	For Male Pins	100 °C	-40 °C	Plug Housing	14	M16-14	Circular	Thermoplastic	1 mm	Threaded	Backshell Coupling Nut	Keyed	Plastic	Unshielded	Crimp	UL94 V-0	Thermoplastic	IP68	Dust Tight Waterproof	Free Hanging (In-Line)	Contacts Not Included	Black
McGill Microwave Systems C09111H0140025U	For Male Pins	100 °C	-40 °C	Plug Housing	14	M16-14	Circular	Thermoplastic	1 mm	Threaded	Backshell Coupling Nut	Keyed	Plastic	Unshielded	Crimp	UL94 V-0	Thermoplastic	IP68	Dust Tight Waterproof	Free Hanging (In-Line)	Contacts Not Included	Black
McGill Microwave Systems C09111H0080005U	For Male Pins	100 °C	-40 °C	Plug Housing	8	M16-8	Circular	Thermoplastic	1.5 mm	Threaded	Backshell Coupling Nut	Keyed	Plastic	Unshielded	Crimp	UL94 V-0	Thermoplastic	IP68	Dust Tight Waterproof	Free Hanging (In-Line)	Contacts Not Included	Black

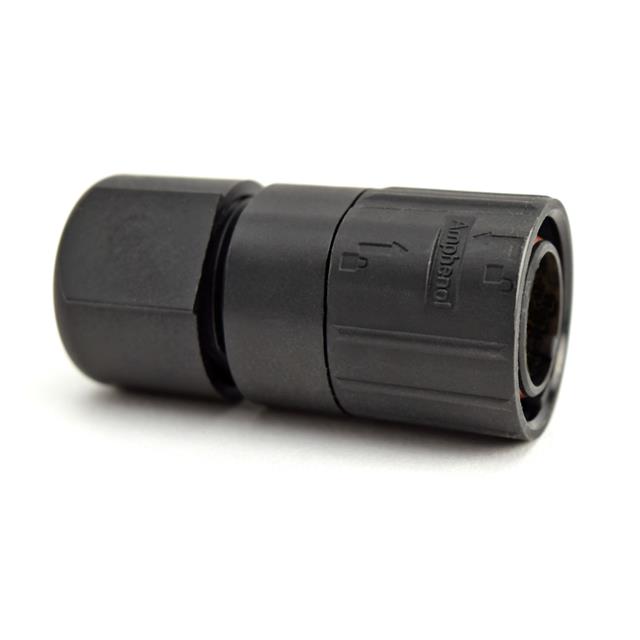

McGill Microwave Systems C09111H0080025U	For Male Pins	100 °C	-40 °C	Plug Housing	8	M16-8	Circular	Thermoplastic	1.5 mm	Threaded	Backshell Coupling Nut	Keyed	Plastic	Unshielded	Crimp	UL94 V-0	Thermoplastic	IP68	Dust Tight Waterproof	Free Hanging (In-Line)	Contacts Not Included	Black
McGill Microwave Systems C09111H1070005U	For Male Pins	100 °C	-40 °C	Plug Housing	7	M16-7	Circular	Thermoplastic	1.5 mm	Threaded	Backshell Coupling Nut	Keyed	Plastic	Unshielded	Crimp	UL94 V-0	Thermoplastic	IP68	Dust Tight Waterproof	Free Hanging (In-Line)	Contacts Not Included	Black
McGill Microwave Systems C09111H0040025U	For Male Pins	100 °C	-40 °C	Plug Housing	4	M16-4	Circular	Thermoplastic	1.5 mm	Threaded	Backshell Coupling Nut	Keyed	Plastic	Unshielded	Crimp	UL94 V-0	Thermoplastic	IP68	Dust Tight Waterproof	Free Hanging (In-Line)	Contacts Not Included	Black
McGill Microwave Systems C09111H0050025U	For Male Pins	100 °C	-40 °C	Plug Housing	5	M16-5	Circular	Thermoplastic	1.5 mm	Threaded	Backshell Coupling Nut	Keyed	Plastic	Unshielded	Crimp	UL94 V-0	Thermoplastic	IP68	Dust Tight Waterproof	Free Hanging (In-Line)	Contacts Not Included	Black
McGill Microwave Systems C09111H0120025U	For Male Pins	100 °C	-40 °C	Plug Housing	12	M16-12	Circular	Thermoplastic	1 mm	Threaded	Backshell Coupling Nut	Keyed	Plastic	Unshielded	Crimp	UL94 V-0	Thermoplastic	IP68	Dust Tight Waterproof	Free Hanging (In-Line)	Contacts Not Included	Black
McGill Microwave Systems C09111H0050005U	For Male Pins	100 °C	-40 °C	Plug Housing	5	M16-5	Circular	Thermoplastic	1.5 mm	Threaded	Backshell Coupling Nut	Keyed	Plastic	Unshielded	Crimp	UL94 V-0	Thermoplastic	IP68	Dust Tight Waterproof	Free Hanging (In-Line)	Contacts Not Included	Black
