61795 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

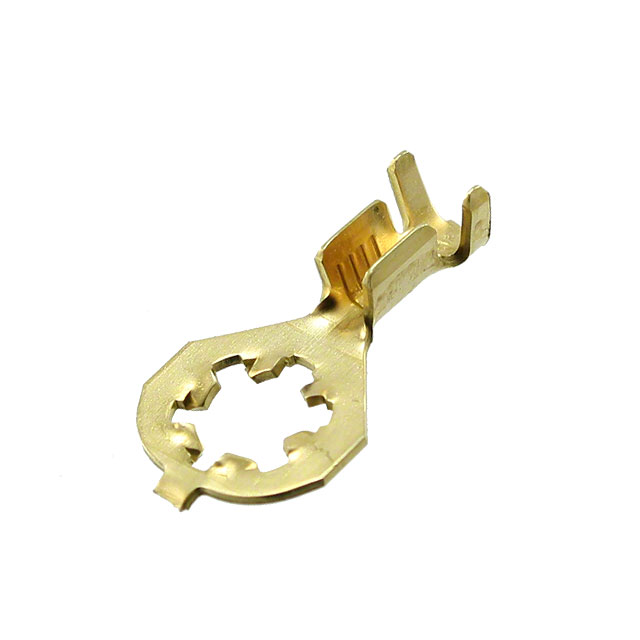

RING 18-14 105-145 #10 BR ROHS COMPLIANT: YES
| Part | Insulation Diameter (Min) | Insulation Diameter (Max) | Contact Material | Length - Overall | Termination | Width - Outer Edges | Stud/Tab Size | Wire Gauge (AWG) (Max) | Wire Gauge (AWG) (Min) | Insulation | Features | Terminal Type | Mounting Type | Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 0.105 in | 0.145 in | Brass | 0.772 in | Crimp | 0.445 in | 10 Stud | 18 AWG | 14 AWG | Non-Insulated | Inner Teeth Serrated Termination | Oval | Free Hanging (In-Line) | 0.025 in |
