7029-35 Series

Catalog

RF CABLE ASSEMBLIES SMA FEMALE BULKHEAD TO SMA MALE 6" CABLE ASSEMBLY FOR .085 CABLE

Part	1st Connector Mounting Type	Operating Temperature (Min)	Operating Temperature (Max)	1st Connector	Frequency - Max	1st Contact Gender	Length	Overall Impedance	2nd Connector Mounting Type	Cable Type Size	Cable Type	Cable Diameter	2nd Contact Gender	Style	2nd Connector	Features	Color	1st Connector Mounting Feature	Cable Outer Diameter

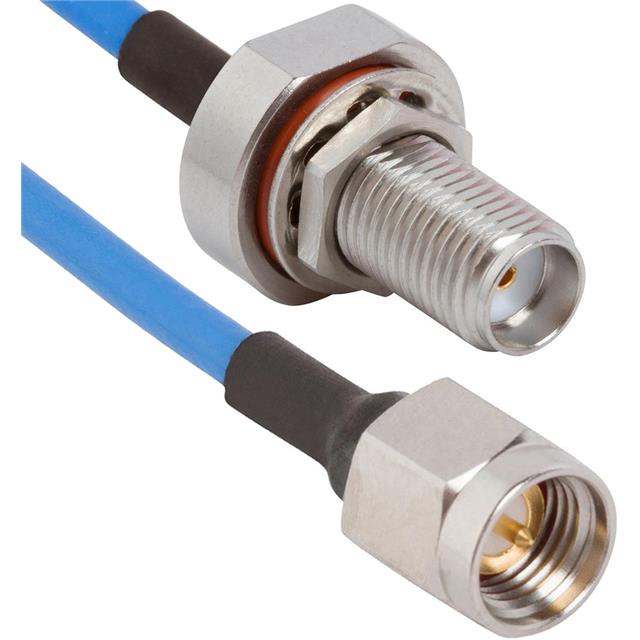

McGill Microwave Systems 7029-3541	Panel Mount	-65 °C	165 °C	SMA Jack	18 GHz	Female	0.5 ft	50 Ohms	Free Hanging (In-Line)	0.086 0.086 "	Rigid Cable Semi Semi-Rigid Cable	0.086 "	Male	SMA	SMA Plug	Shielded	Blue	Bulkhead Front Side Nut

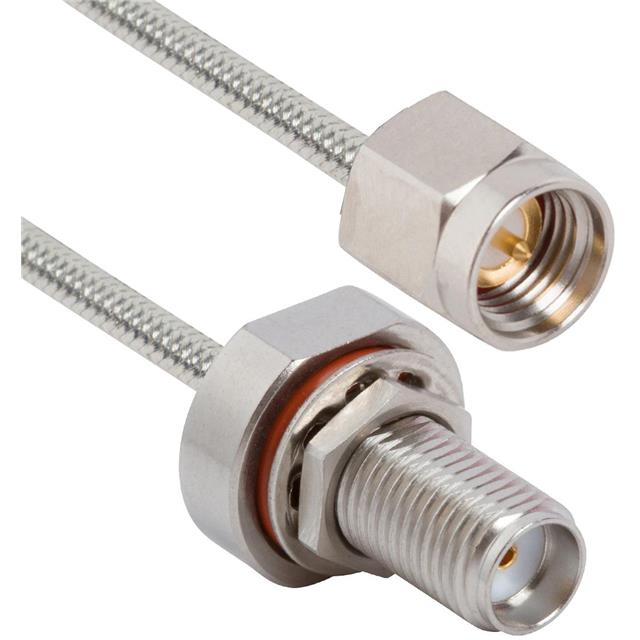

McGill Microwave Systems 7029-3580	Panel Mount	-65 °C	165 °C	SMA Jack	18 GHz	Female	0.5 ft	50 Ohms	Free Hanging (In-Line)	0.085	Flexible Cable	0.085 "	Male	SMA	SMA Plug	Shielded	Silver	Bulkhead Front Side Nut	0.085 "

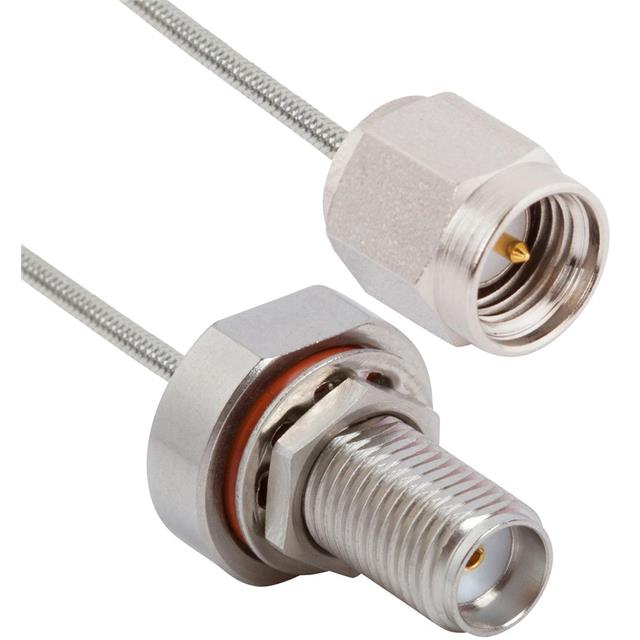

McGill Microwave Systems 7029-3579	Panel Mount	-65 °C	165 °C	SMA Jack	18 GHz	Female	0.5 ft	50 Ohms	Free Hanging (In-Line)	0.047 0.047 "	Flexible Cable	0.047 "	Male	SMA	SMA Plug	Shielded	Silver	Bulkhead Front Side Nut	0.047 "
