122A109 Series

Catalog

CONN DIN RCPT 48POS PNL MNT GOLD

Part	Material - Insulation	Current Rating	Material Flammability Rating	Operating Temperature (Max)	Operating Temperature (Min)	Level, Class	Number of Positions Loaded	Pitch	Number of Positions	Connector Type	Contact Finish	Mounting Type	Termination	Style	Number of Rows	Number of Positions Loaded
McGill Microwave Systems 122A10979X	Glass Filled PBT Polybutylene Terephthalate	5.5 A	UL94 V-0	125 °C	-55 °C	3	32	5.08 mm	48	Female Sockets Receptacle	Gold	Panel Mount Through Hole	Wire Wrap	F	3
McGill Microwave Systems 122A10919X	Glass Filled PBT Polybutylene Terephthalate	5.5 A	UL94 V-0	125 °C	-55 °C	3	16	5.08 mm	32	Female Sockets Receptacle	Gold	Panel Mount Through Hole	Wire Wrap	D	2
McGill Microwave Systems 122A10959X	Glass Filled PBT Polybutylene Terephthalate	5.5 A	UL94 V-0	125 °C	-55 °C	3	16	5.08 mm	32	Female Sockets Receptacle	Gold	Panel Mount	Solder Lug	D	2
McGill Microwave Systems 122A10939X	Glass Filled PBT Polybutylene Terephthalate	5.5 A	UL94 V-0	125 °C	-55 °C	3	16	5.08 mm	32	Female Sockets Receptacle	Gold	Panel Mount Through Hole	Solder	D	2

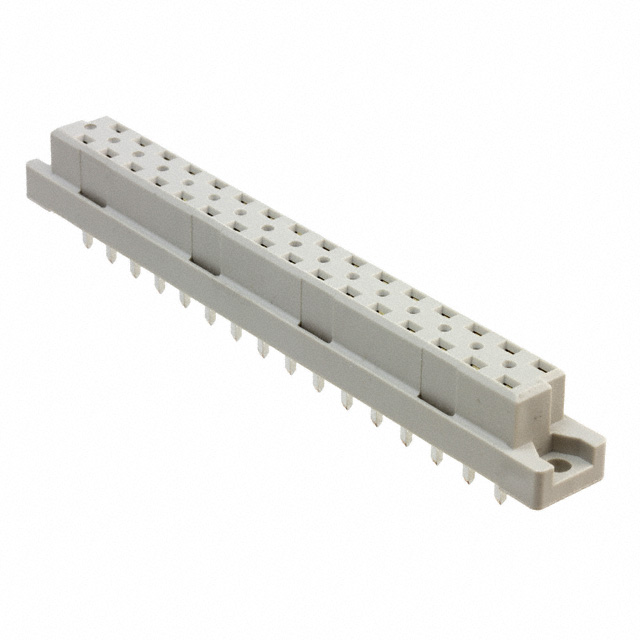

McGill Microwave Systems 122A10949X	Glass Filled PBT Polybutylene Terephthalate		UL94 V-0	125 °C	-55 °C	3		5.08 mm	32	Female Sockets Receptacle	Gold	Panel Mount Through Hole	Solder	D	2	All
McGill Microwave Systems 122A10999X	Glass Filled PBT Polybutylene Terephthalate	5.5 A	UL94 V-0	125 °C	-55 °C	3	48	5.08 mm	48	Female Sockets Receptacle	Gold	Panel Mount Through Hole	Wire Wrap	F	3
McGill Microwave Systems 122A10989X	Glass Filled PBT Polybutylene Terephthalate	5.5 A	UL94 V-0	125 °C	-55 °C	3	32	5.08 mm	48	Female Sockets Receptacle	Gold	Panel Mount Through Hole	Wire Wrap	F	3
McGill Microwave Systems 122A10929X	Glass Filled PBT Polybutylene Terephthalate	5.5 A	UL94 V-0	125 °C	-55 °C	3	32	5.08 mm	32	Female Sockets Receptacle	Gold	Panel Mount Through Hole	Wire Wrap	D	2
