EXB-F6 Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K

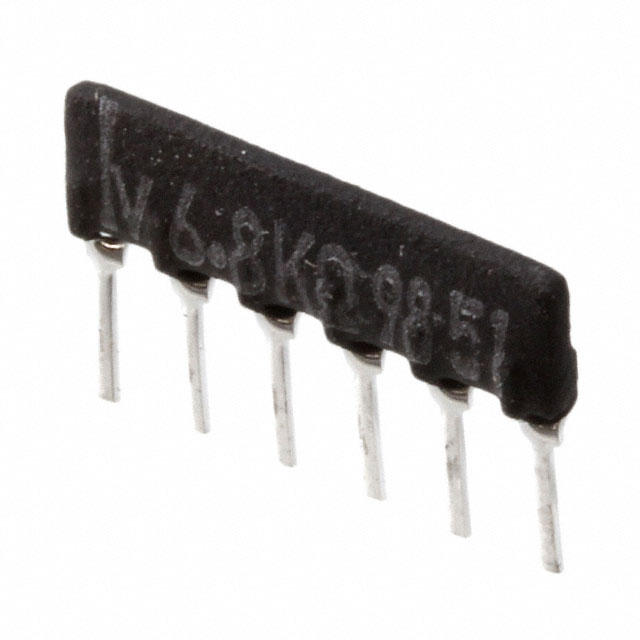

RES NETWORK 8 RES MULT OHM 6SIP
| Part | Tolerance | Resistance | Height - Seated (Max) | Circuit Type | Package / Case | Size / Dimension Length | Size / Dimension Width | Operating Temperature (Max) | Operating Temperature (Min) | Mounting Type | Package Name | Temperature Coefficient | Power Per Element | Number of Pins | Number of Resistors |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electronic Components | 2 % | 330 Ohm 470 Ohm | 0.195 in | Dual Terminator | 6-SIP | 0.586 in | 0.1 in | 125 °C | -55 °C | Through Hole | 6-SIP | 200 ppm/°C | 125 mW | 6 pins | 8 |
 Panasonic Electronic Components | 2 % | 330 Ohm 680 Ohm | 0.195 in | Dual Terminator | 6-SIP | 0.586 in | 0.1 in | 125 °C | -55 °C | Through Hole | 6-SIP | 200 ppm/°C | 125 mW | 6 pins | 8 |
Panasonic Electronic Components | 2 % | 470 kOhm | 0.195 in | Bussed | 6-SIP | 0.586 in | 0.1 in | 125 °C | -55 °C | Through Hole | 6-SIP | 200 ppm/°C | 125 mW | 6 pins | 5 |
