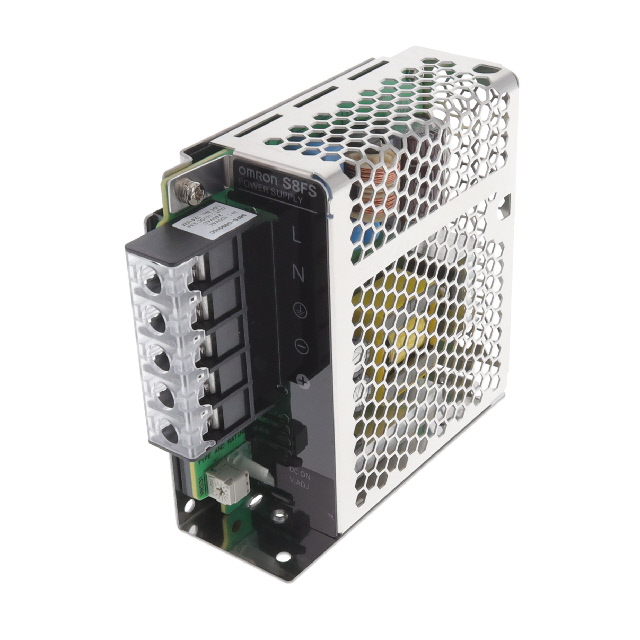

S8FS-G050 Series
Manufacturer: Omron Automation and Safety
Beta
⌘K
AC/DC CONVERTER 24V 50W
| Part | Size / Dimension Length | Size / Dimension Width | Size / Dimension Height | Voltage - Output 1 | Power (Watts) | Efficiency | Type | Number of Outputs | Operating Temperature (Max) | Operating Temperature (Min) | Applications | Voltage - Isolation | Mounting Type | Approval Agency | Features | Current - Output 1 | Voltage - Input (AC) Minimum | Voltage - Input (AC) Maximum | Voltage - Input (DC) Minimum | Voltage - Input (DC) Maximum | Input Type | Current - Output (Max) | AC Voltage - Input (Max) | AC Voltage - Input (Min) | DC Voltage - Input (Max) | DC Voltage - Input (Min) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Automation and Safety | 3.9 in | 3.82 in | 1.42 in | 24 V | 50 W | 89 % | Enclosed | 1 | 70 °C | -20 °C | ITE (Commercial) | 3 kV | Chassis Mount | CE cURus TUV UL | Adjustable Output DC Input Capable Universal Input | 2.2 A | 85 VAC | 264 V | ||||||||
 Omron Automation and Safety | 3.9 in | 3.82 in | 1.42 in | 15 V | 53 W | 88 % | Enclosed | 1 | 70 °C | -20 °C | Industrial ITE (Commercial) | 3 kV | Chassis Mount | CE cURus TUV UL | Adjustable Output Universal Input | 3.5 A | 85 VAC | 264 V | 120 V | 370 V | ||||||
 Omron Automation and Safety | 3.9 in | 1.42 in | 3.82 in | 5 V | 40 W | 82 % | Enclosed | 1 | 70 °C | -20 °C | Industrial ITE (Commercial) | 3 kV | Chassis Mount | CE cURus TUV UL | Adjustable Output Universal Input | 8 A | 85 VAC | 264 V | 120 V | 370 V | ||||||
 Omron Automation and Safety | 3.9 in | 1.46 in | 3.82 in | 5 V | 40 W | 82 % | 1 | 70 °C | -20 °C | ITE (Commercial) | 3 kV | CE cURus TUV UL | Adjustable Output Universal Input | AC | 8 A | 264 VAC | 85 VAC | |||||||||
 Omron Automation and Safety | 3.9 in | 1.46 in | 3.82 in | 12 V | 50 W | 86 % | 1 | 70 °C | -20 °C | ITE (Commercial) | 3 kV | CE cURus TUV UL | Adjustable Output Universal Input | AC | 4.3 A | 264 VAC | 85 VAC | |||||||||
 Omron Automation and Safety | 3.9 in | 1.46 in | 3.82 in | 15 V | 53 W | 88 % | 1 | 70 °C | -20 °C | Industrial ITE (Commercial) | 3 kV | CE cURus TUV UL | Adjustable Output Universal Input | AC AC or DC DC | 3.5 A | 264 VAC | 85 VAC | 370 V | 120 V | |||||||
 Omron Automation and Safety | 3.9 in | 3.82 in | 1.42 in | 12 V | 50 W | 86 % | Enclosed | 1 | 70 °C | -20 °C | ITE (Commercial) | 3 kV | Chassis Mount | CE cURus TUV UL | Adjustable Output DC Input Capable Universal Input | 4.3 A | 85 VAC | 264 V | ||||||||
 Omron Automation and Safety | 3.9 in | 1.46 in | 3.82 in | 24 V | 50 W | 89 % | 1 | 70 °C | -20 °C | ITE (Commercial) | 3 kV | CE cURus TUV UL | Adjustable Output Universal Input | AC | 2.2 A | 264 VAC | 85 VAC |
