2338245 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
HEADERS & WIRE HOUSINGS EP2.5 HDR 5P VERT BO SS,GREEN,UL
| Part | Contact Finish - Post | Contact Material | Pitch - Mating | Number of Positions Loaded | Contact Finish - Mating | Contact Type | Connector Type | Insulation Material | Contact Shape | Number of Positions | Contact Length - Post | Insulation Color | Termination | Number of Rows | Style | Fastening Type | Insulation Height | Shrouding | Features | Contact Length - Mating | Mounting Type | Material Flammability Rating | Current Rating | Voltage Rating | Operating Temperature (Min) | Operating Temperature (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Tin | Brass | 0.098 in | All | Tin | Male Pin | Header | Polybutylene Terephthalate (PBT) | Circular | 5 | 0.134 in | Green | Kinked Pin Solder | 1 | Board Cable/Wire | Locking Ramp | 0.346 in | Shrouded - 4 Wall | Board Guide | 0.142 in | Through Hole | UL94 V-0 | ||||

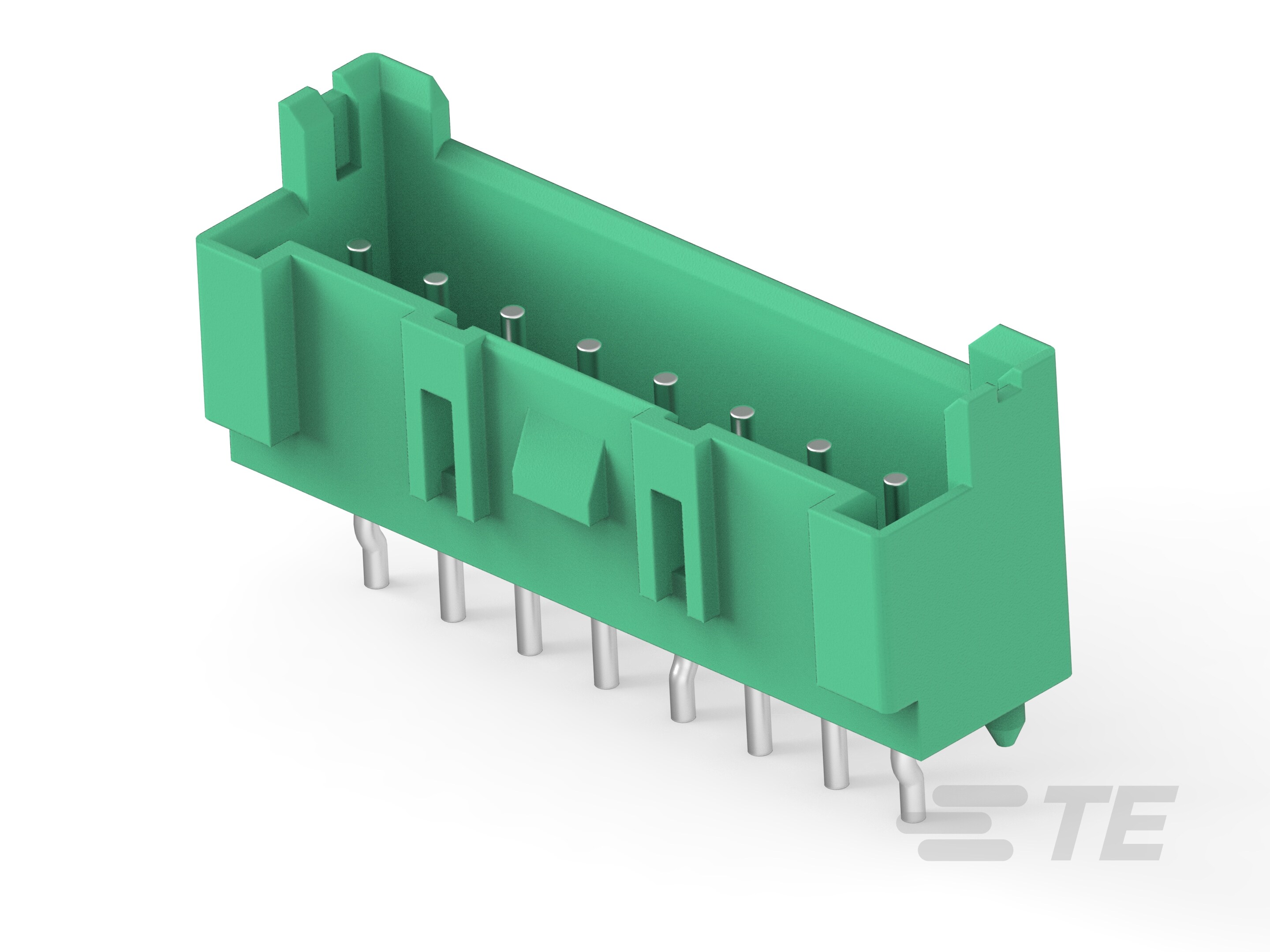

 TE Connectivity AMP Connectors | Tin | Brass | 0.098 in | All | Tin | Male Pin | Header | Polybutylene Terephthalate (PBT) | Circular | 8 | 0.134 in | Green | Kinked Pin Solder | 1 | Board Cable/Wire | Locking Ramp | 0.346 in | Shrouded - 4 Wall | Board Guide | 0.142 in | Through Hole | UL94 V-0 | 4.2 A | 250 V | -55 °C | 105 °C |
TE Connectivity AMP Connectors | Tin | Brass | 0.098 in | All | Tin | Male Pin | Header | Polybutylene Terephthalate (PBT) | Circular | 8 | 0.134 in | Black | Kinked Pin Solder | 1 | Board Cable/Wire | Locking Ramp | 0.346 in | Shrouded - 4 Wall | Board Guide | 0.142 in | Through Hole | UL94 V-0 | ||||

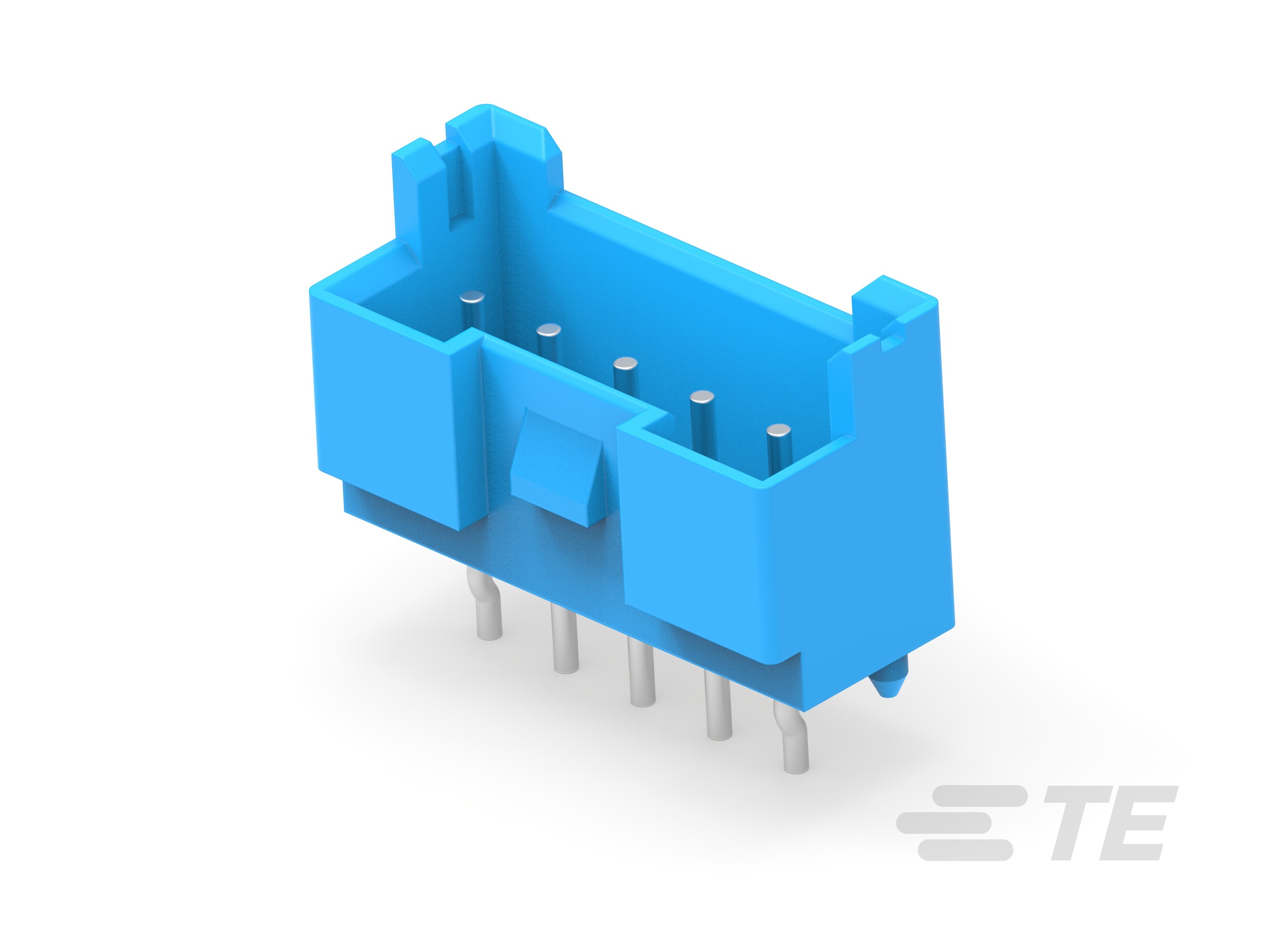

 TE Connectivity AMP Connectors | Tin | Brass | 0.098 in | All | Tin | Male Pin | Header | Polybutylene Terephthalate (PBT) | Circular | 5 | 0.134 in | Blue | Kinked Pin Solder | 1 | Board Cable/Wire | Locking Ramp | 0.346 in | Shrouded - 4 Wall | Board Guide | 0.142 in | Through Hole | UL94 V-0 | 4.2 A | 250 V | -55 °C | 105 °C |

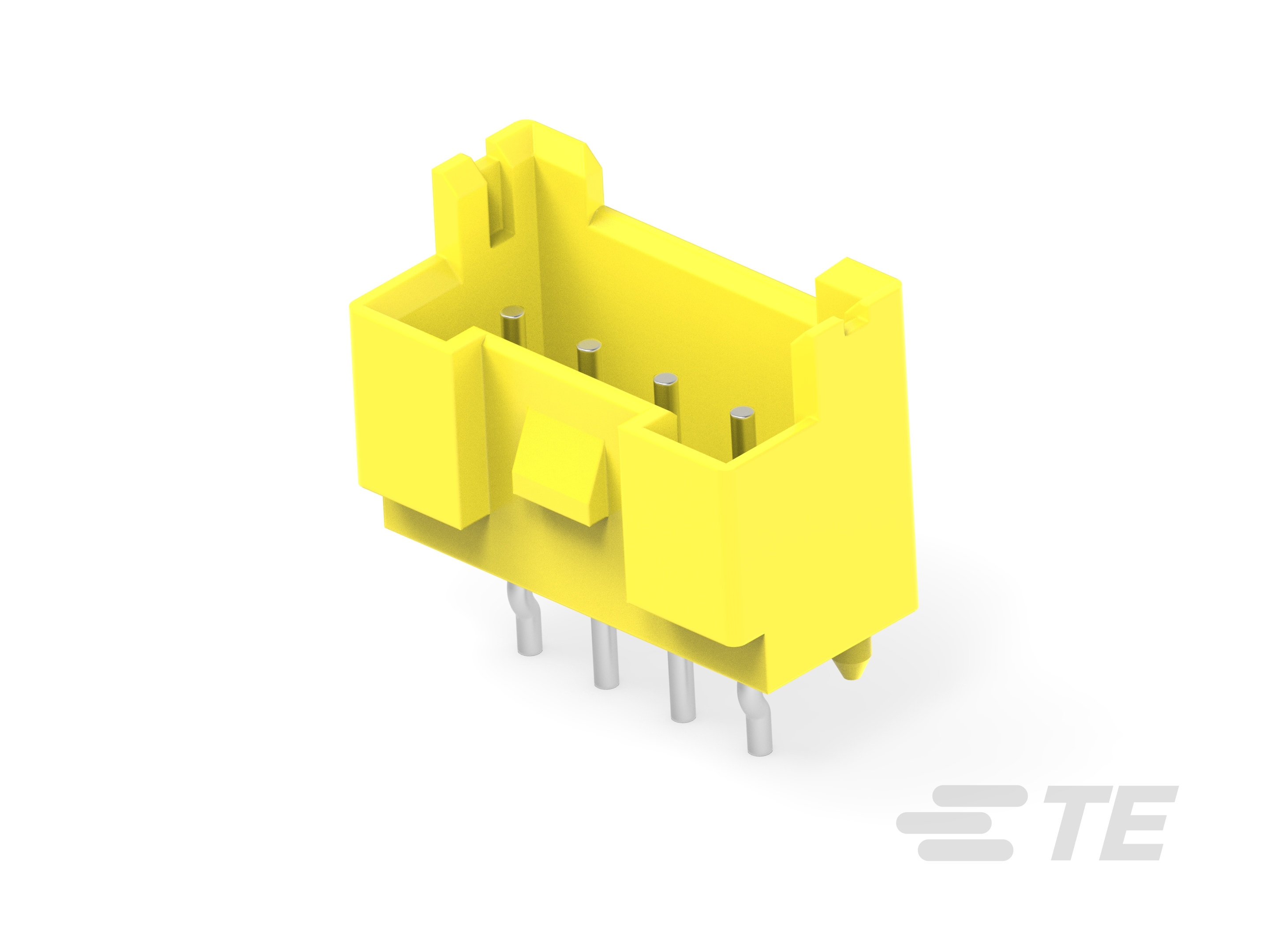

 TE Connectivity AMP Connectors | Tin | Brass | 0.098 in | All | Tin | Male Pin | Header | Polybutylene Terephthalate (PBT) | Circular | 4 | 0.134 in | Yellow | Kinked Pin Solder | 1 | Board Cable/Wire | Locking Ramp | 0.346 in | Shrouded - 4 Wall | Board Guide | 0.142 in | Through Hole | UL94 V-0 | ||||
 TE Connectivity AMP Connectors | Tin | Brass | 0.098 in | All | Tin | Male Pin | Header | Polybutylene Terephthalate (PBT) | Circular | 3 | 0.134 in | Yellow | Kinked Pin Solder | 1 | Board Cable/Wire | Locking Ramp | 0.346 in | Shrouded - 4 Wall | Board Guide | 0.142 in | Through Hole | UL94 V-0 |
