M39030/3 Series

Catalog

CONN TERMINATOR PLUG SMA 50 OHM

Part	Dielectric Material	Body Material	Frequency - Max	Contact Material	Contact Finish	Connector Style	Body Finish	Mounting Type	Connector Type	Impedance	Features
McGill Microwave Systems M39030/3-03S	Polytetrafluoroethylene (PTFE)	Stainless Steel	18 GHz	Beryllium Copper	Gold	SMA	Gold	Cap Free Hanging	Male Pin Plug	50 Ohm	Chain

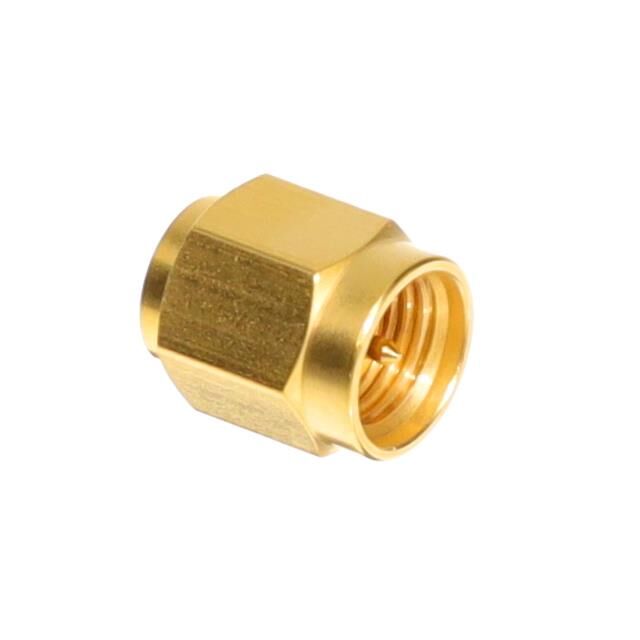

McGill Microwave Systems M39030/3-11S	Polytetrafluoroethylene (PTFE)	Stainless Steel	18 GHz	Beryllium Copper	Gold	SMA	Gold	Cap Free Hanging	Male Pin Plug	50 Ohm

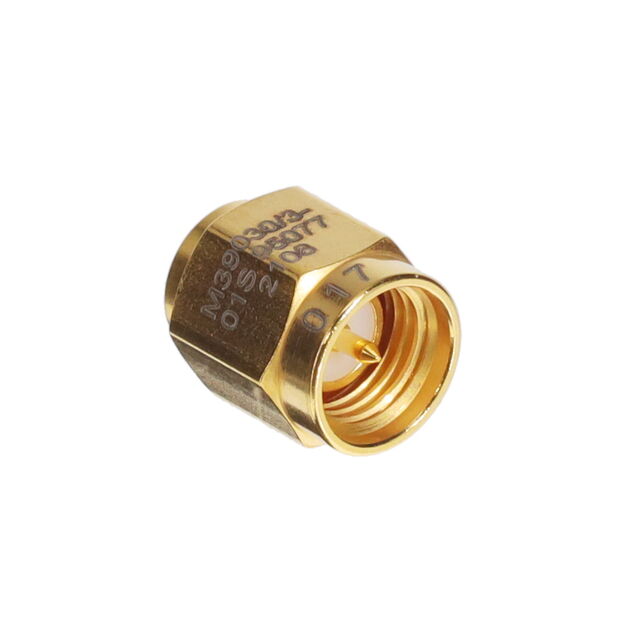

McGill Microwave Systems M39030/3-01S	Polytetrafluoroethylene (PTFE)	Stainless Steel	18 GHz	Beryllium Copper	Gold	SMA	Gold	Cap Free Hanging	Male Pin Plug	50 Ohm
McGill Microwave Systems M39030/3-11N	Polytetrafluoroethylene (PTFE)	Stainless Steel	18 GHz	Beryllium Copper	Gold	SMA	Gold	Cap Free Hanging	Male Pin Plug	50 Ohm

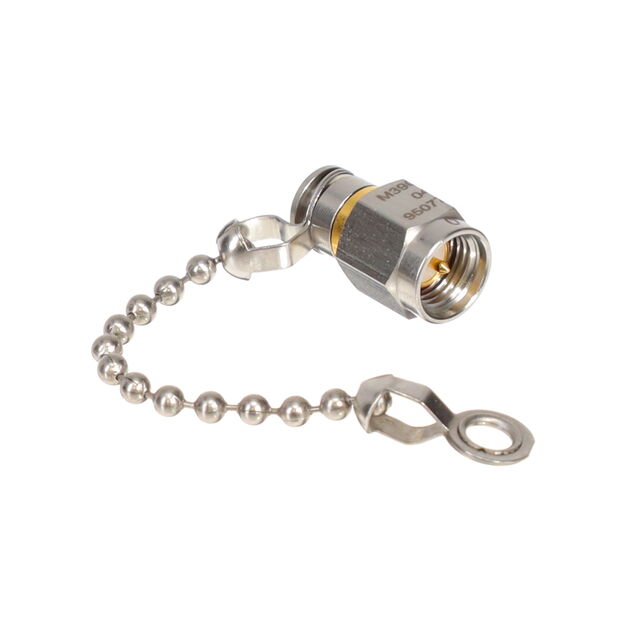

McGill Microwave Systems M39030/3-04S	Polytetrafluoroethylene (PTFE)	Stainless Steel	18 GHz	Beryllium Copper	Gold	SMA	Gold	Cap Free Hanging	Male Pin Plug	50 Ohm	Chain

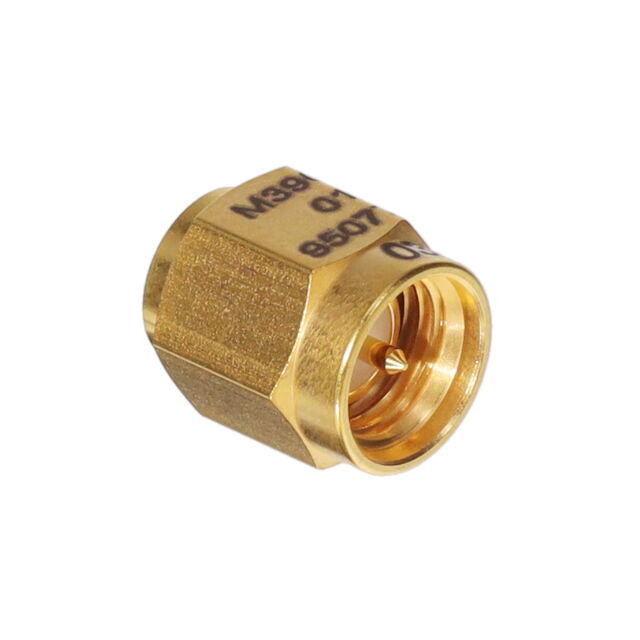

McGill Microwave Systems M39030/3-01N	Polytetrafluoroethylene (PTFE)	Stainless Steel	18 GHz	Beryllium Copper	Gold	SMA	Gold	Cap Free Hanging	Male Pin Plug	50 Ohm
McGill Microwave Systems M39030/3-06S	Polytetrafluoroethylene (PTFE)	Stainless Steel	18 GHz	Beryllium Copper	Gold	SMA	Gold	Cap Free Hanging	Female Socket Jack	50 Ohm
McGill Microwave Systems M39030/3-06N	Polytetrafluoroethylene (PTFE)	Stainless Steel	18 GHz	Beryllium Copper	Gold	SMA	Gold	Cap Free Hanging	Female Socket Jack	50 Ohm
McGill Microwave Systems M39030/3-12S	Polytetrafluoroethylene (PTFE)	Stainless Steel	18 GHz	Beryllium Copper	Gold	SMA	Gold	Cap Free Hanging	Male Pin Plug	50 Ohm

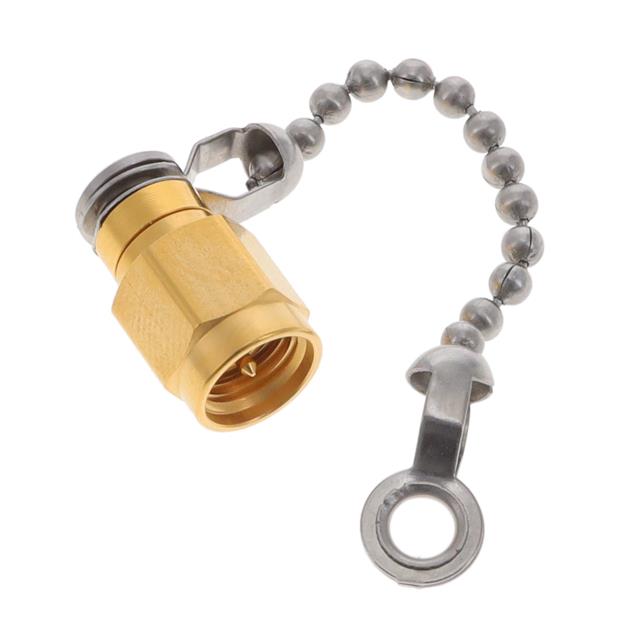

McGill Microwave Systems M39030/3-03N	Polytetrafluoroethylene (PTFE)	Stainless Steel	18 GHz	Beryllium Copper	Gold	SMA	Gold	Cap Free Hanging	Male Pin Plug	50 Ohm	Chain
