3659 Series

Catalog

CBL RIBN 25COND 0.05 BLACK 5'

Part	Ratings	Number of Conductors	Cable Type	Jacket (Insulation) Material	Pitch	Length	Shielding	Voltage	Operating Temperature (Min)	Operating Temperature (Max)	Wire Gauge	Features	Jacket Color	Conductor Strand Count	Conductor Strand Gauge	Ribbon Width	First Conductor Mark	Insulation Resistance	Conductor Material	Length

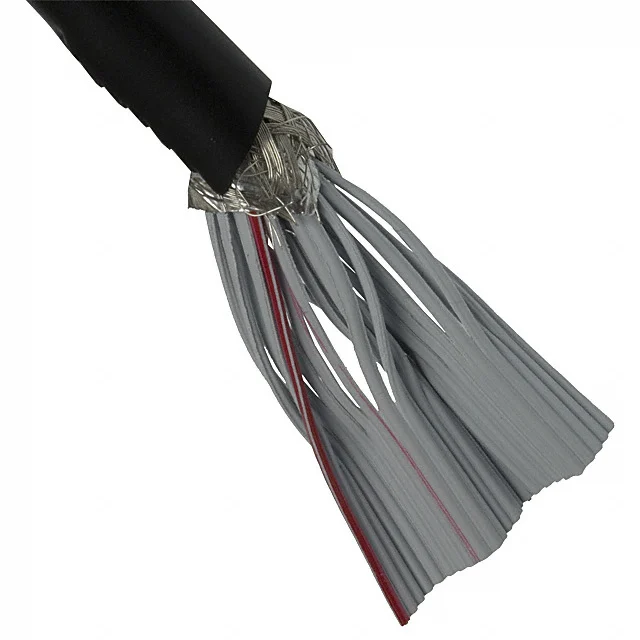

3M Electronic Specialty 3659/25 100SF	20267 Style UL	25	Flat Cable Round Jacket	Poly-Vinyl Chloride (PVC)	0.05 in	5 ft 10 ft 12 in 25 ft 50 ft 100 ft	Shielded	300 V	-20 °C	105 °C	28 AWG	Splice Free Zippable	Black	7 Strands	36 AWG	1.2 in	Red	10 GOhm	Copper Tinned
3M Electronic Specialty 3659/37 100SF	20267 Style UL	37	Flat Cable Round Jacket	Poly-Vinyl Chloride (PVC)	0.05 in	5 ft 10 ft 12 in 25 ft 50 ft 100 ft	Shielded	300 V	-20 °C	105 °C	28 AWG	Splice Free Zippable	Black	7 Strands	36 AWG	1.8 in	Red	10 GOhm	Copper Tinned
3M Electronic Specialty 3659/16 100	20267 Style UL	16	Flat Cable Round Jacket	Poly-Vinyl Chloride (PVC)	0.05 in	5 ft 10 ft 12 in 25 ft 50 ft 100 ft	Shielded	300 V	-20 °C	105 °C	28 AWG	Zippable	Black	7 Strands	36 AWG	0.75 in	Red	10 GOhm	Copper Tinned

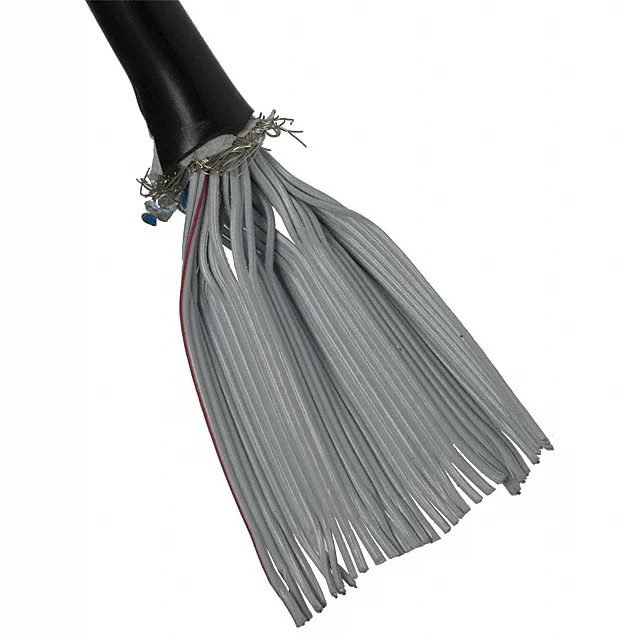

3M Electronic Specialty 3659/34 100SF	20267 Style UL	34	Flat Cable Round Jacket	Poly-Vinyl Chloride (PVC)	0.05 in	5 ft 10 ft 12 in 25 ft 50 ft 100 ft	Shielded	300 V	-20 °C	105 °C	28 AWG	Splice Free Zippable	Black	7 Strands	36 AWG	1.65 in	Red	10 GOhm	Copper Tinned
3M Electronic Specialty 3659/37SF 300	20267 Style UL	37	Flat Cable Round Jacket	Poly-Vinyl Chloride (PVC)	0.05 in	5 ft 10 ft 12 in 25 ft 50 ft 100 ft 300 ft	Shielded	300 V	-20 °C	105 °C	28 AWG	Zippable	Black	7 Strands	36 AWG	1.8 in	Red	10 GOhm	Copper Tinned	Enter Number of Feet in Order Quantity
3M Electronic Specialty 3659/50 1000	20267 Style UL	50	Flat Cable Round Jacket	Poly-Vinyl Chloride (PVC)	0.05 in	1000 ft	Shielded	300 V	-20 °C	105 °C	28 AWG	Zippable	Black	7 Strands	36 AWG	2.45 in	Red	10 GOhm	Copper Tinned
3M Electronic Specialty 3659/20 300SF	20267 Style UL	20	Flat Cable Round Jacket	Poly-Vinyl Chloride (PVC)	0.05 in	300 ft	Shielded	300 V	-20 °C	105 °C	28 AWG	Splice Free Zippable	Black	7 Strands	36 AWG	0.95 in	Red	10 GOhm	Copper Tinned	Enter Number of Feet in Order Quantity
3M Electronic Specialty 3659/10 100	20267 Style UL	10	Flat Cable Round Jacket	Poly-Vinyl Chloride (PVC)	0.05 in	5 ft 10 ft 12 in 25 ft 50 ft 100 ft	Shielded	300 V	-20 °C	105 °C	28 AWG	Zippable	Black	7 Strands	36 AWG	0.45 in	Red	10 GOhm	Copper Tinned
3M Electronic Specialty 3659/16 1000	20267 Style UL	16	Flat Cable Round Jacket	Poly-Vinyl Chloride (PVC)	0.05 in	5 ft 10 ft 12 in 25 ft 50 ft 100 ft 500 ft 1000 ft	Shielded	300 V	-20 °C	105 °C	28 AWG	Zippable	Black	7 Strands	36 AWG	0.75 in	Red	10 GOhm	Copper Tinned
3M Electronic Specialty 3659/50 500SF	20267 Style UL	50	Flat Cable Round Jacket	Poly-Vinyl Chloride (PVC)	0.05 in	500 ft	Shielded	300 V	-20 °C	105 °C	28 AWG	Splice Free Zippable	Black	7 Strands	36 AWG	2.45 in	Red	10 GOhm	Copper Tinned
