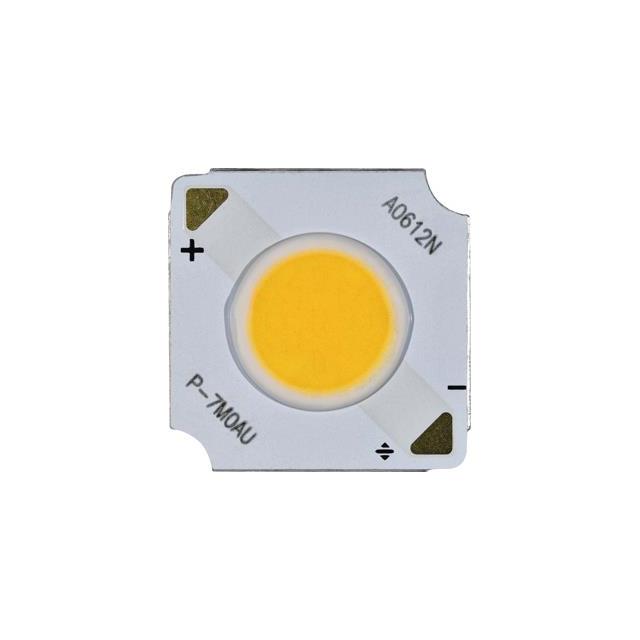

CHA0612 Series

Catalog

XLAMP CHA LED WHITE PRO9

...

Part	Viewing Angle	CCT (K)	Size / Dimension Width	Size / Dimension Length	Height	Temperature - Test	Light Emitting Surface (LES) Diameter	Configuration	CRI (Color Rendering Index)	Current - Test	Color	Lens Type	Current - Max	Type	Voltage - Forward (Vf) (Typ)	Luminous Flux (Typical)	Lumens/Watt	CCT Description
CreeLED, Inc. CHA0612-R160-00PF0U0A31Q	114 °	3100 K	13.5 mm	13.5 mm	1.5 mm	85 °C	6 mm	Square	90	700 mA	Warm White	Flat	1.2 A	Chip On Board (COB)	18 V
CreeLED, Inc. CHA0612-R160-00PN0U0A40H	114 °	4000 K	13.5 mm	13.5 mm	1.5 mm	85 °C	6 mm	Square	90	350 mA	Neutral White	Flat	600 mA	Chip On Board (COB)	36 V
CreeLED, Inc. CHA0612-R160-00PF0U0A30H	114 °	3000 K	13.5 mm	13.5 mm	1.5 mm	85 °C	6 mm	Square	90	700 mA	Warm White	Flat	1.2 A	Chip On Board (COB)	18 V
CreeLED, Inc. CHA0612-R160-00PN0U0A35G	114 °	3500 K	13.5 mm	13.5 mm	1.5 mm	85 °C	6 mm	Square	90	350 mA	Warm White	Flat	600 mA	Chip On Board (COB)	36 V
CreeLED, Inc. CHA0612-R160-00PF0U0A35G	114 °	3500 K	13.5 mm	13.5 mm	1.5 mm	85 °C	6 mm	Square	90	700 mA	Warm White	Flat	1.2 A	Chip On Board (COB)	18 V
CreeLED, Inc. CHA0612-0000-000F0Z0A30H	114 °	3000 K	13.5 mm	13.5 mm	1.5 mm	85 °C	6 mm	Square	95	700 mA	Warm White	Flat	1.2 A	Chip On Board (COB)	18 V	1207 lm	96 lm/W	2-Step MacAdam Ellipse
CreeLED, Inc. CHA0612-0000-000F0U0A31Q	114 °	3100 K	13.5 mm	13.5 mm	1.5 mm	85 °C	6 mm	Square	90	700 mA	Warm White	Flat	1.2 A	Chip On Board (COB)	18 V	1306 lm	104 lm/W	3-Step MacAdam Ellipse
CreeLED, Inc. CHA0612-0000-000F0U0A30U	114 °	3000 K	13.5 mm	13.5 mm	1.5 mm	85 °C	6 mm	Square	90	700 mA	Warm White	Flat	1.2 A	Chip On Board (COB)	18 V	1286 lm	102 lm/W	3-Step MacAdam Ellipse
CreeLED, Inc. CHA0612-0000-000F0U0A30H	114 °	3000 K	13.5 mm	13.5 mm	1.5 mm	85 °C	6 mm	Square	90	700 mA	Warm White	Flat	1.2 A	Chip On Board (COB)	18 V	1381 lm	110 lm/W	2-Step MacAdam Ellipse
CreeLED, Inc. CHA0612-0000-000F0U0A30G	114 °	3000 K	13.5 mm	13.5 mm	1.5 mm	85 °C	6 mm	Square	90	700 mA	Warm White	Flat	1.2 A	Chip On Board (COB)	18 V	1381 lm	110 lm/W	3-Step MacAdam Ellipse
