FA1-NDSJ Series

Catalog

CONN FAKRA JACK STR 50 OHM CRIMP

Part	Connector Style	Mounting Type	Connector Type	Features	Fastening Type	Center Contact Material	Housing Color	Number of Ports	Impedance	Contact Termination	Frequency - Max	Cable Group	Shield Termination	Insertion Loss	Includes	Includes Total Count	Body Material	Center Contact Plating	Operating Temperature (Max)	Operating Temperature (Min)	Mating Cycles	Body Finish	Dielectric Material
McGill Microwave Systems FA1-NDSJ-C04-0	Fakra SMB	Free Hanging (In-Line)	Female Socket Jack	Code D	Latch Lock	Beryllium Copper	Claret Violet	1	50 Ohm	Crimp	6000 MHz	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	Crimp	0.3 dB	Connector Contact Ferrule Housing Locking Clip	5 pcs	Brass	Gold	100 °C	-40 °C	100 cycles	Nickel	Polytetrafluoroethylene (PTFE)
McGill Microwave Systems FA1-NDSJ-C04-6	Fakra SMB	Free Hanging (In-Line)	Female Socket Jack	Code D	Latch Lock	Beryllium Copper	Claret Violet	1	50 Ohm	Crimp	6000 MHz	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	Crimp	0.3 dB	Connector Contact Ferrule Housing Locking Clip	5 pcs	Brass	Gold	100 °C	-40 °C	100 cycles	Nickel	Polytetrafluoroethylene (PTFE)

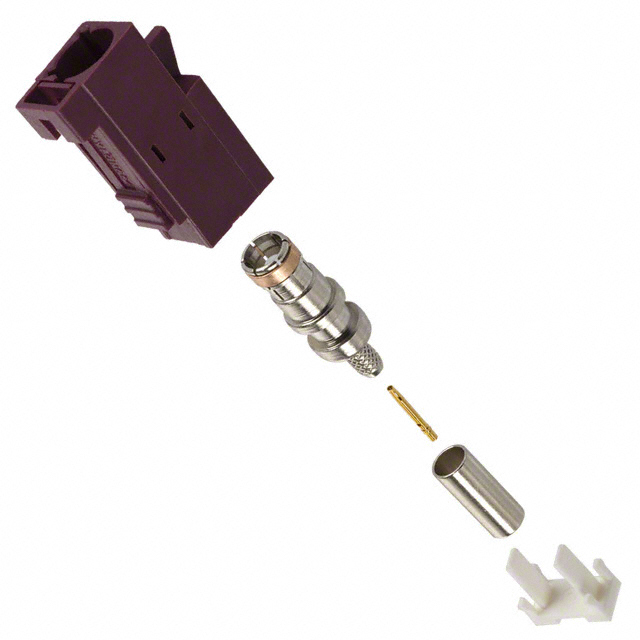

McGill Microwave Systems FA1-NDSJ-C01-6	Fakra SMB	Free Hanging (In-Line)	Female Socket Jack	Code D	Latch Lock	Beryllium Copper	Claret Violet	1	50 Ohm	Crimp	6000 MHz	188 188A 316 LMR-100 M17/119-RG174 RG-174	Crimp	0.3 dB	Connector Contact Ferrule Housing Locking Clip	5 pcs	Brass	Gold	100 °C	-40 °C	100 cycles	Nickel	Polytetrafluoroethylene (PTFE)
McGill Microwave Systems FA1-NDSJ-C01-0	Fakra SMB	Free Hanging (In-Line)	Female Socket Jack	Code D	Latch Lock	Beryllium Copper	Claret Violet	1	50 Ohm	Crimp	6000 MHz	188 188A 316 LMR-100 M17/119-RG174 RG-174	Crimp	0.3 dB	Connector Contact Ferrule Housing Locking Clip	5 pcs	Brass	Gold	100 °C	-40 °C	100 cycles	Nickel	Polytetrafluoroethylene (PTFE)
